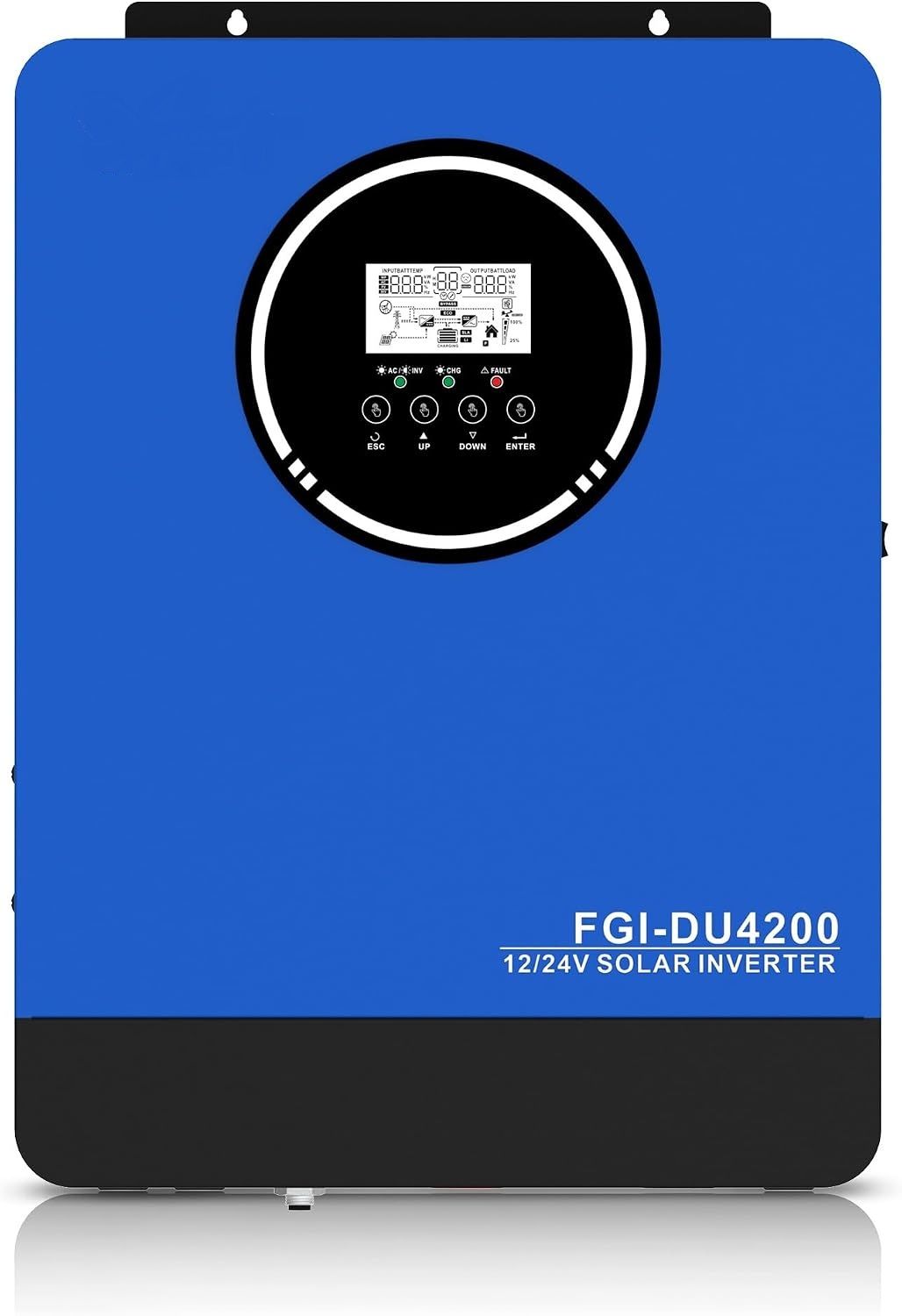

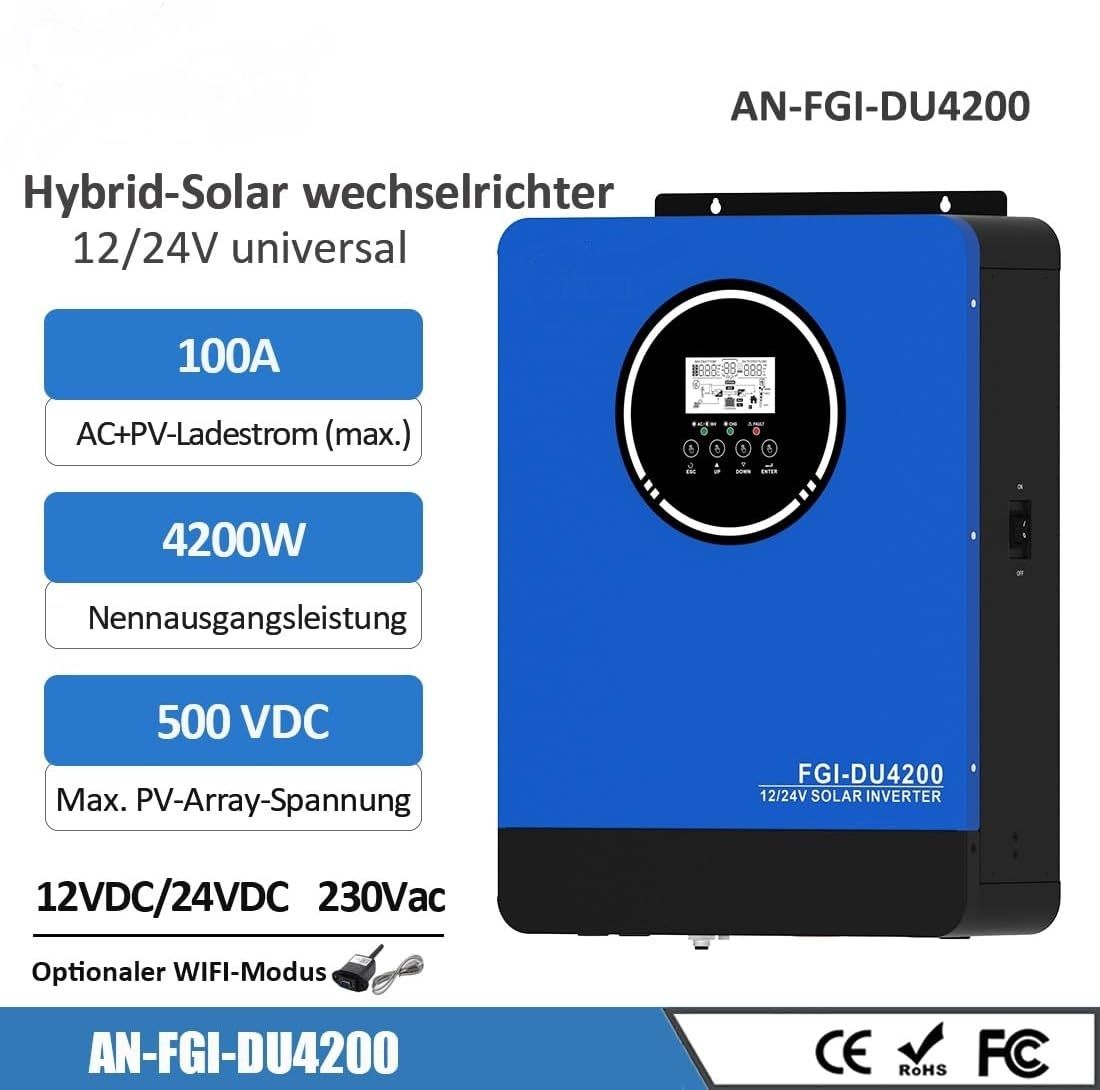

4.2kW Eco Solar Hybrid Inverter – 24V, 100A MPPT, Pure Sine Wave, 230V AC

Enjoy reliable and flexible power management with the 4.2kW Solar Hybrid Inverter, designed to support home solar power systems, battery storage, and mains or generator backup. Combining solar charging, battery management, and AC power conversion in one unit, this inverter helps you make better use of solar energy while maintaining a dependable power supply.

Featuring a built-in 100A MPPT solar charge controller, the inverter efficiently manages power from compatible solar panels and converts DC electricity into 220V/230V AC output for supported household appliances and electrical equipment.

The intelligent battery detection system supports 12V and 24V battery configurations, automatically adjusting the available rated power according to the battery voltage. With a maximum rated output of 4,200W in 24V mode, it is suitable for a range of residential solar applications when correctly configured.

A clear LCD display provides real-time operating information, system status, and error codes. Adjustable charging priorities and multiple operating modes allow you to configure the system according to your energy needs, while optional Wi-Fi/GPRS monitoring enables remote supervision with a compatible, separately purchased module.

Whether you're upgrading your home solar setup or looking for a flexible backup power solution, the Eco Solar Hybrid Inverter offers an integrated approach to solar energy conversion and battery charging.

Features & Benefits

• 4,200W Rated Power: Supports compatible household electrical loads when operating in the specified 24V configuration.
• 100A MPPT Solar Charge Controller: Helps optimise solar panel charging performance.

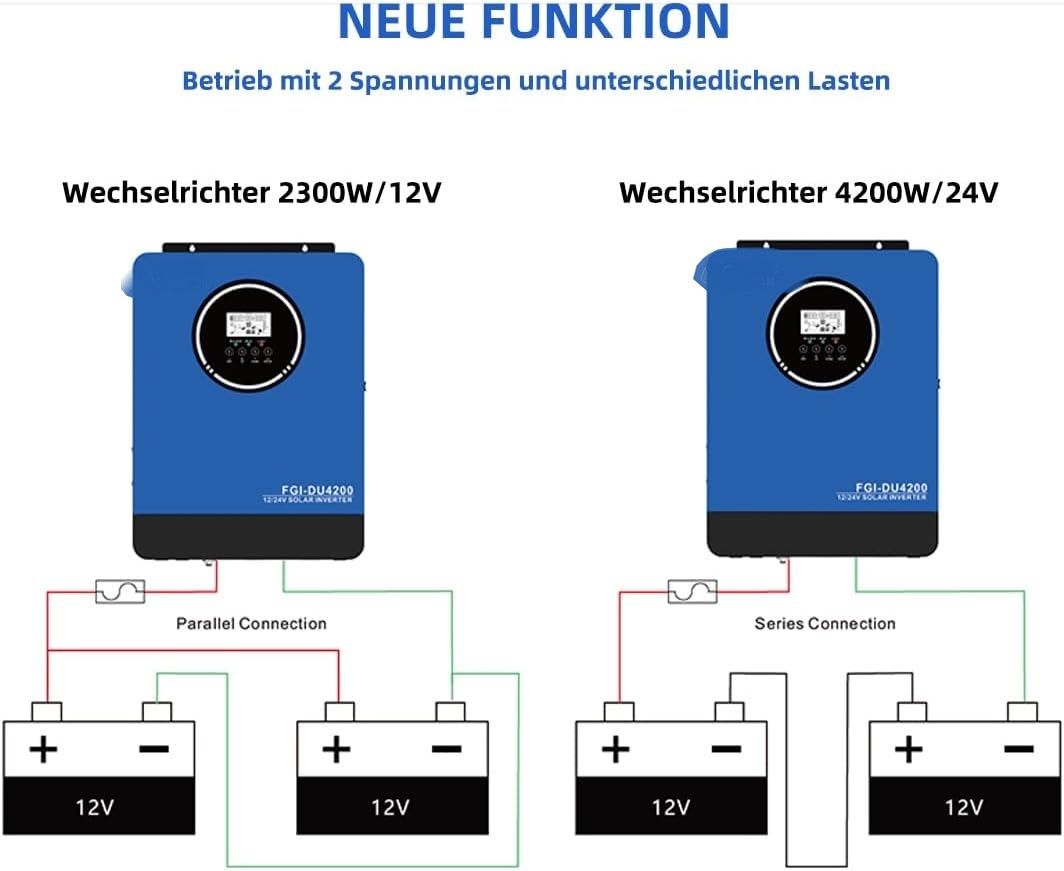

• 12V/24V Battery Detection: Automatically detects compatible battery voltage and adjusts rated power accordingly.
• Pure Sine Wave Output: Provides a smooth AC waveform suitable for compatible appliances and electronic equipment.
• 220V/230V AC Output: Designed for compatible household power systems.
• Wide Solar Input Range: Supports a photovoltaic array voltage range of 55–500V DC.
• Solar Array Compatibility: Supports a maximum PV array power of 4,000W, subject to the manufacturer's specifications.
• Intelligent Battery Management Interface: Built-in BMS interface supports communication with compatible battery management systems.

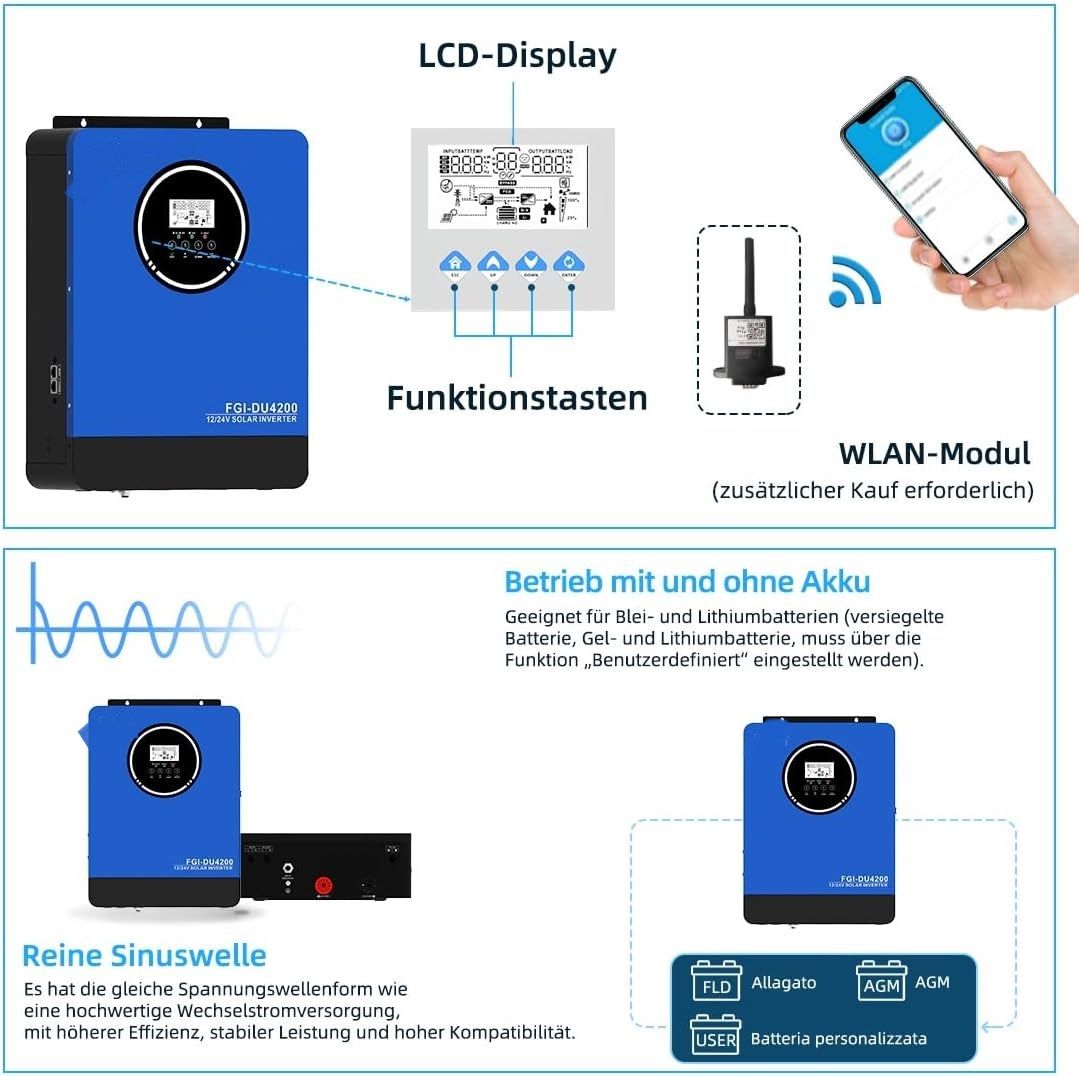

• LCD Display: Shows real-time operating information, system status, and fault codes.
• Flexible Charging Modes: Configure solar priority, solar-only, or hybrid solar-and-mains charging, where supported.
• Multiple Output Priorities: Choose between available solar, utility, and battery priority settings.
• Mains & Generator Compatibility: Supports compatible AC input sources for backup charging and power management.

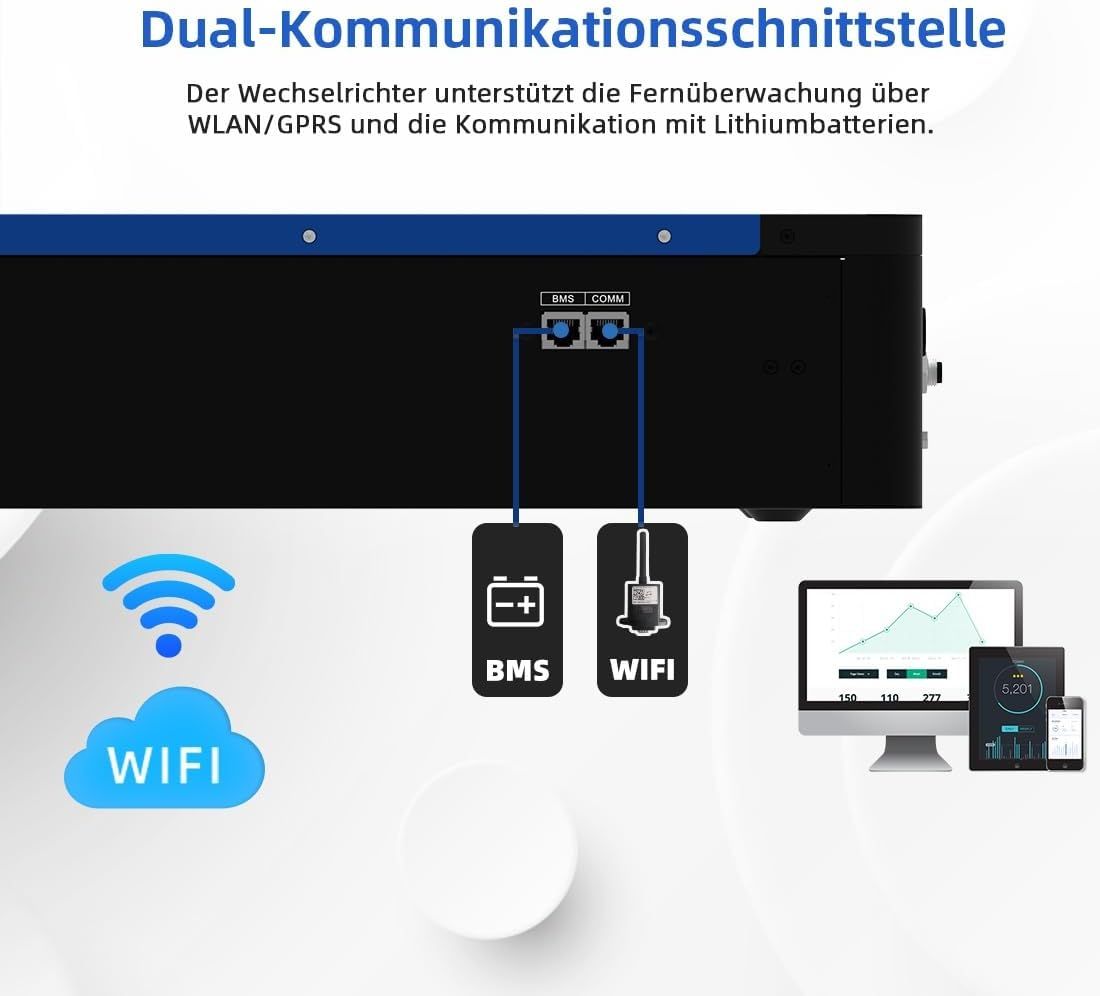

• Optional Remote Monitoring: Wi-Fi/GPRS monitoring is supported with a compatible, separately sold module.
• Compact Design: Weighs approximately 6.7kg for convenient installation by a qualified technician.

Technical Specifications

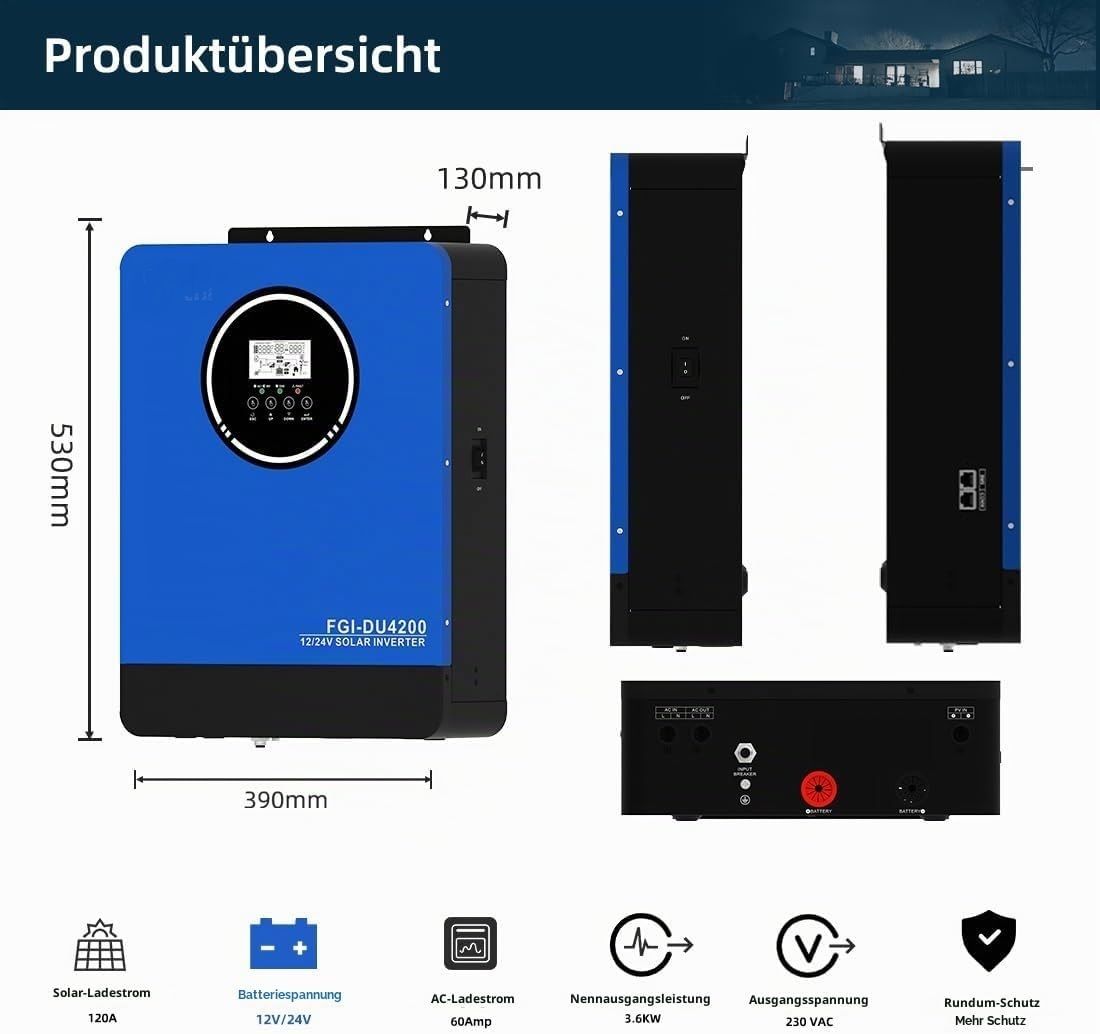

Product Dimensions & Weight

Package Contents

• 1 × 4.2kW Solar Hybrid Inverter
• 1 × User Manual
