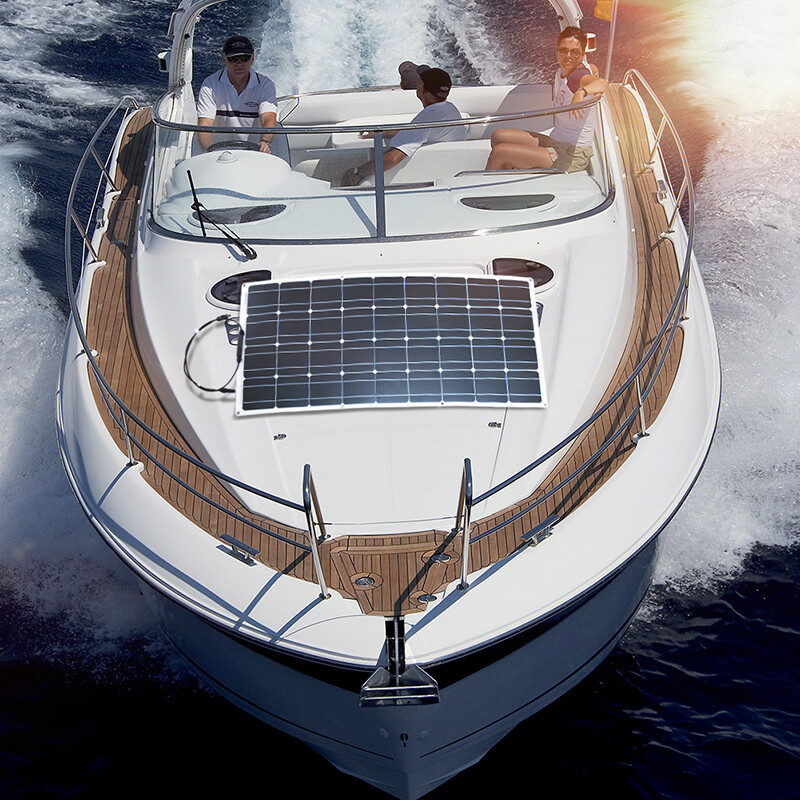

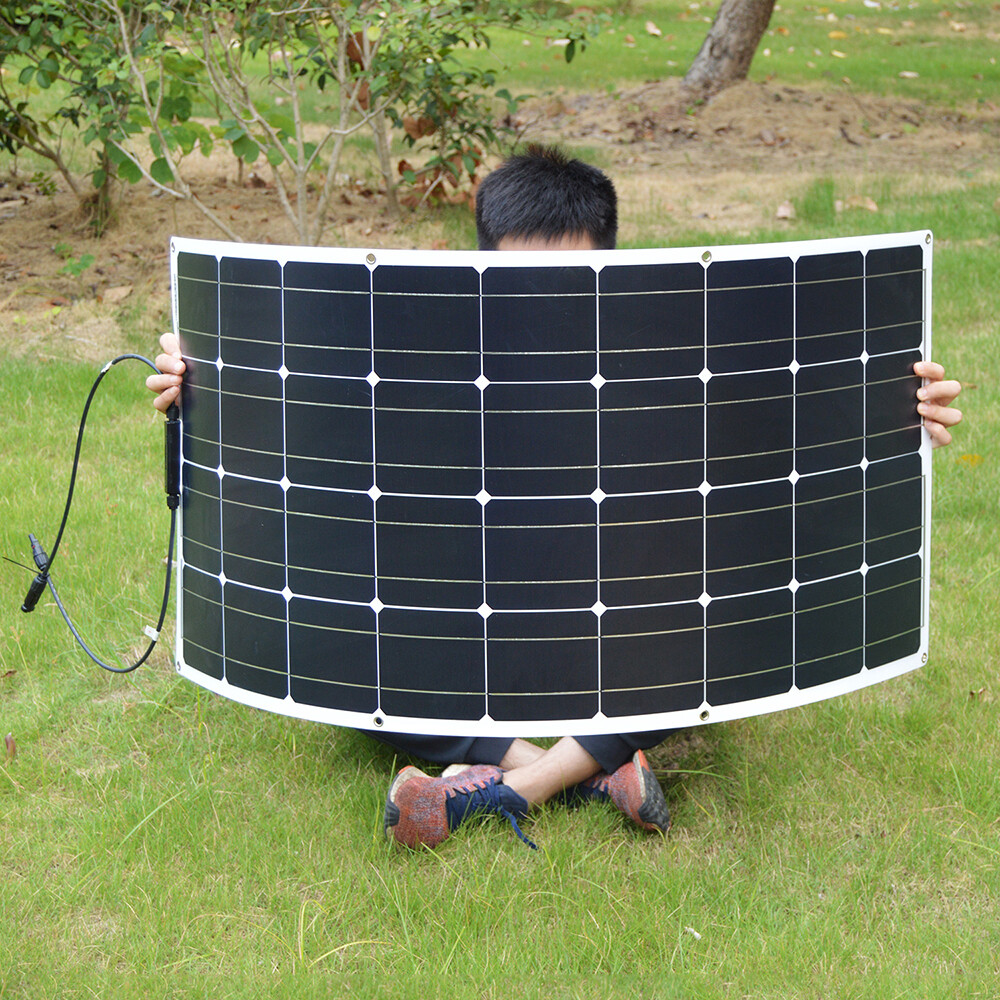

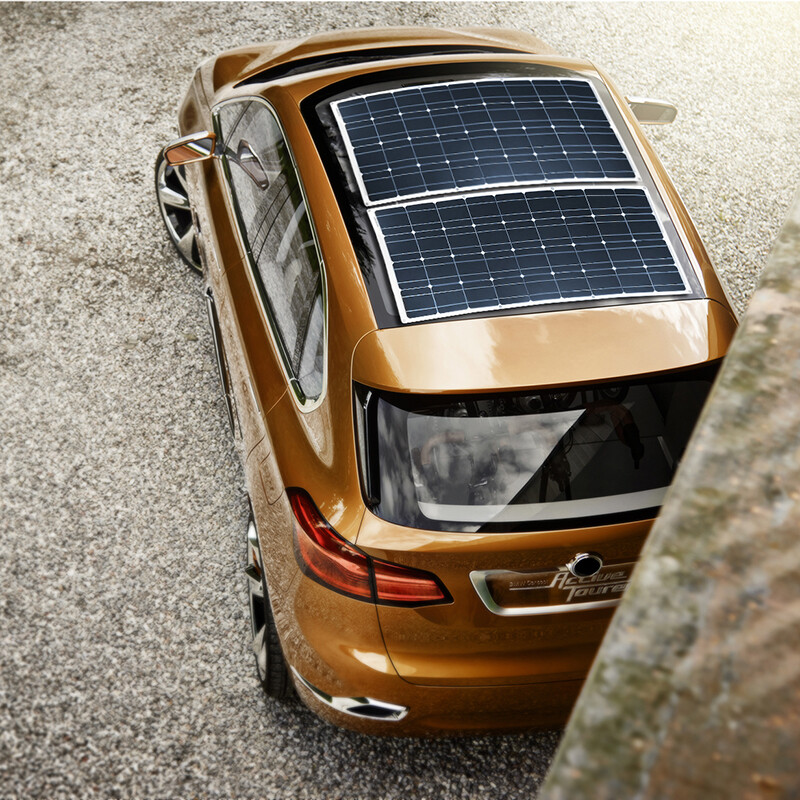

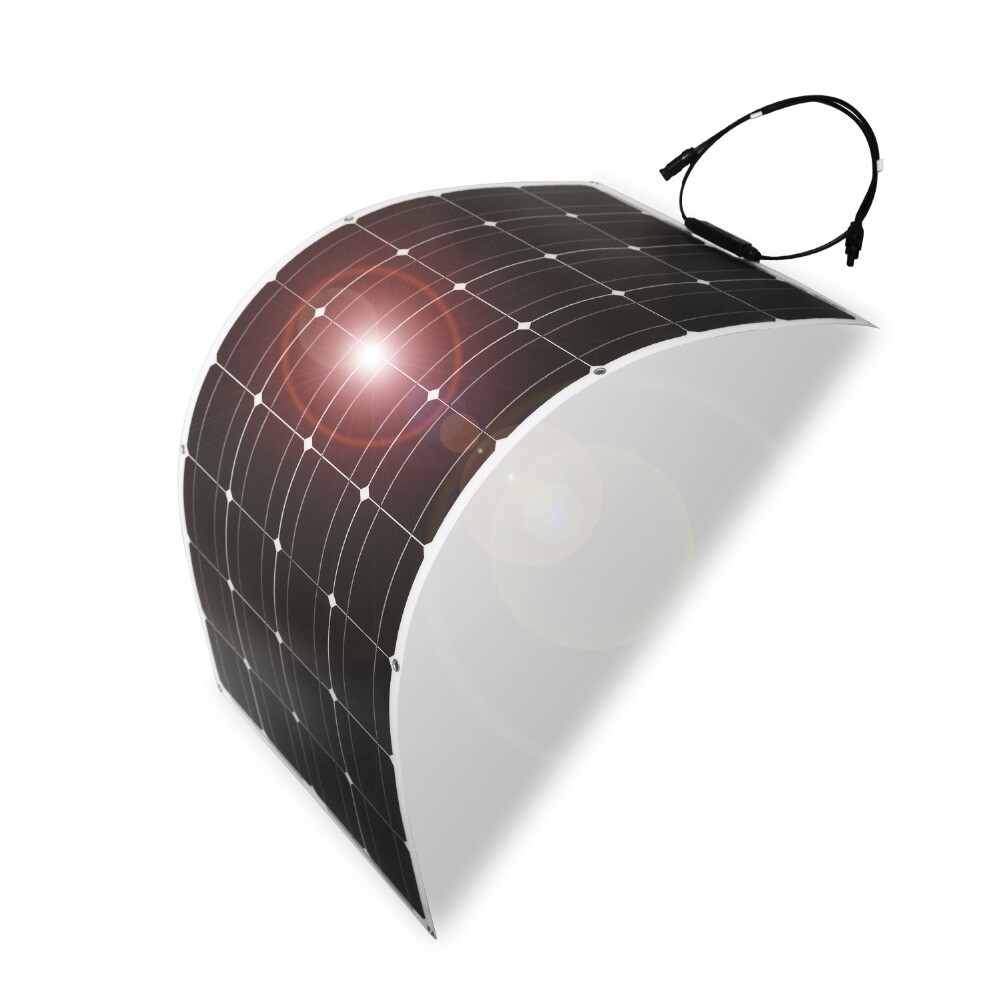

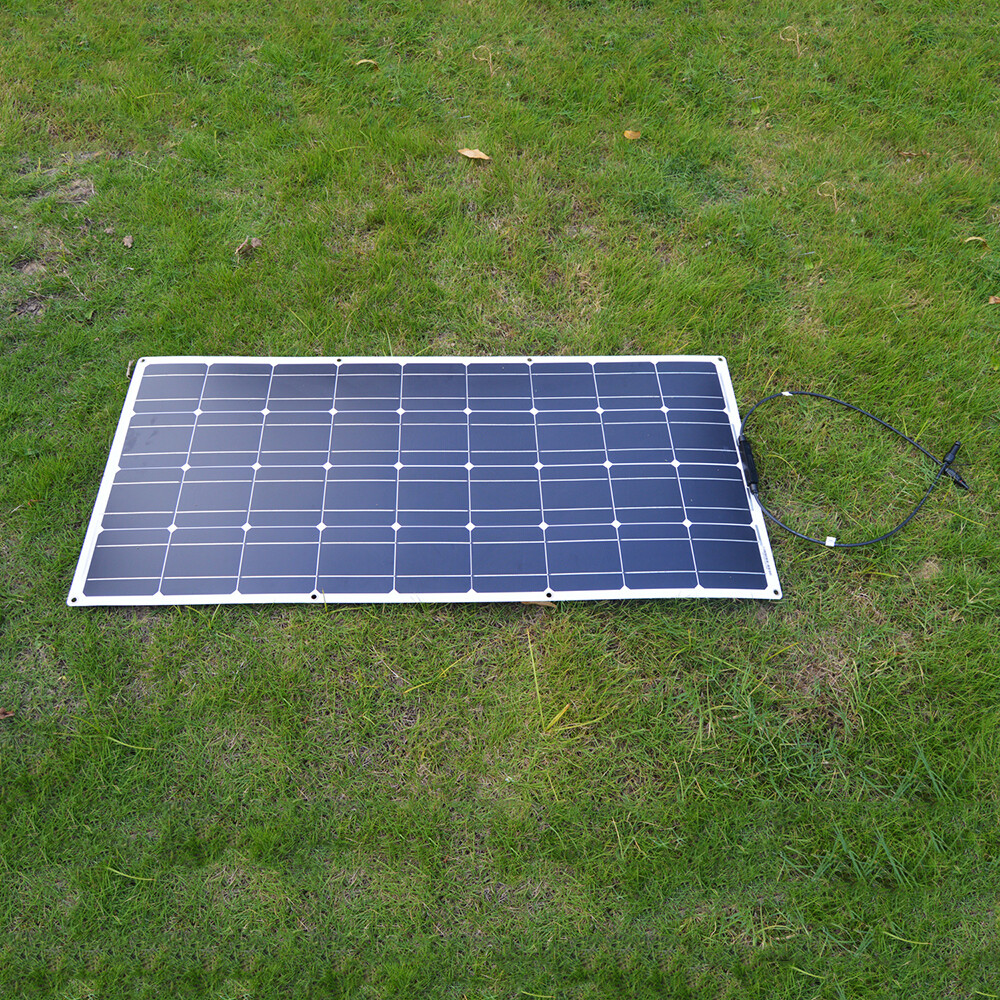

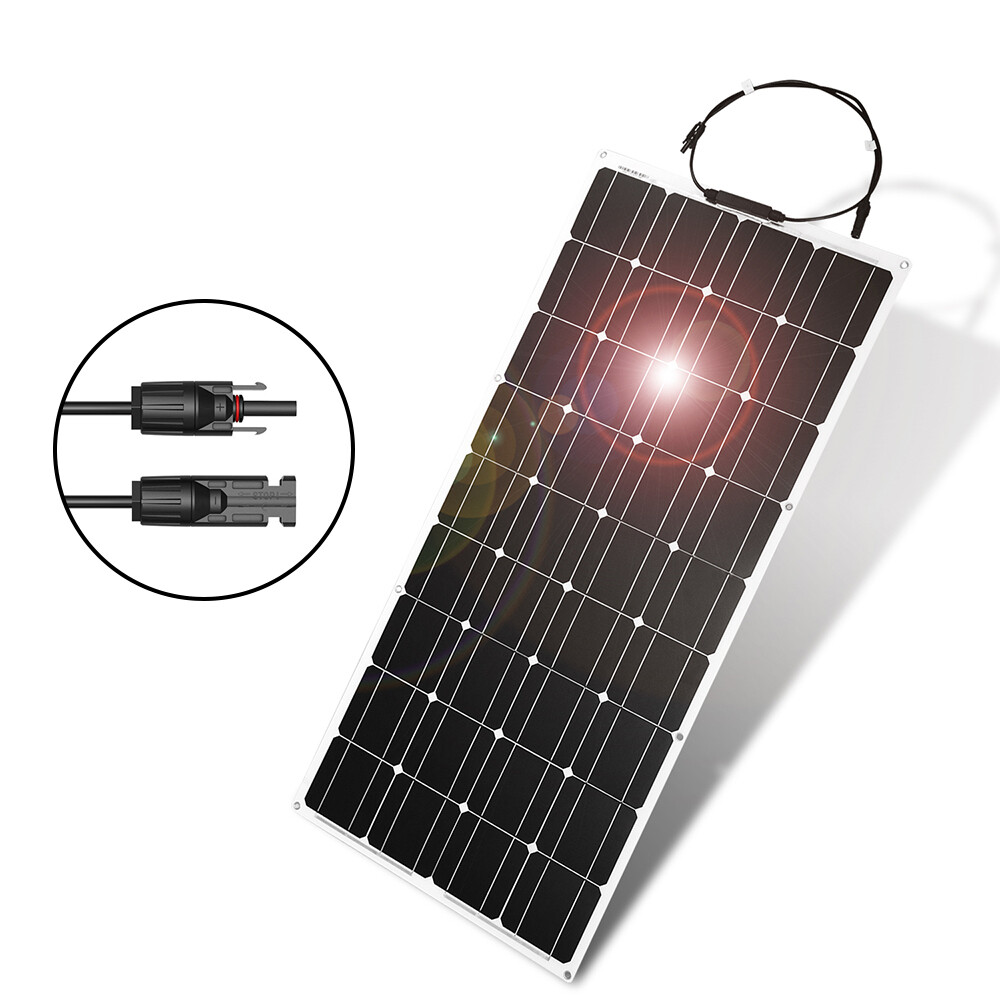

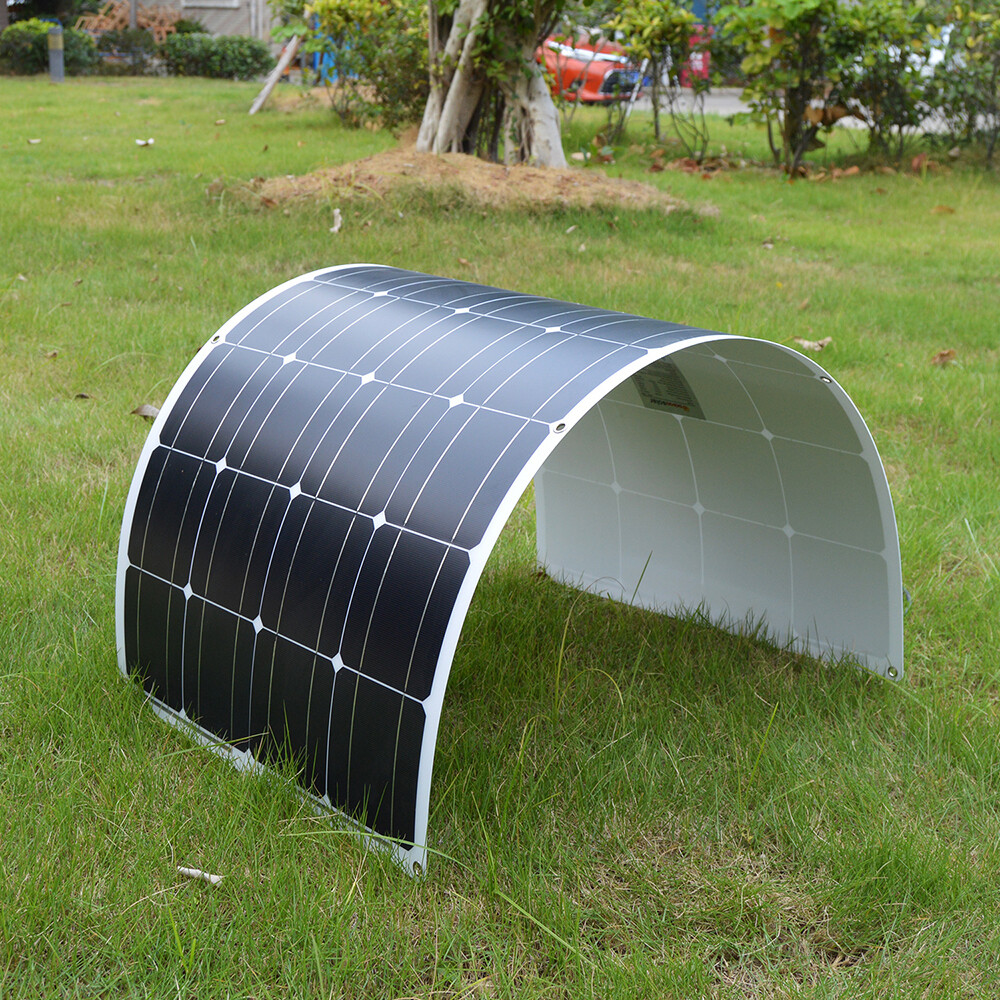

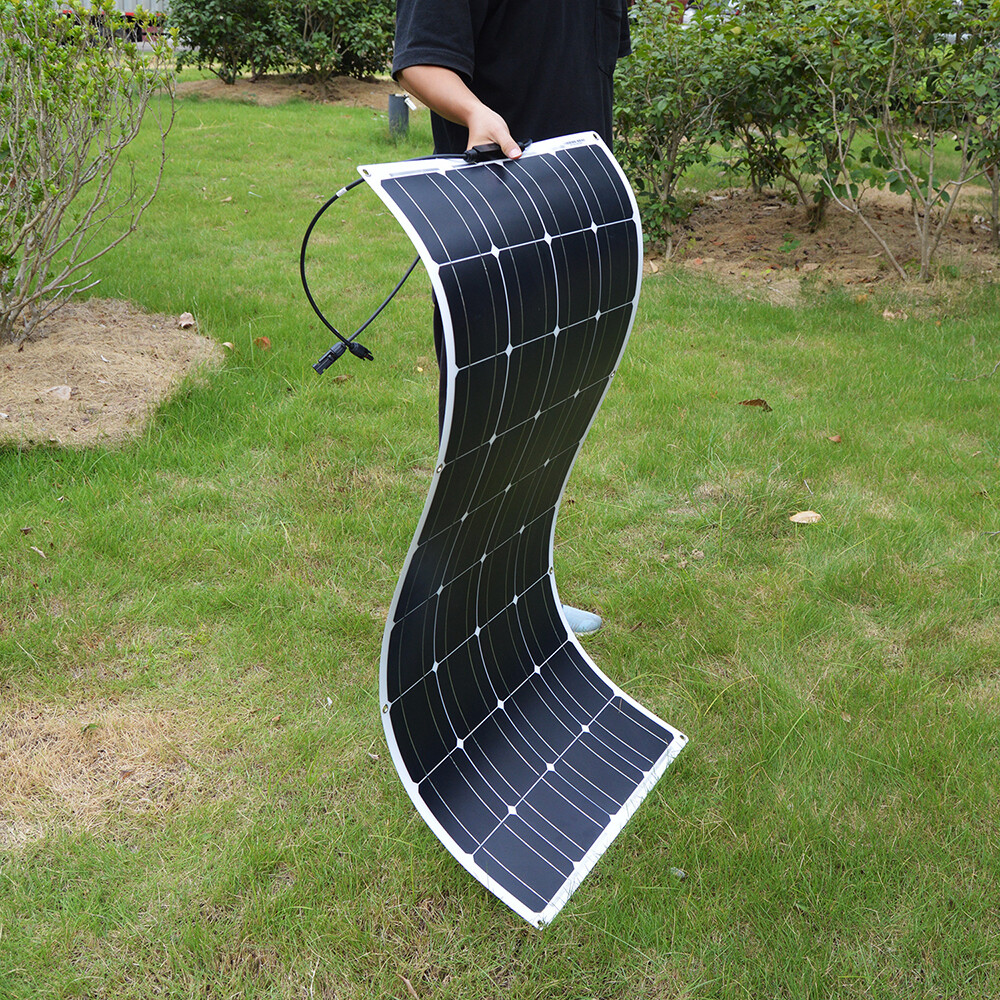

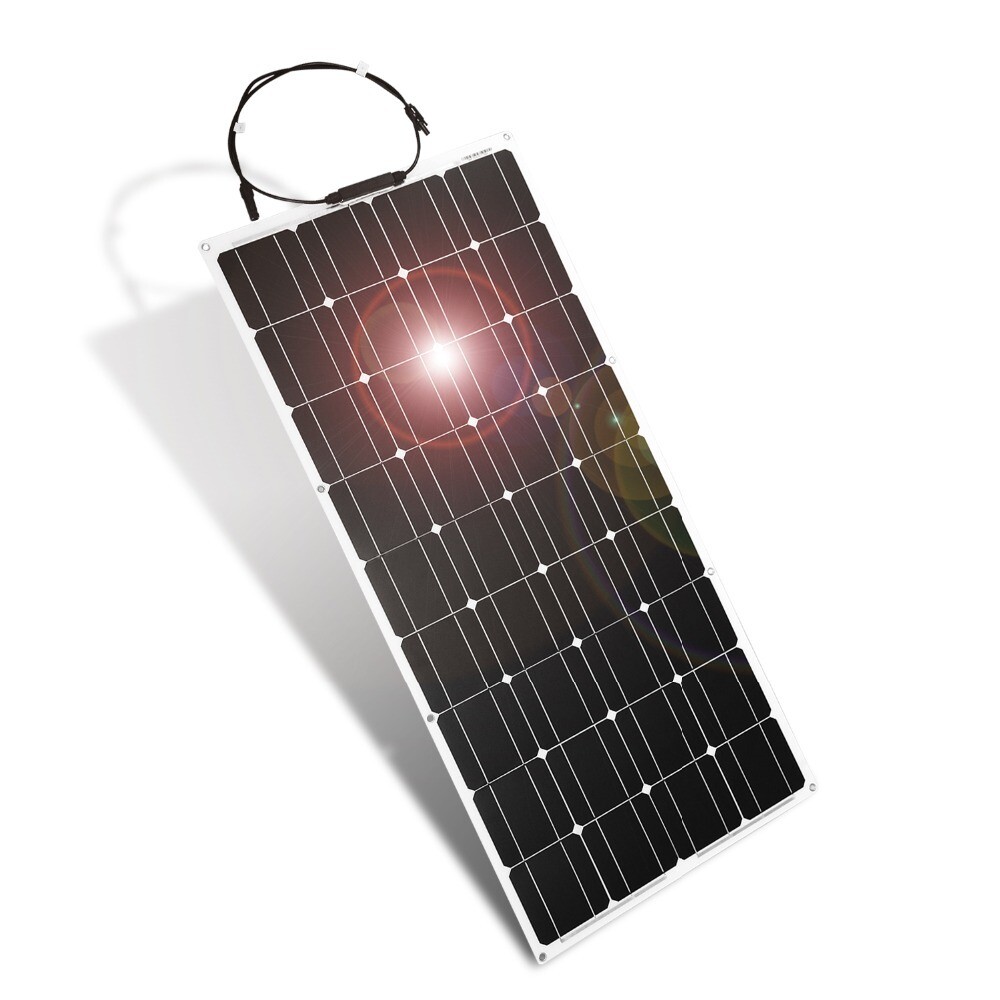

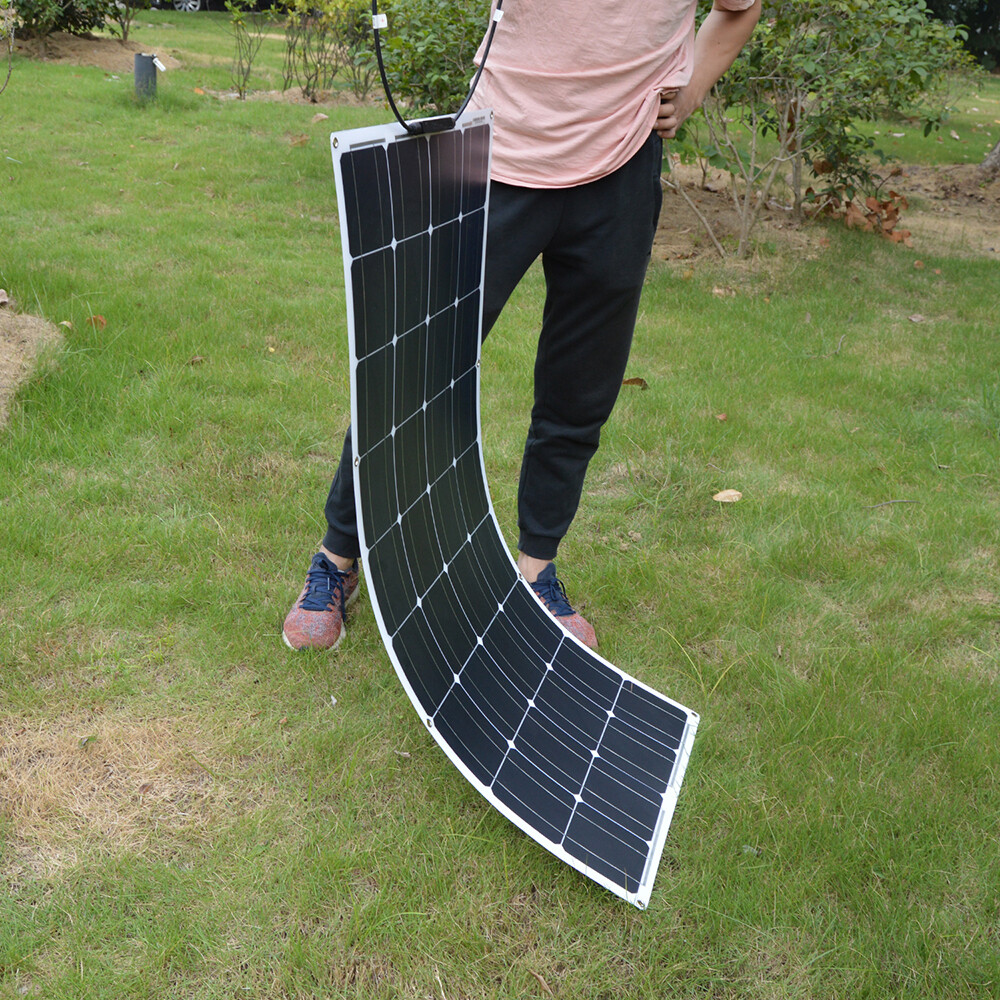

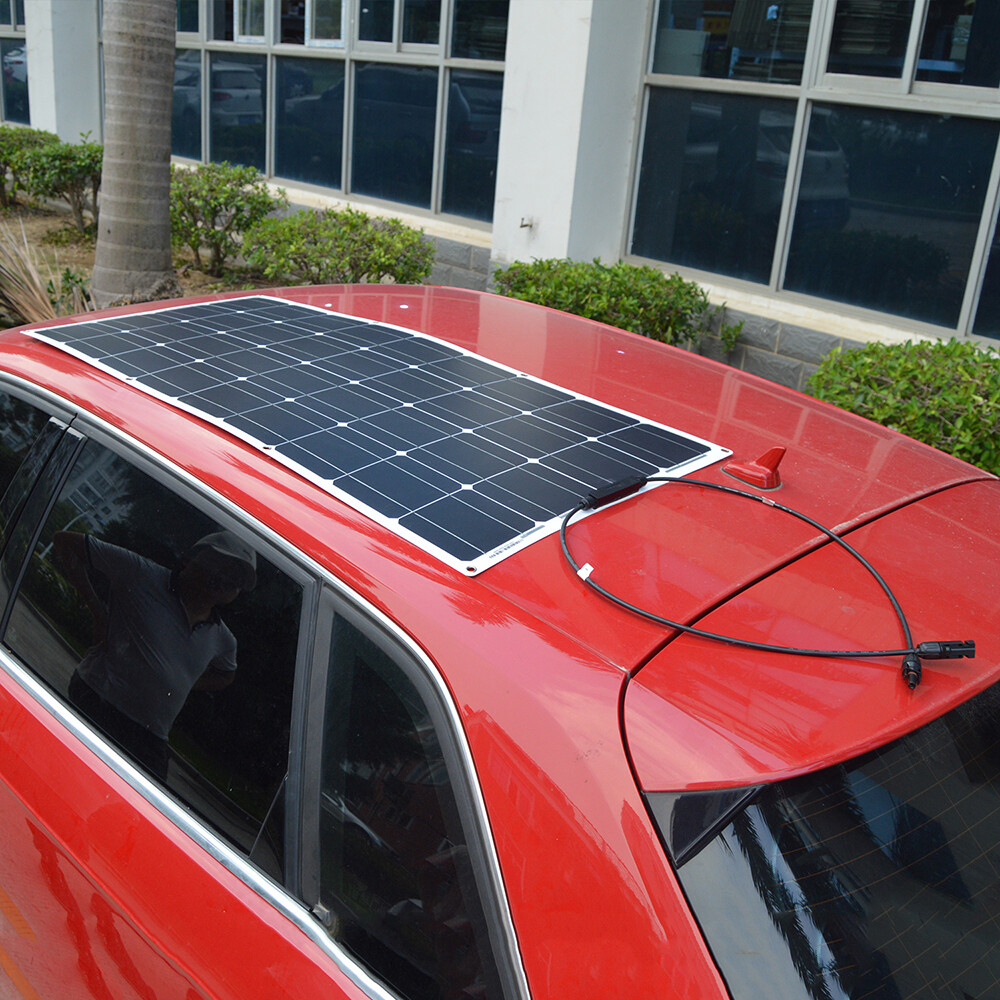

Easy to Use: Semi-flexible panels can be mounted on uneven surfaces such as RV roofs, boats, tents, vaulted roofs, etc. up to 30 degrees.

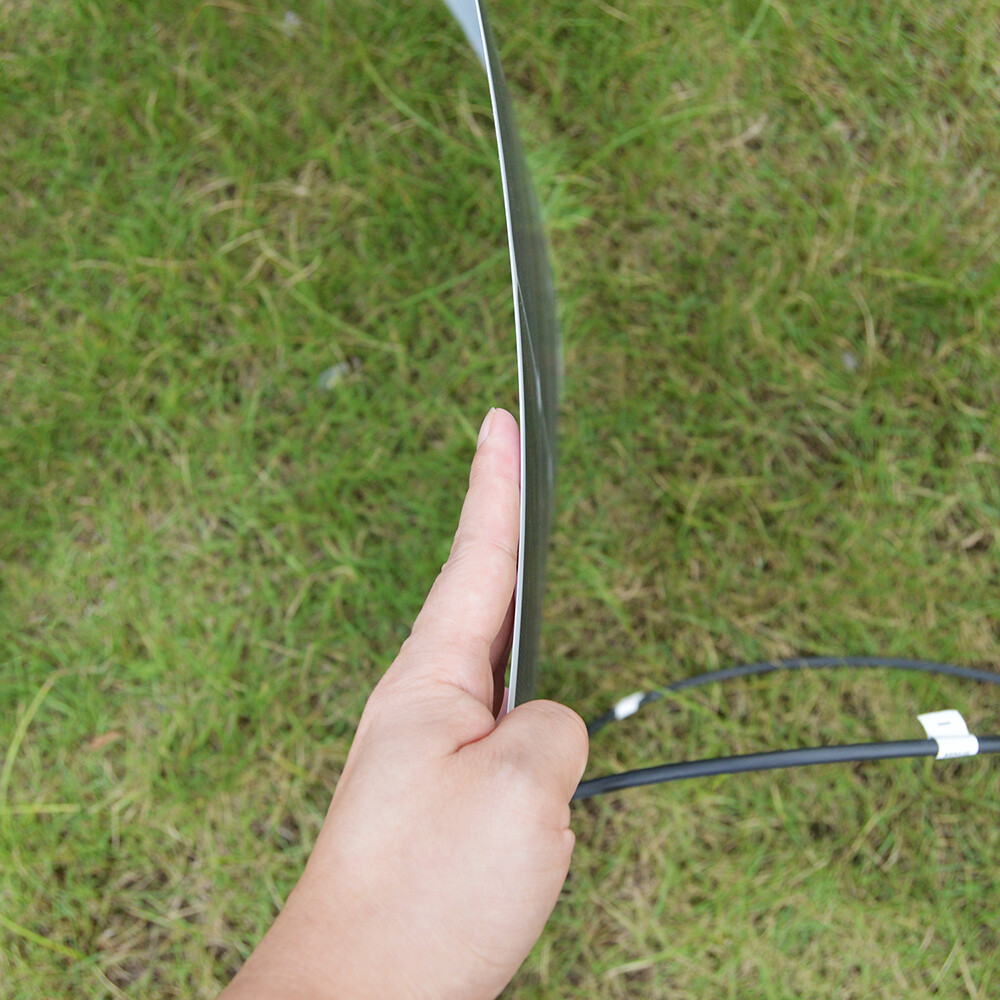

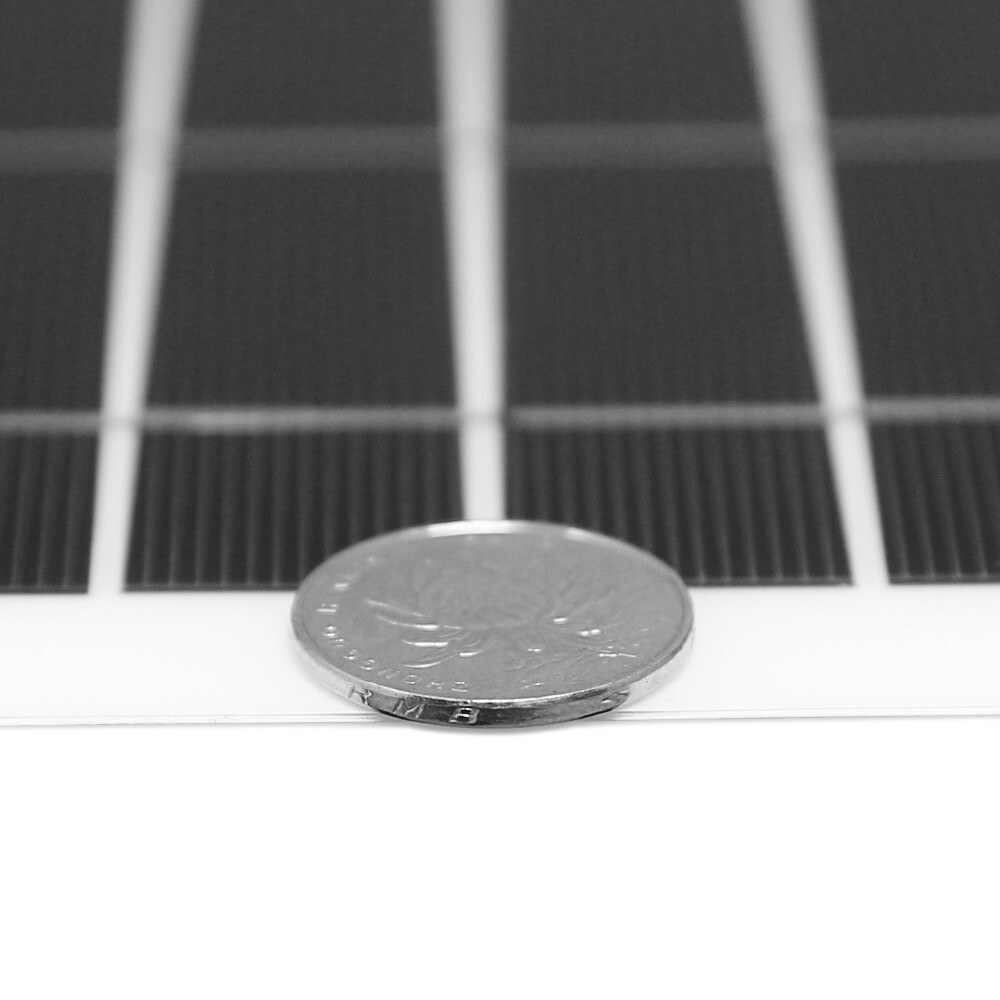

High efficiency, light weight: Only 1.5mm thick, weight 1.1kg, easy to hang, disassemble and carry.
Easy to install : Metal holes in the four corners of the product for screw fixing and assembly. Each solar panel has been tested many times.
Technical Details
Material: monocrystalline silicon
Maximum power (Pmax): 100W ± 3%
Maximum power voltage (Vmp):18V
Maximum power current (Imp):5.56A
Open circuit voltage (Voc): 22.50V
Short circuit current (Isc):5.81A
Nominal operating room temperature.
Maximum system voltage: DC1000V
Maximum series fuse: 15A
(The data above is based on the standard laboratory test environment)

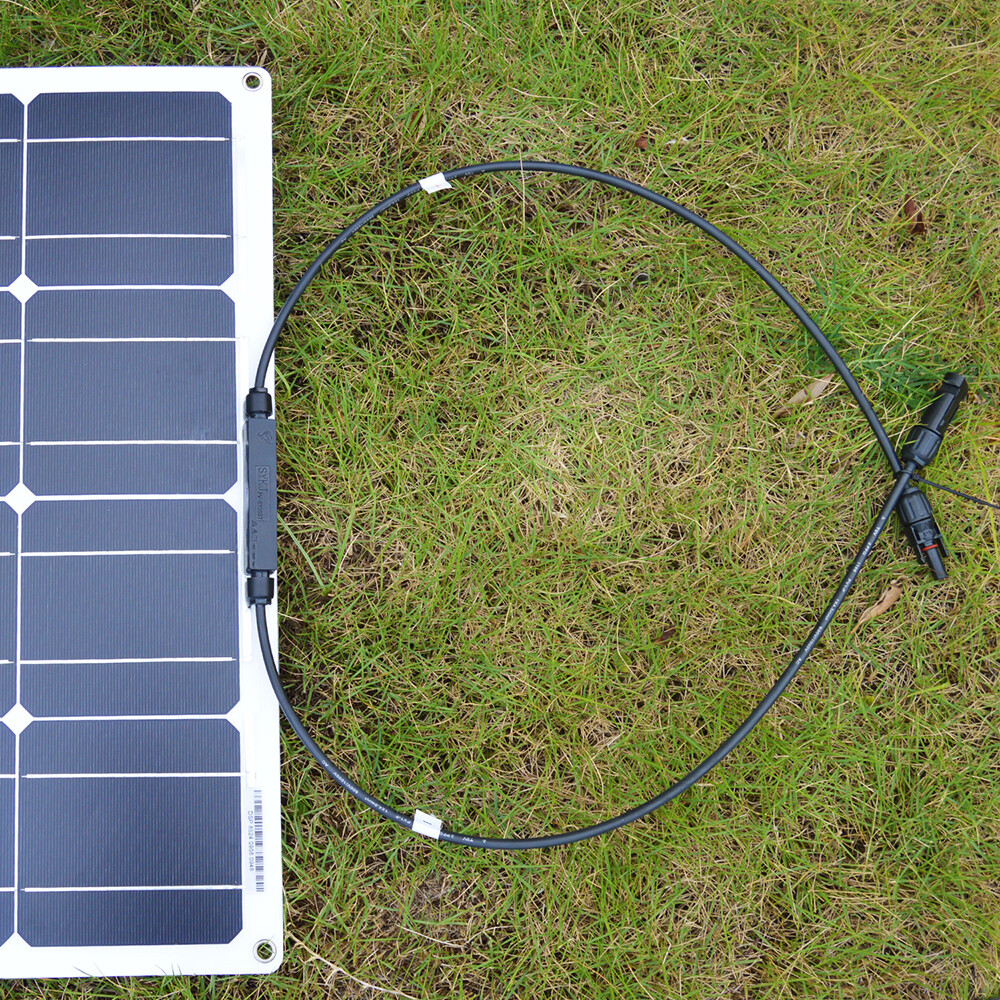

For field connections, use minimun No.12AWG copper wires insulated to a minimum of 90℃
Standard test conditions:
AM = 1.5 irradiance = 1000W/m2 Temp.= 25 ℃
Material structure:
1st floor: ETFE
2 floors: EVA film
3 floors: high efficiency solar cell
4 floors: EVA film
5 floors: Backsheet TPT

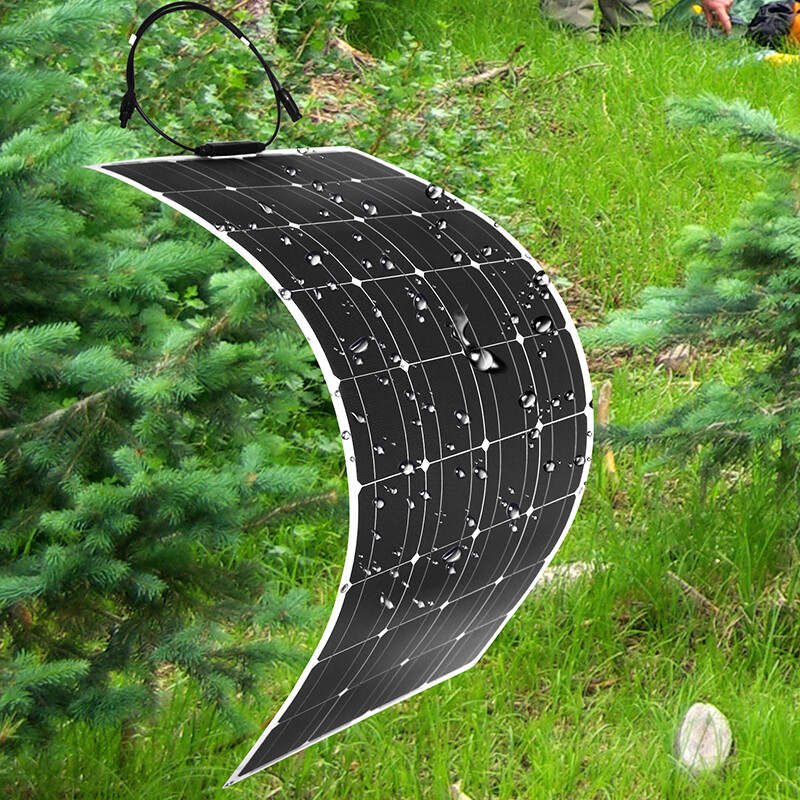

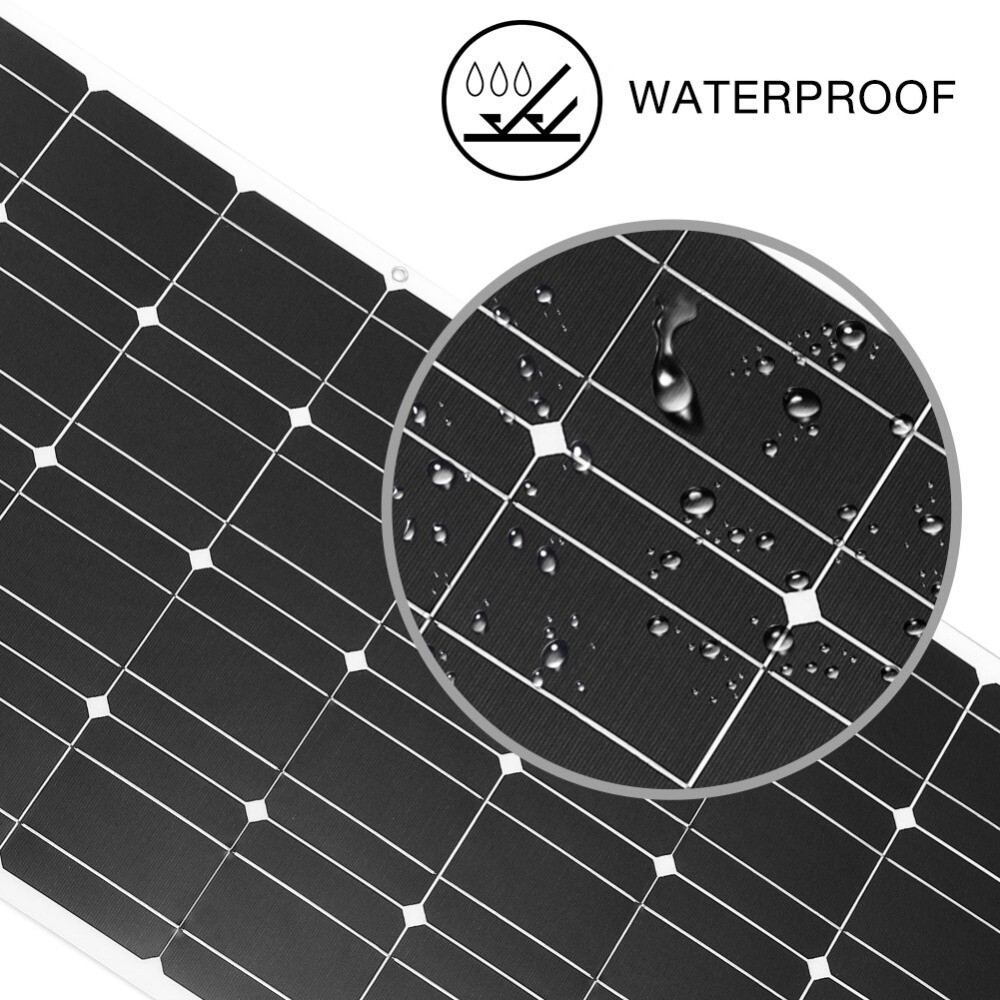

Waterproof level: IP67 (junction box)
Specifications
It is customized: Yes
Maximum power: 100W;200W;400W
number of cells: 36
Material: Monocrystalline Silicon
Nominal capacity: IT IS NOT
Foldable solar panel: No
Flexible solar panel: Yes
Number of panels: 1
Guy: Solar Panel
Volt: 22.5V
Vmpp: 18.00V
I sc: 5.81A
The mpp: 5.56A
Material: ETFE
Factory Outlet: Yes

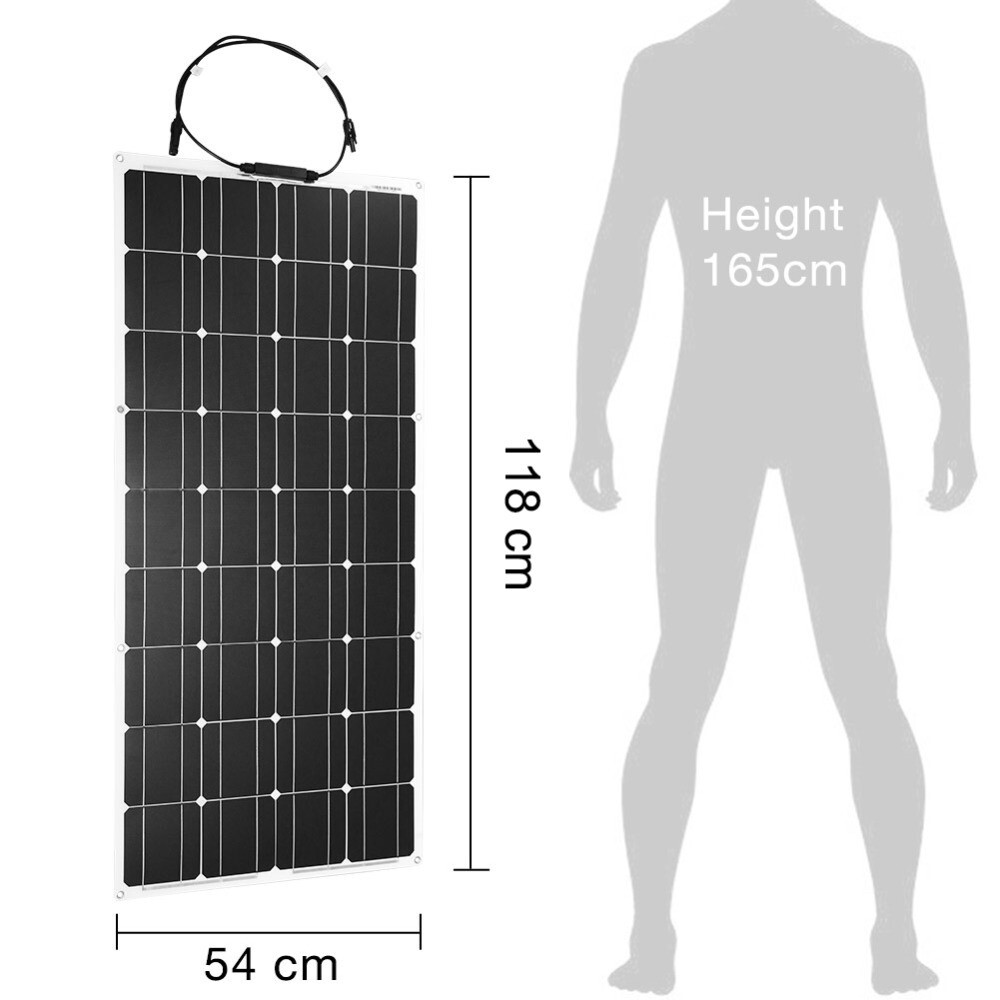

Old Style Size: 118*54cm

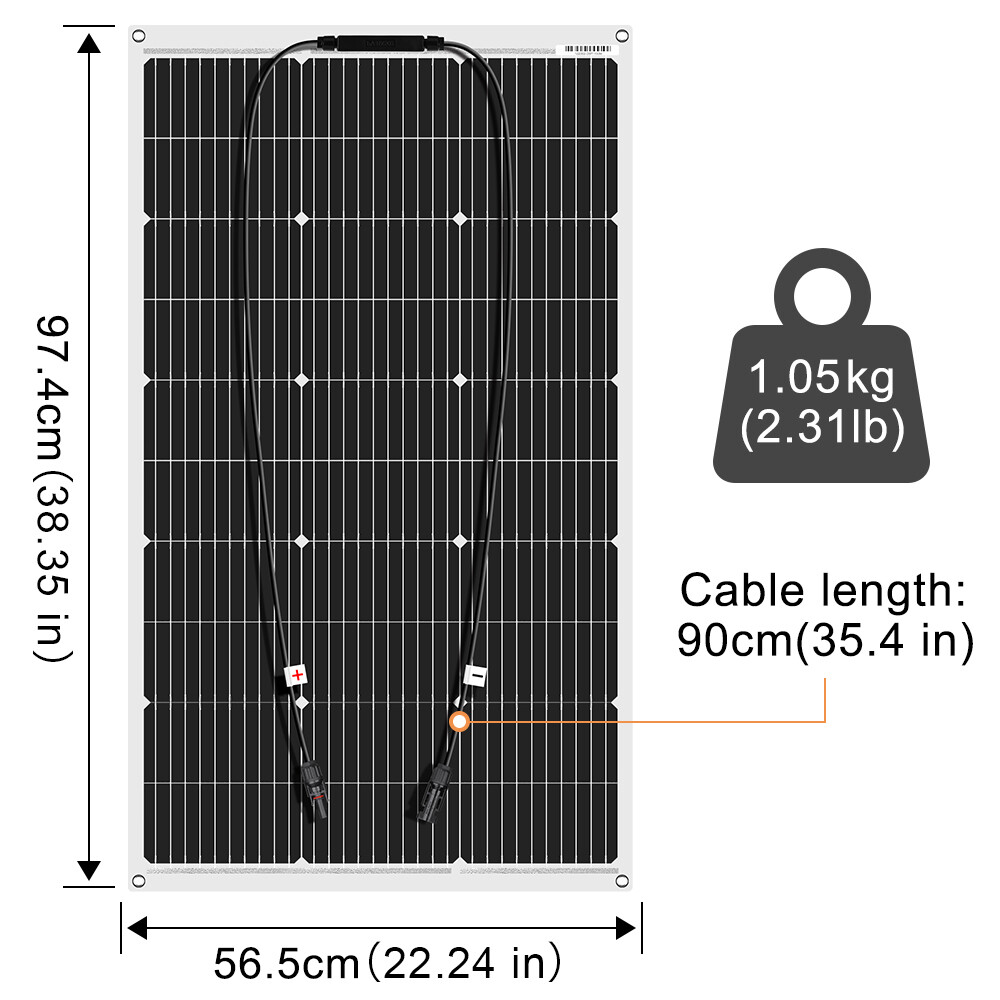

New Style Size: 97.4*56.5cm
Shipping: Nationwide
Condition: New
Delivery: 2 to 5 business days
We put the needs of our customers first and foremost. Don't hesitate to contact us for assistance.
