Product Description:

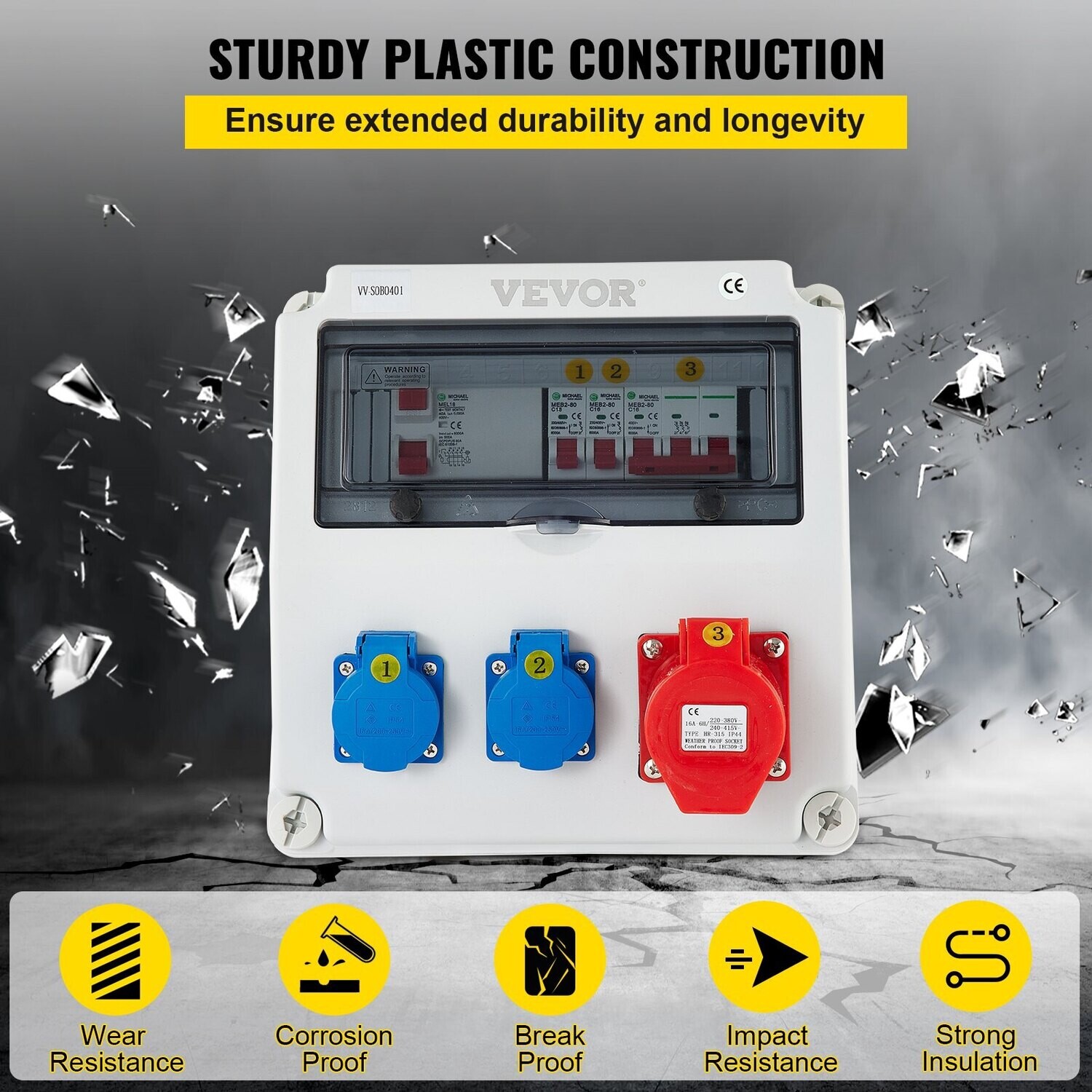

High-Quality ABS Material: The shell of the wall distributor is made of good quality ABS plastic material, which is very sturdy, durable, insulating, moisture-proof, and no dripping. It also has impact resistance and high break resistance, keeping your equipment well protected in harsh environments.

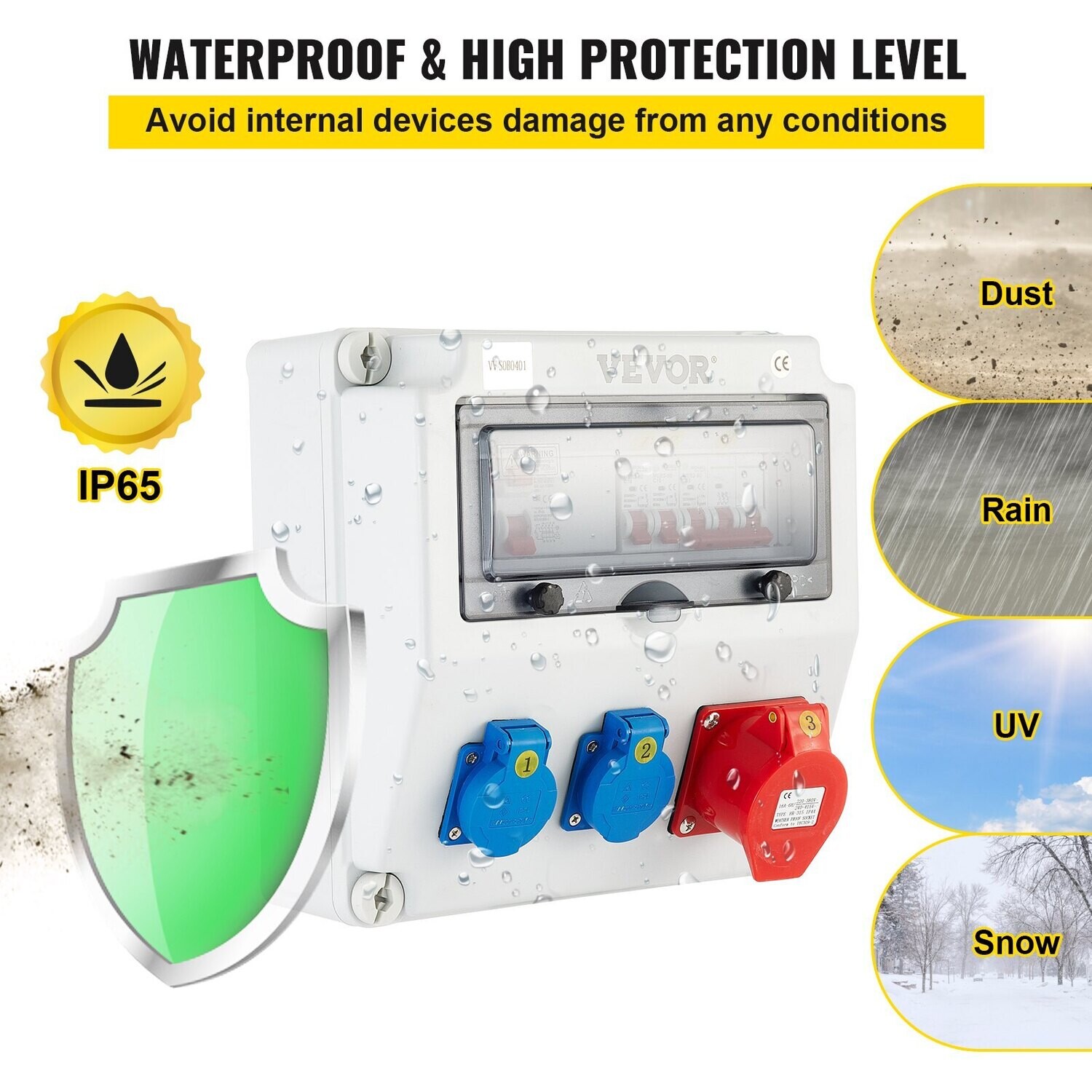

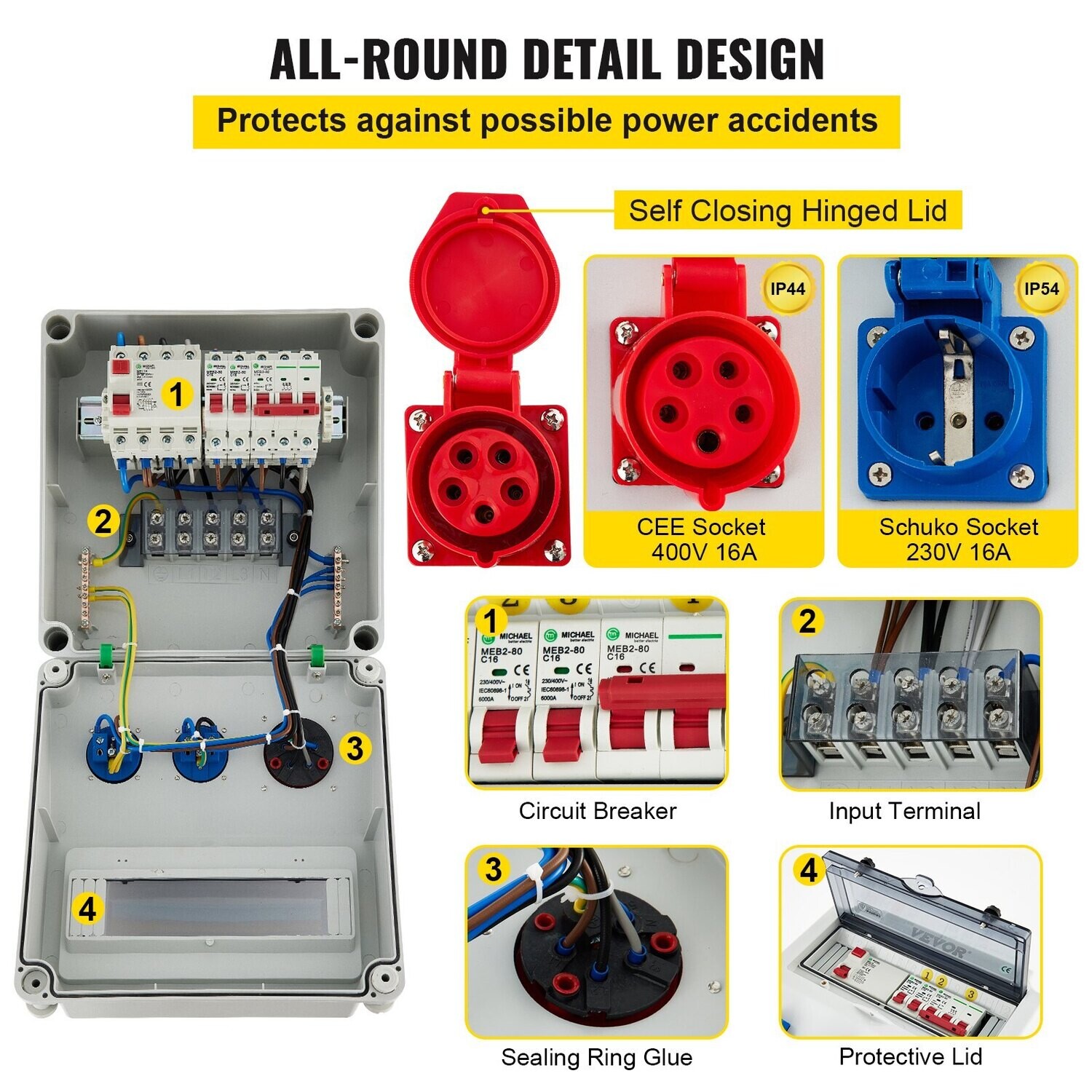

IP65 Shell & IP44 Socket: The wall power distributor enclosure reaches IP65 protection level, while the protection level of the socket is IP44. It is splash-proof, avoiding dirt and water entering the box. The socket is secured via the circuit breaker and self closing hinged lid. With FI fuse for more security, protects against possible power accidents.

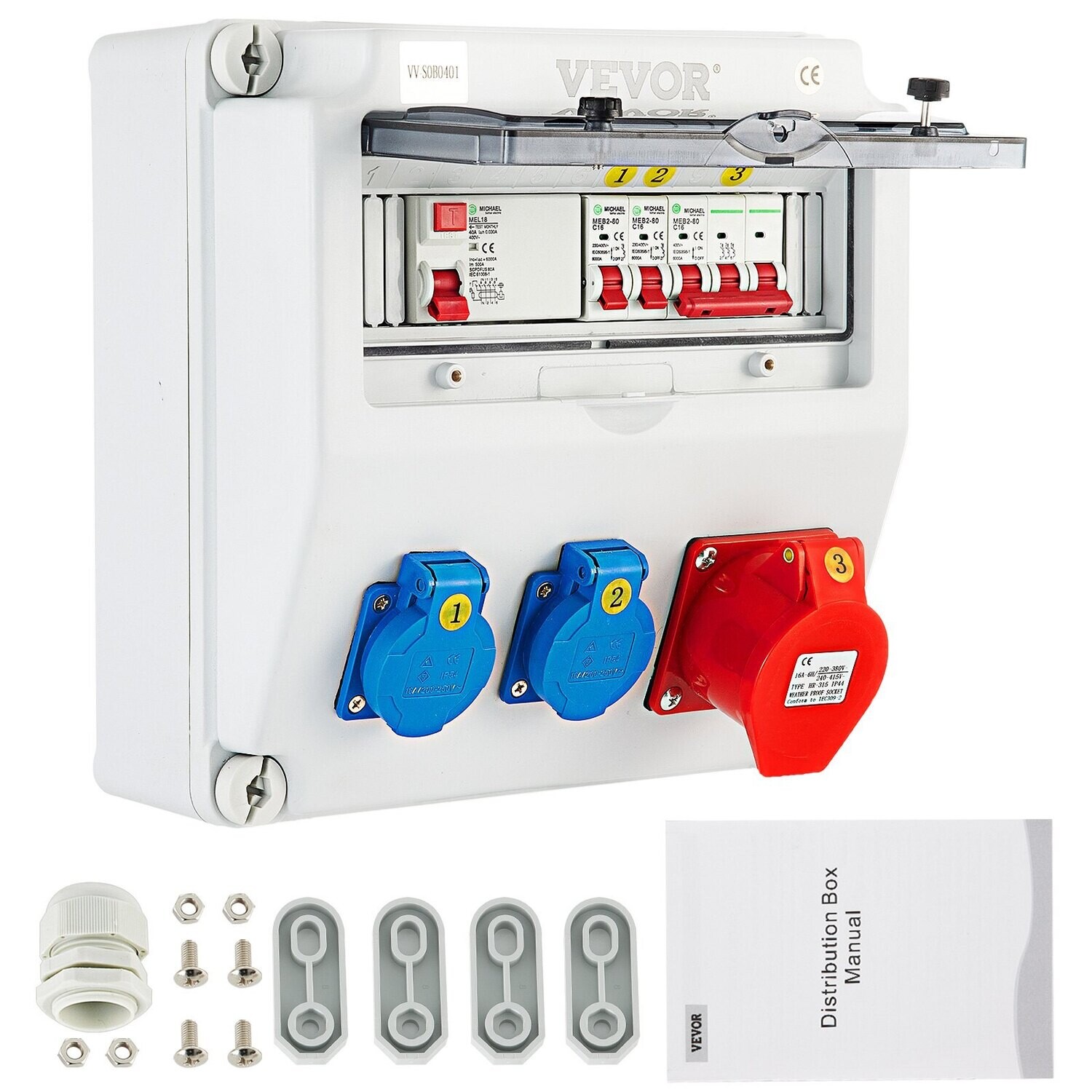

Box Contents: 2 x Schuko-Sockets 230 V, 16 A, Blue Sockets ABL IP54; 1 x CEE Sockets 400 V, 16 A, 5-Pin, Red Sockets ABL IP44; 1 x FI Fuse 40A-30mA; 2 x 1-Pin LS C16A Circuit Breaker; 1 x 3-Pin LS C16A Circuit Breaker.

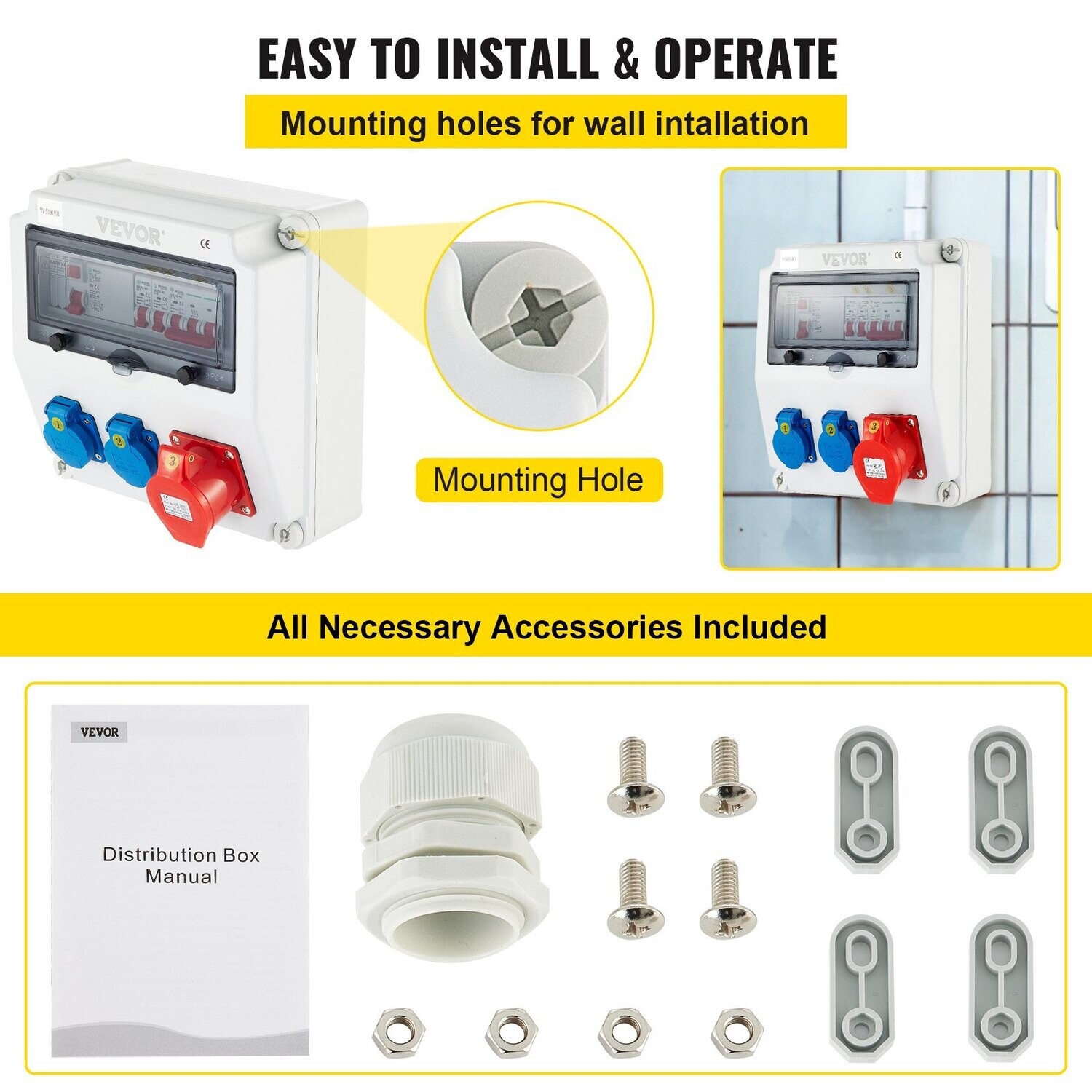

Easy Installation: This power distributor distribution board comes with multiple mounting holes for wall installation, easy for you to install and move. The board power box is equipped with a set of mounting accessories and a detailed product manual to facilitate your installation.

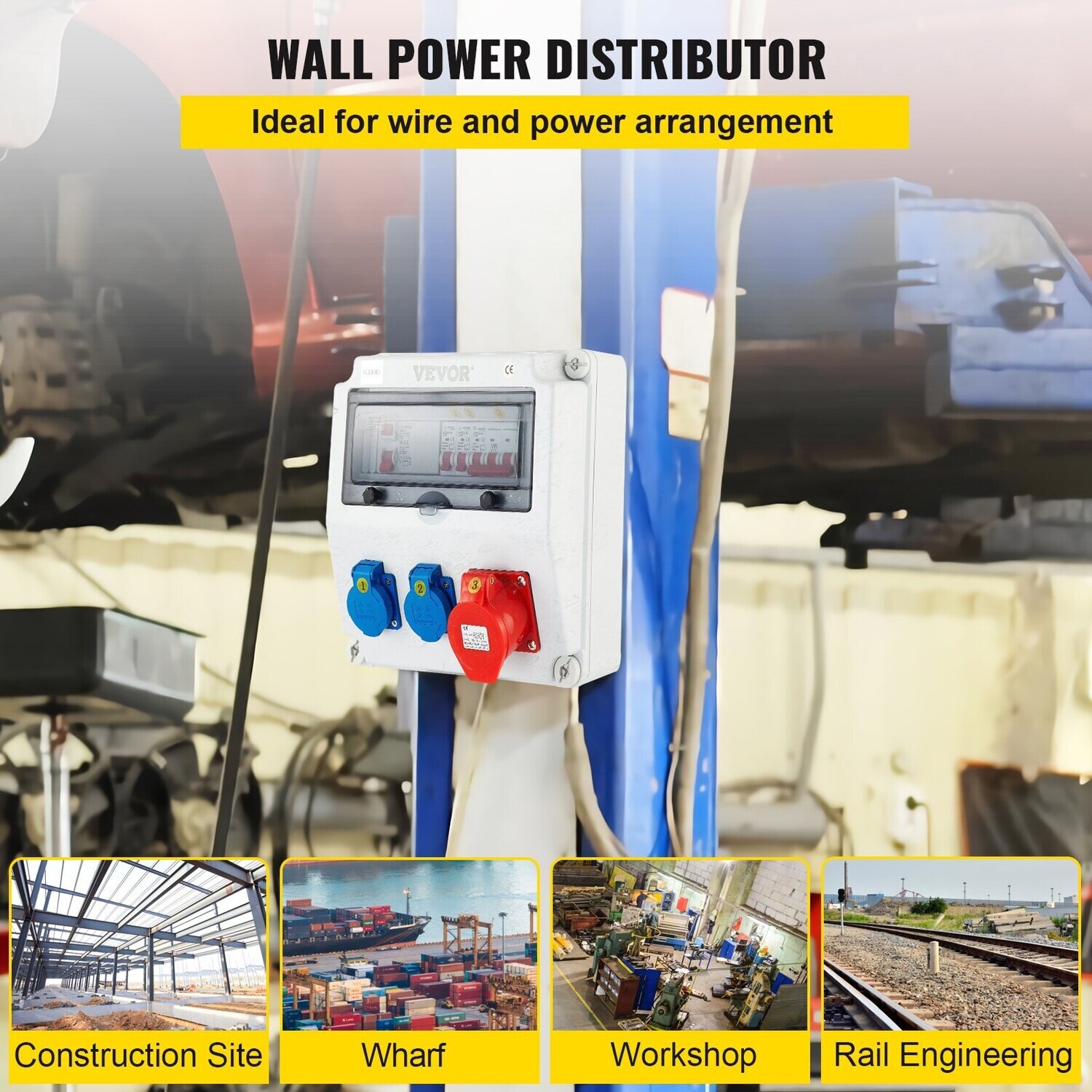

Versatile Application: Connect the plug distribution board to a power source via the CEE socket to power electrical devices. This power distributor is a perfect device for storing cables and ensuring practical cable management. Ideal for construction sites, constant outdoor use, etc.
Specifications
Model: VV-SOB0401
Rated Working Voltage: AC 230 / 400V
Single Circuit Output Voltage: 200-250V, 380-480V
Rated Insulation Voltage: AC 400V
Rated Operating Frequency: 50 Hz
Shell Protection Level: IP65
Socket Protection Level: IP44
Pole Number Of Output Socket: 3-Pin / 5-Pin
Schuko-Socket: 2 x Schuko-Sockets 230 V, 16 A, Blue Sockets ABL IP54
16A CEE Socket: 1 x CEE Sockets 400 V, 16 A, 5-Pin, Red Sockets ABL IP44
FI Fuse: 1 x FI Fuse 40A-30mA
1-Pin C16A Circuit Breaker: 2 x 1-Pin LS C16A Circuit Breaker
3-Pin C16A Circuit Breaker: 1 x 3-Pin LS C16A Circuit Breaker
