MPPT solar charge controller, 12V 24V 36V 48V solar charge controller, 150V charge controller, with WIFI module support, LCD screen solar charger
Product Details
The listing is about 40A solar charge controller, features with WIFI box and LCD, 12V/24V/36V/48V system optional, max 150V DC PV input voltage, RS485 communication, and high-efficiency MPPT controller algorithm, can meet your different needs.

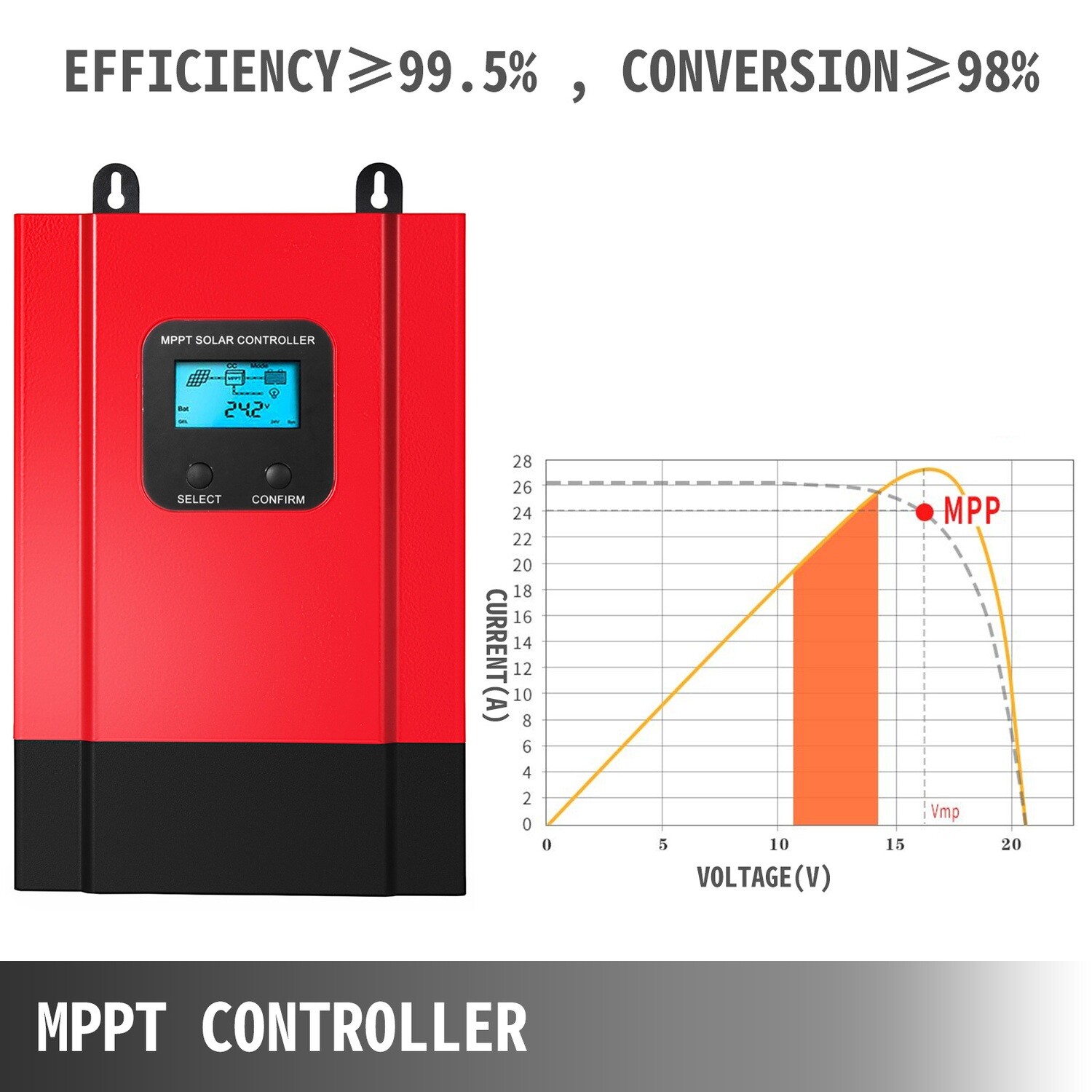

· 【 HIGH-EFFICIENCY 】- The solar charger controller has the function of Maximum Power Point Tracking. Its efficiency is not less than 99.5% and its conversion efficiency is up to 98%. It can detect the solar panel's voltage and current in real-time and keep tracking the maximum power point to charge the battery with the maximum power.

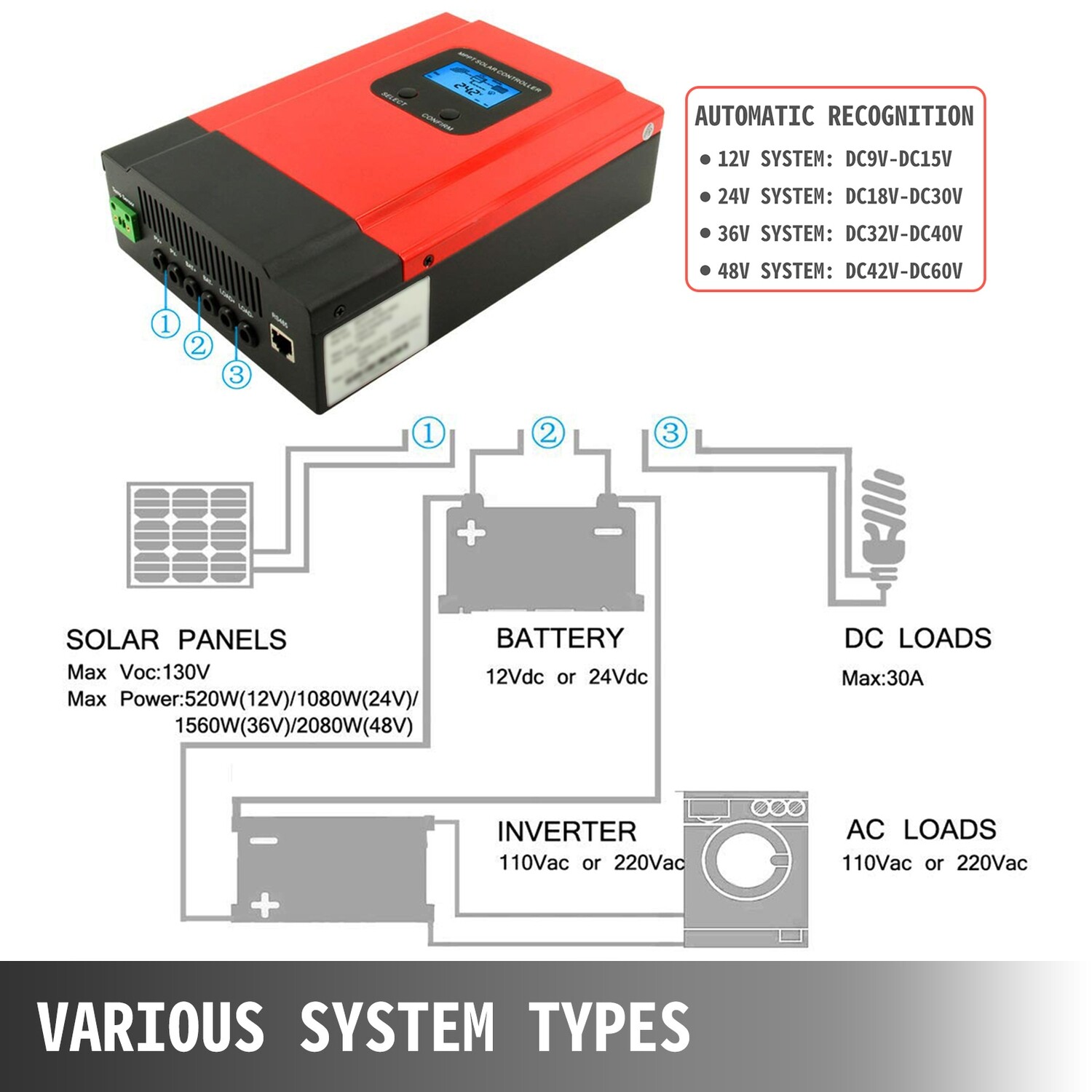

· 【AUTOMATIC RECOGNITION】- The charge controller can automatically identify 12V / 24V / 36V / 48V systems. The full PV input voltage of DC 150V makes it suitable for more PV modules and convenient for users to use in different modes.

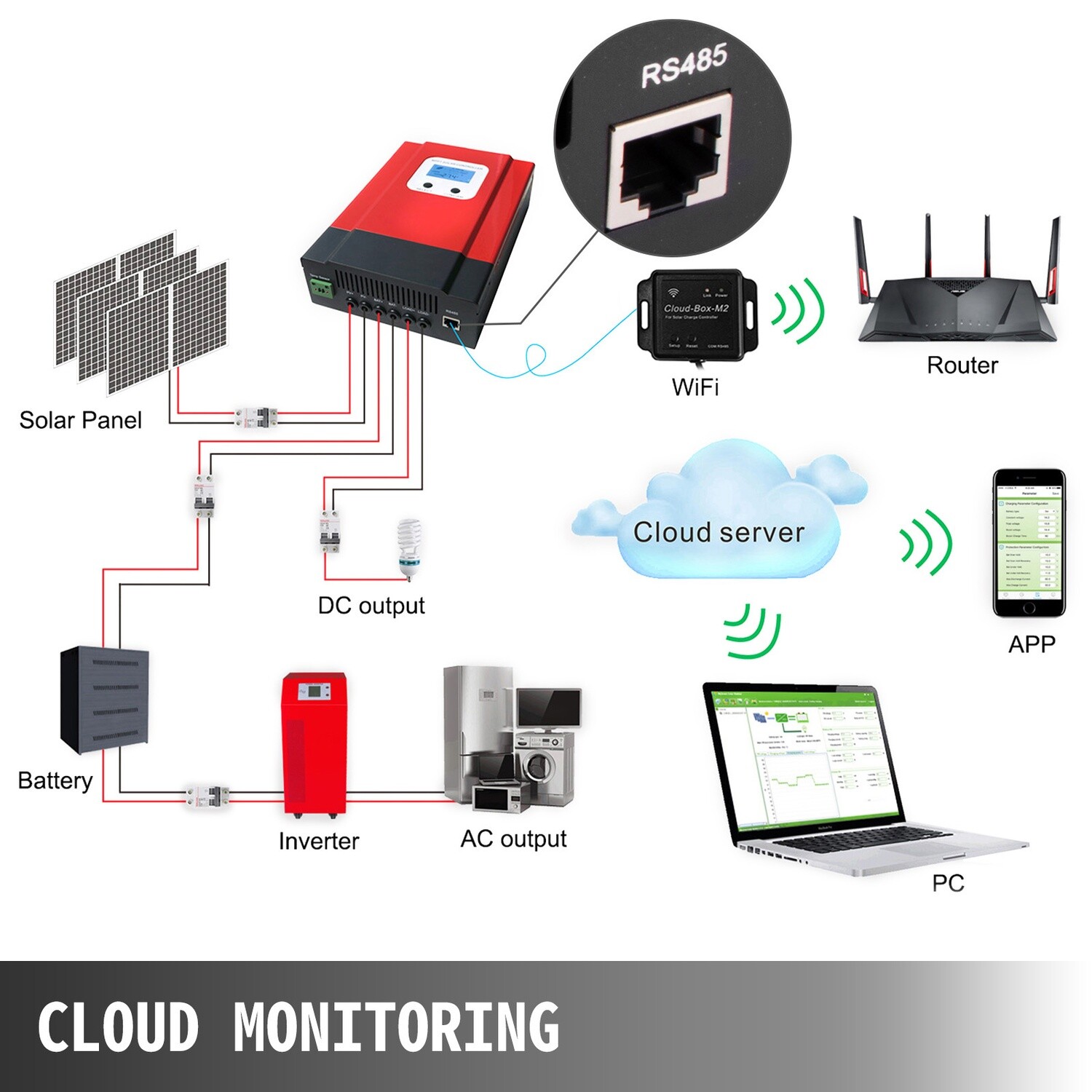

· 【WIFI BOX & RS485】- This solar panel controller is equipped with a WIFI box, supports the expansion of the WIFI module to realize the app cloud monitoring, including the RS485 communication line, can provide the communication protocol to facilitate the integrated management.

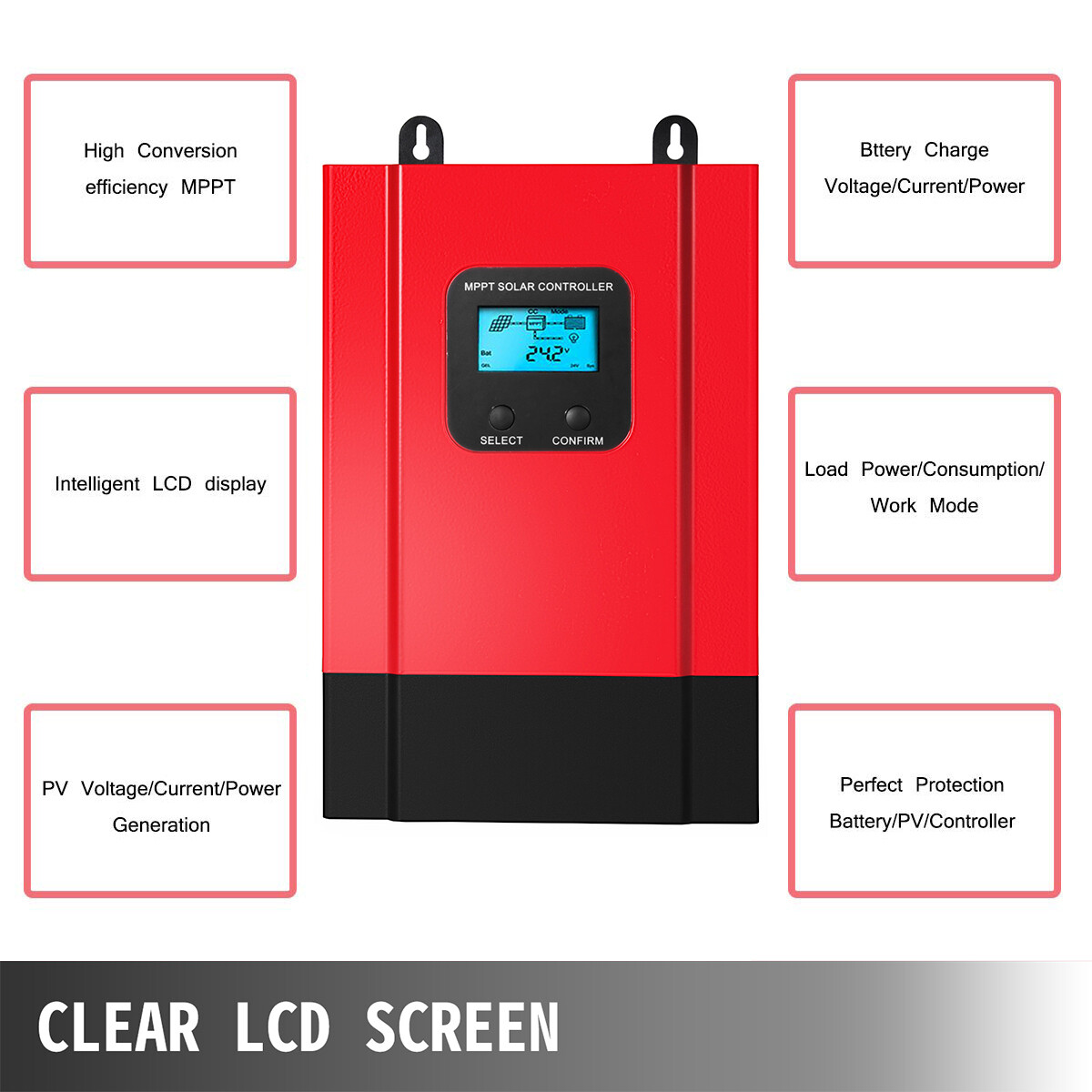

· 【LCD DISPLAY SCREEN】- The solar charge regulator features a high-definition LCD function, can view the equipment operating data and working status, and support the setting of related parameters, such as system type, charging voltage, temperature, etc.

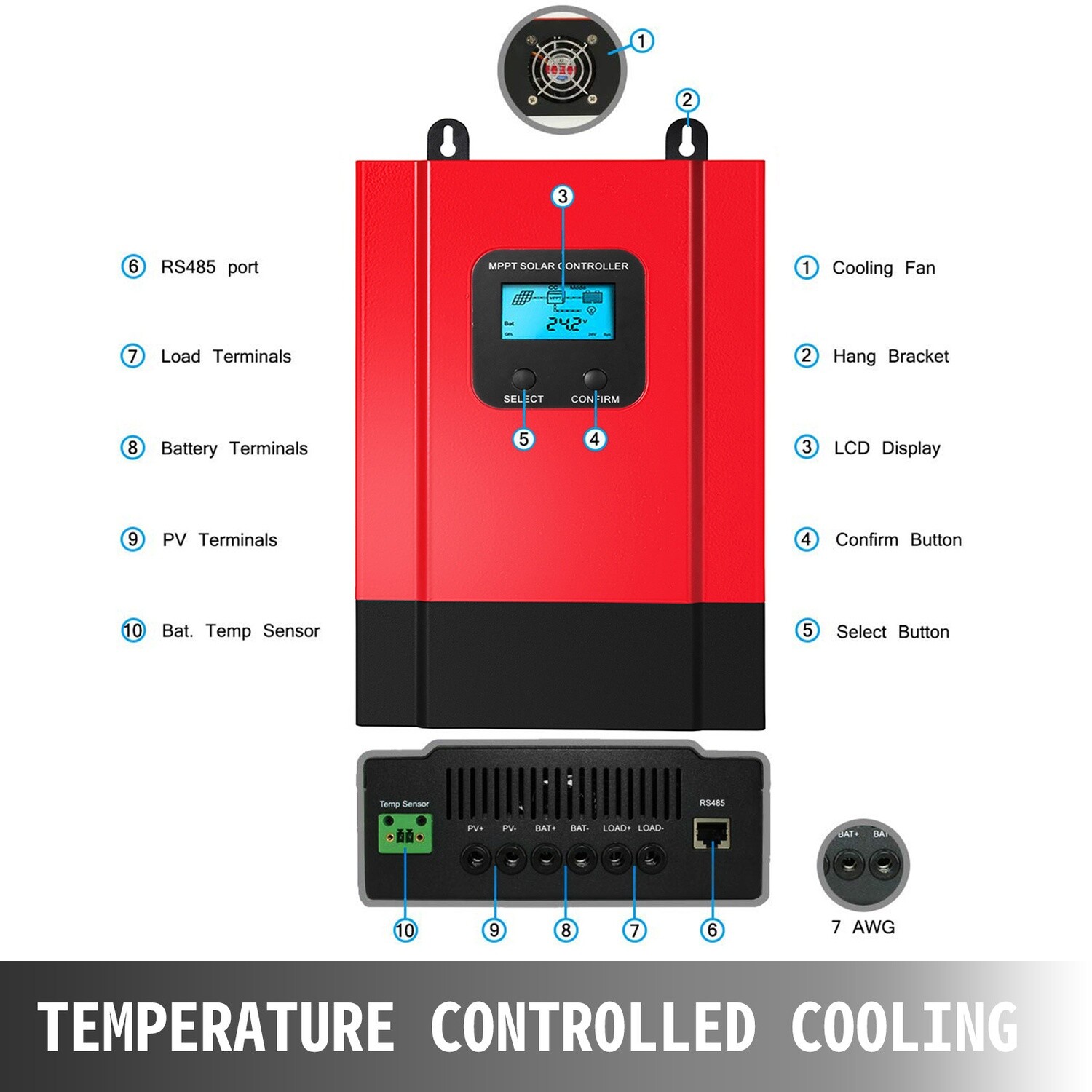

· 【INTELLIGENT & PROTECTIVE】- The solar controller adopts a built-in intelligent temperature-controlled cooling fan, which effectively reduces the operating temperature; it adds various protection functions such as low-voltage input protection, over-voltage input protection, and over-charging source protection.
Specifications
Color: Red + black
Controller type: MPPT (maximum power point tracking)
MPPT efficiency: ≥ 99.5 %
System type: DC12V/24V/36V/48V (automatic recognition)
System Voltage and Rated Power
12V system: DC9V-DC15V, 520W
24V system: DC18V-DC30V, 1040W
36V system: DC32V-DC40V, 1560W
48V system: DC42V-DC60V, 2080W
Max. PV input voltage: 150V
Start the charge voltage point: 5V higher than the current battery voltage
Low input voltage protection point: 3V higher than the current battery voltage
Battery types optional(Default Gel battery): Flooded, Sealed lead acid, Gel battery (Other types of the batteries also can be defined)
Constant voltage: Please check the charge voltage according to the battery type form.
Floating voltage: Please check the charge voltage according to the battery type form.
Rated charge current: 40A
Temperature factor: ± 0.02 % ℃
Temperature compensation: -3mV/℃/2V (default)
Output ripples(peak): 200 mV
Output voltage stability precision: ≤ ± 1.5 %
Output voltage: Based on battery voltage
Low voltage output protection point: Default 10.5V; Recovery 11V; It can be adjustable.
Load rated current: 40A
LCD display: System type, PV voltage, Charge voltage, Charge Current, Charge power, temperature, etc.
Package Content
1 x MPPT Solar Charge Controller
1 x WIFI Box
1 x RS485 Communication Line
1 x Temperature Sensing Wire
1 x Screwdriver
2 x Hang Brackets
1 x Set of Installation Screws
1 x Product Manual
Condition: New
Shipping: Nationwide
Delivery: 2-5 working days
