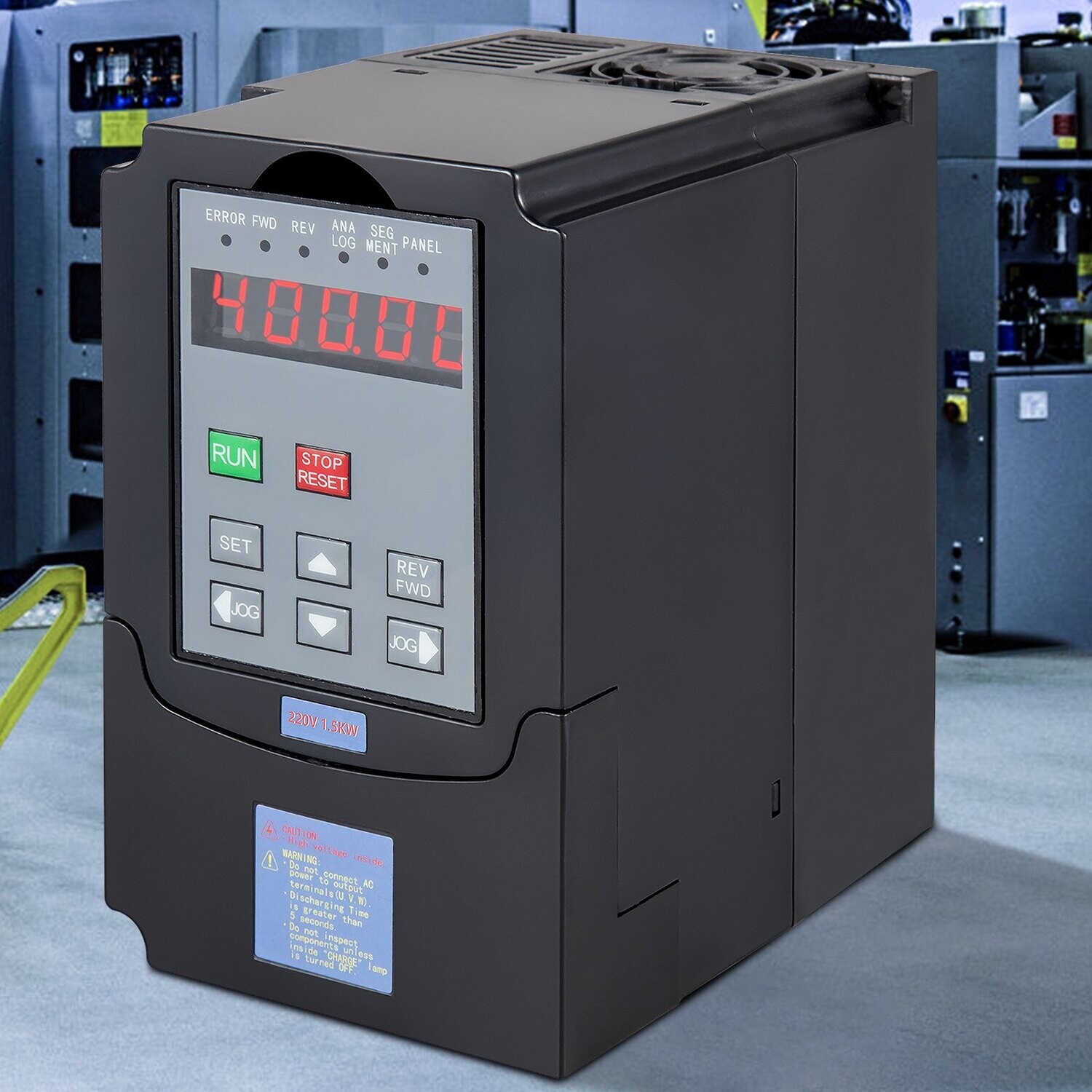

• This VFD converter is suitable for both constant torque loads (such as air compressors and HVAC units) and variable torque loads (such as pumps, fans, etc.). It can also be used as a motor speed controller and a phase converter. This VFD has a 1 or 3-phase input and a 3-phase output. When you use this VFD, you can set the speed to whatever you want. This item makes excellent use of Sine wave PWN (SPWM) in the control system.
• This variable frequency drive features a 1 or 3-phase input and a 3-phase output. V/F control and vector control are the two control modes. Frequency setting modes include digital, analog, serial communication, and others. Dynamically, various control techniques, both synchronization, and non-synchronization enable fast starting without changing brakes.

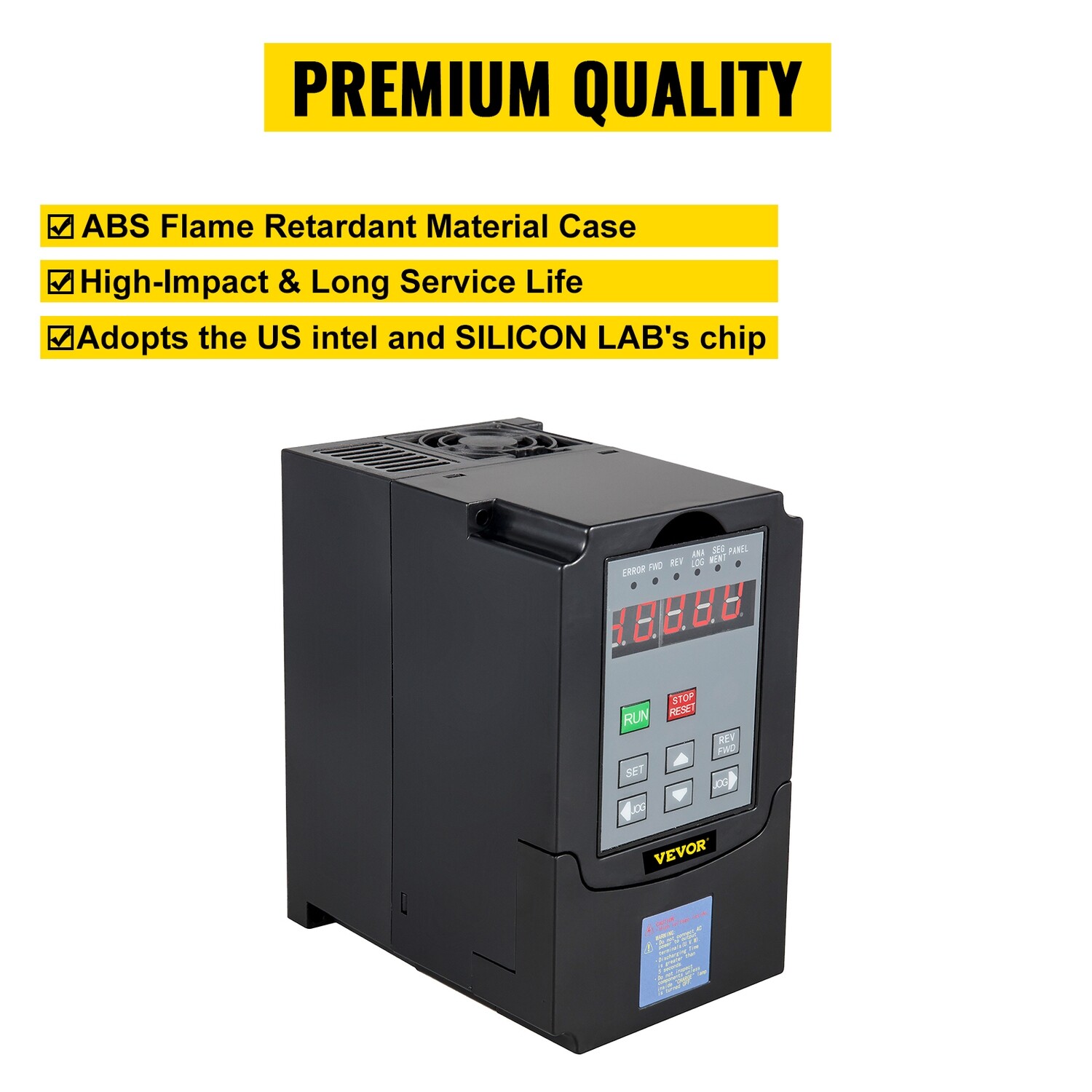

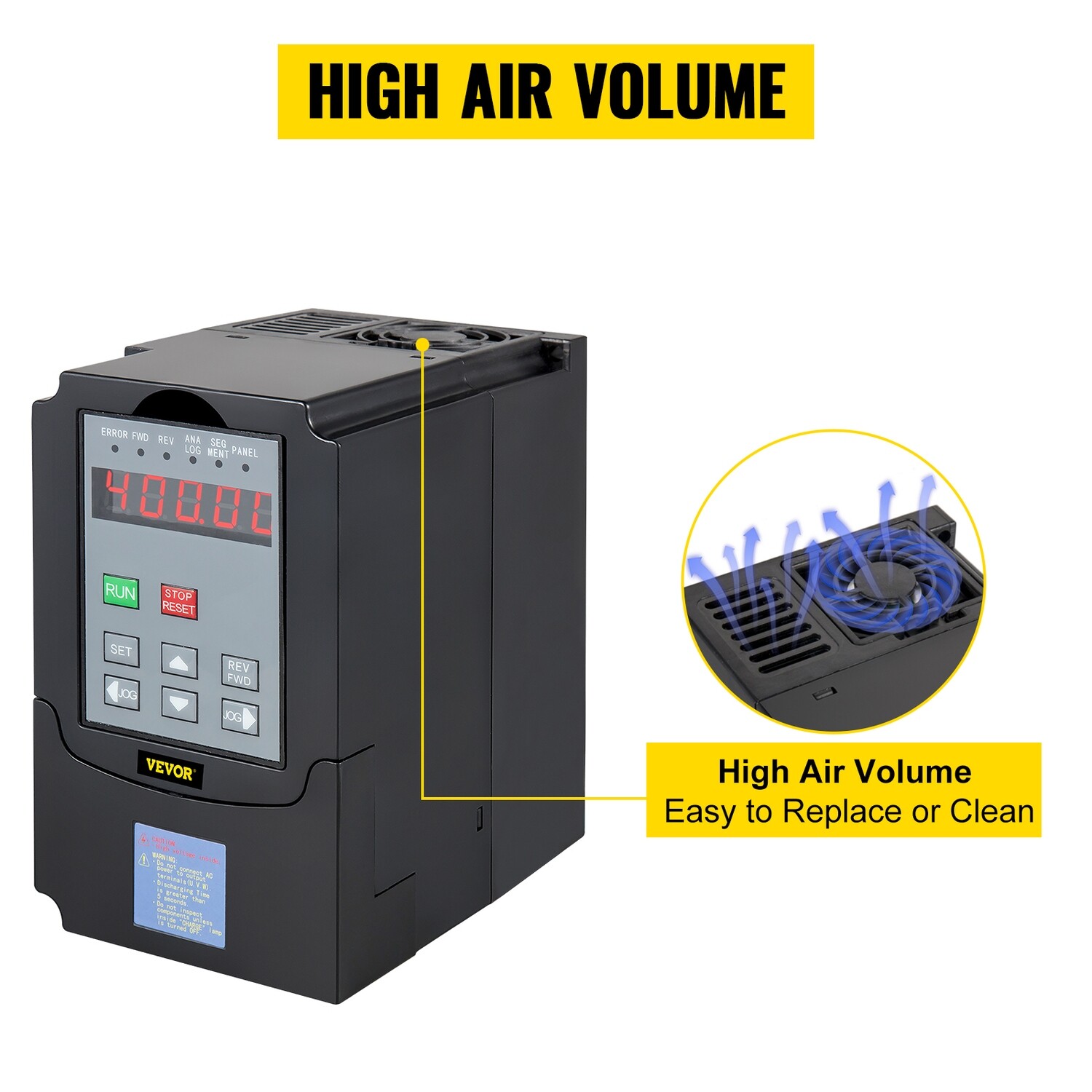

• Low-Noise Operation: The CNC variable frequency drive inverter has low noise and electromagnetic interference due to the optimization of PWM control technology and the overall design's electromagnetic compatibility. There is enough space between electronic components for heat dissipation, and the shell uses porous heat dissipation, which has a longer service life.

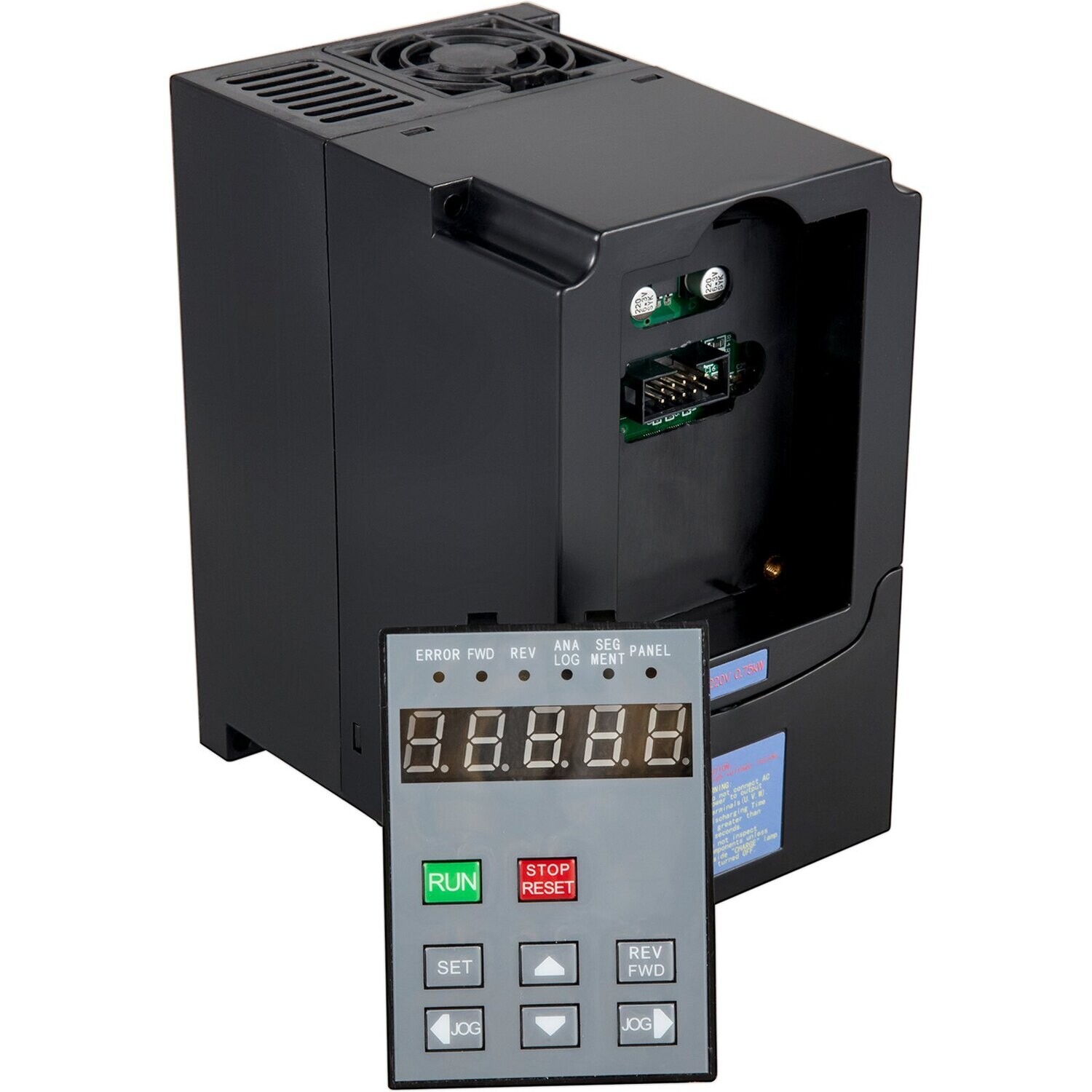

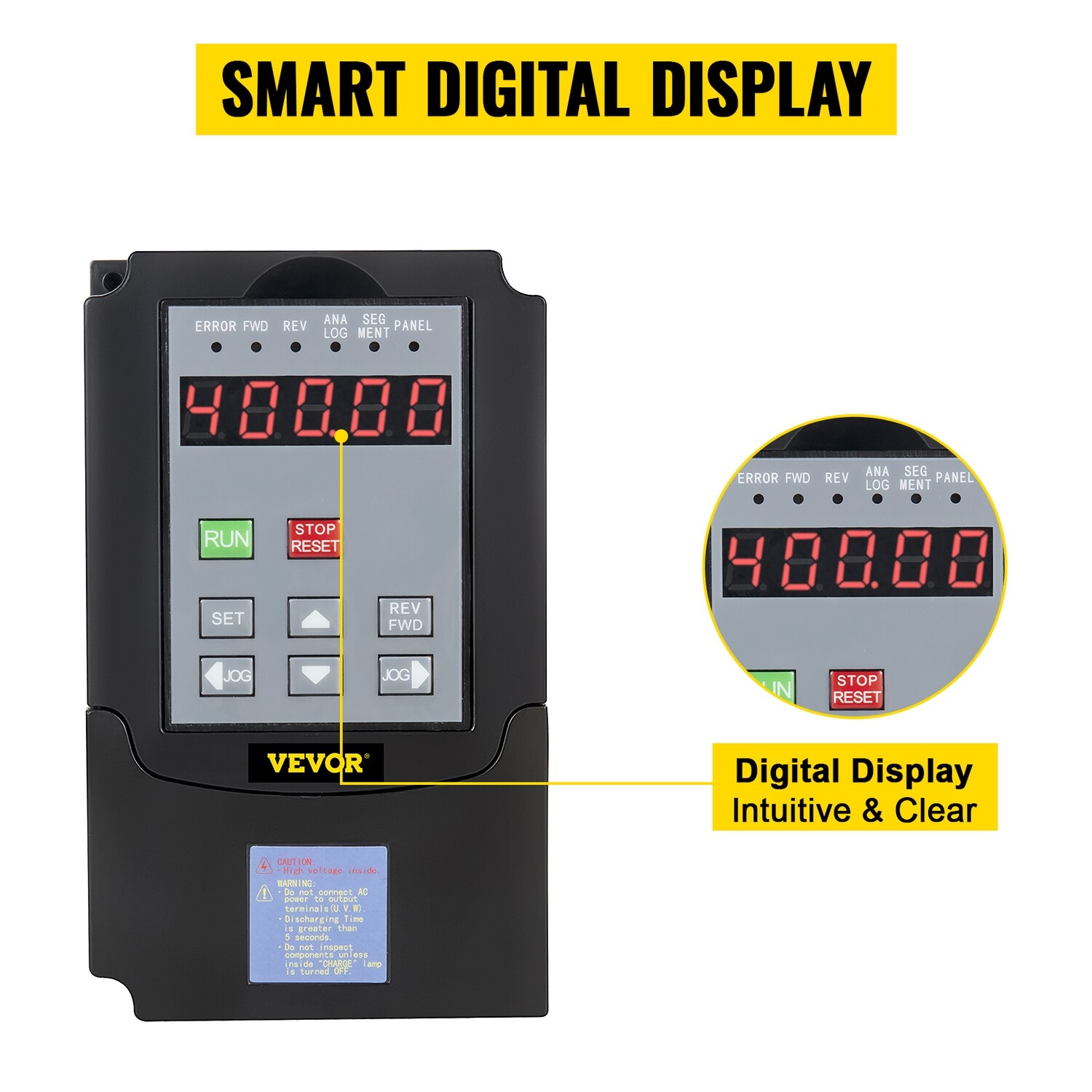

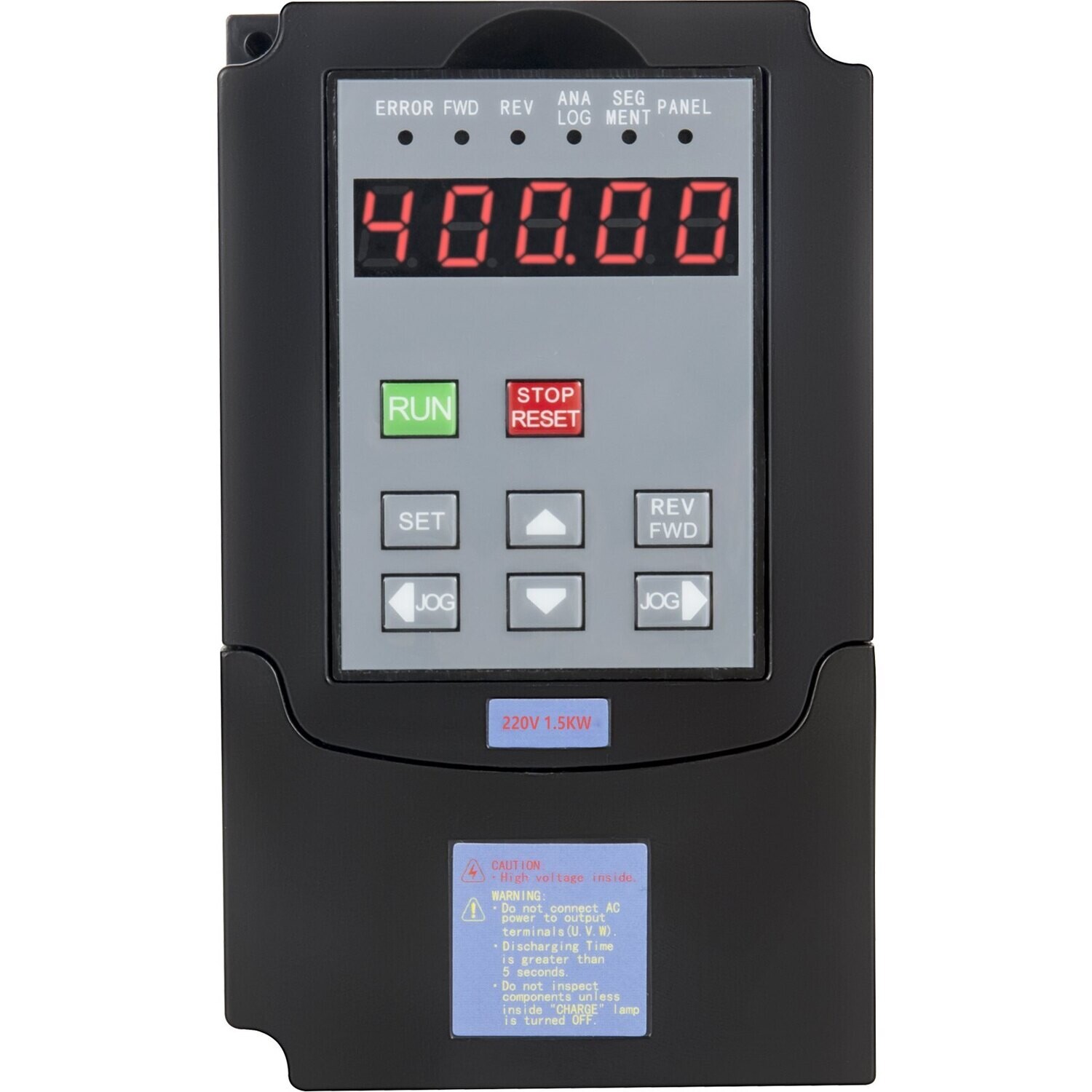

• Smart Digital Display: To achieve quick and easy operation, the VFD uses a user-friendly keyboard design and reasonable layout, with full-featured clear buttons. In addition, the large digital display is simple to use and easy to read. The panel's detachable design makes the remote control easy.

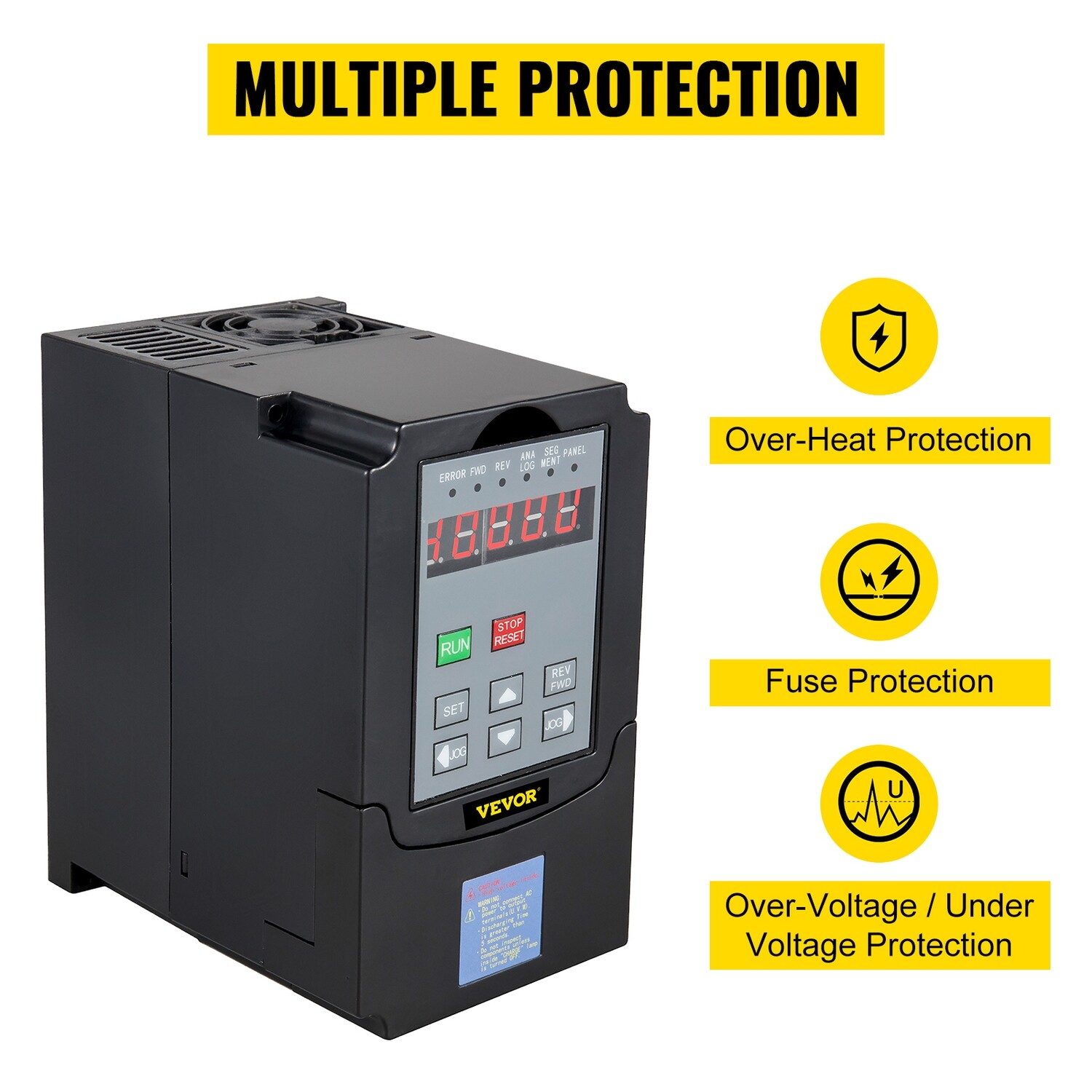

• Multiple Protection: To ensure the stable and reliable operation of the CNC frequency drive inverter, we use various protection methods such as overload protection, fuse protection, over-voltage (DC voltage>400V) or under-voltage (DC voltage200V) protection, restart protection, stall protection, short-circuit protection, and over-heat protection.
• A spindle motor, CNC engraving machine, CNC milling machine, CNC machine tool, milling machine, drilling machine, trimming machine, mixer, extruder, slitting machine, rewinder, compressor, ventilator, pump, grinder, conveyor are the main application areas. Elevators (cannot be used for passenger elevators), centrifuges, and other speed regulators.

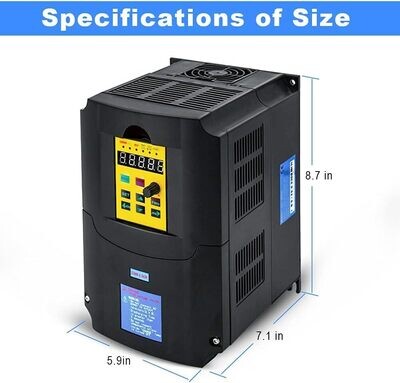

Specifications
