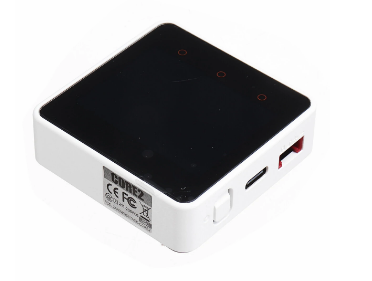

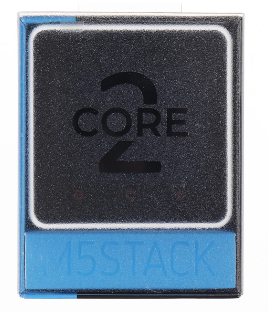

M5Core2 is the second generation core device in the M5Stack development kit series, which further enhances the functions of the original generation of cores.

The MCU is an ESP32 model D0WDQ6-V3 and has dual core Xtensa® 32-bit 240Mhz LX6 processors that can be controlled separately. WiFi and Bluetooth are supported as standard and it includes an on board 16MB Flash and 8MB PSRAM, USB TYPE-C interface for charging, downloading of programs and serial communication, a 2.0-inch integrated capacitive touch screen, and a built-in vibration motor.

M5Core2 also features a built-in RTC module which can provide accurate timing. The power supply is managed by an AXP192 power management chip, which can effectively control the power consumption of the base and a built-in green LED power indicator helps to notify the user of battery level. The battery capacity has been upgraded to 390mAh, which can power the core for much longer than the previous model.

The M5Core2 retains the SD card slot and speakers. However, in order to ensure higher quality sound output, the I2S digital audio interface power amplifier chip is used to effectively prevent signal distortion. There are independent power and reset buttons on the left side and bottom of the base.

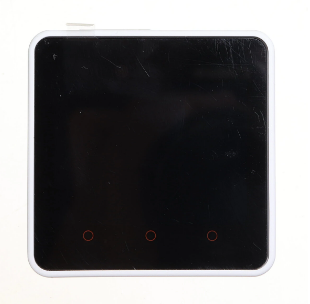

The 3 icons on the front of the screen are capacitive buttons which are programmable. There is a small expansion board on the back of the base with a 6-axis IMU sensor and microphone. The development platform and programming language supported by M5Stack Core2: Arduino, UIFlow (using Blockly, MicroPython language) No matter what level of your development and programming skills, M5Stack will help You gradually turn your ideas into reality.

Power on/off:

Power off: press the power button for 6s

Restart: Click the RST button at the bottom

Features:

ESP32-based, built-in Bluetooth,WiFi

16M Flash，8M PSRAM

Built-in speaker, power indicator, vibration motor, RTC, I2S amplifier, capacitive touch screen, power button, reset button

TF card slot (16G Maximum size)

Built-in lithium battery, equipped with power management chip

Independent small board built-in 6-axis IMU, PDM microphone

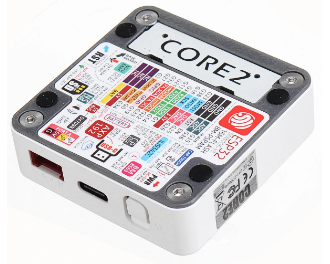

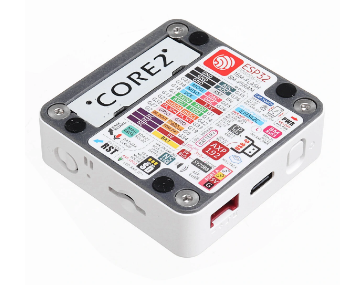

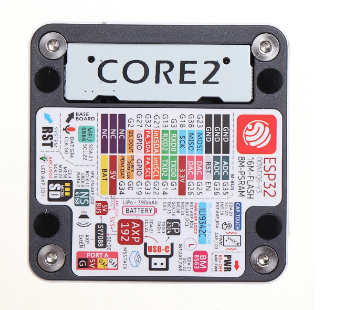

M-Bus Socket & Pins

Program Platform: UIFlow, MicroPython, Arduino

Package Included:

1x M5Stack Core2

1x Type-C USB(20cm)

Applications

Internet of things terminal controller

Stem education product

DIY creation

Smart home equipment

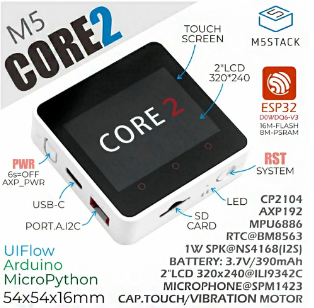

Specification:

Resources	Parameter
ESP32-D0WD-V3	240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode Bluetooth
Flash	16MB
PSRAM	8MB
Input Voltage	5V @ 500mA
Interface	TypeC x 1, GROVE(I2C+I/0+UART) x 1
IPS LCD Screen	2.0"@320*240 ILI9342C
Touch Screen	FT6336U
Speaker	1W-0928
LED	Green power indicator light
Button	Power button, RST button, Virtual screen button*3
Vibration reminder	Vibration motor
MIC	SPM1423
I2S Power Amplifier	NS4168
6-axis IMU	MPU6886
RTC	BM8563
PMU	AXP192
USB Chip	CP2104
DC-DC Boost	SY7088
TF card slot	16G Max.
Lithium Battery	390mAh @ 3.7V
Antenna	2.4G 3D antenna
Operating temperature	32°F to 104°F ( 0°C to 40°C )
Net Weight	52g
Gross Weight	70g
Product Size	54 x 54 x 16mm
Package Size	75 x 60 x 20mm
Case Material	Plastic ( PC )
