Product Description:MPPT tracking charging, no pure traditional MPPT.This solar charge controller features the latest advand MPPT control algorithm, enabling rapid tracking of the maximum power point of the PV array in any environment. It maximizes energy capture from solar panels, significantly enhancing energy efficiency in solar power systems. Ideal for applications such as communication base stations, home power supply systems, traffic lights, solar streetlights, and SA MPPT vs. SY MPPT:

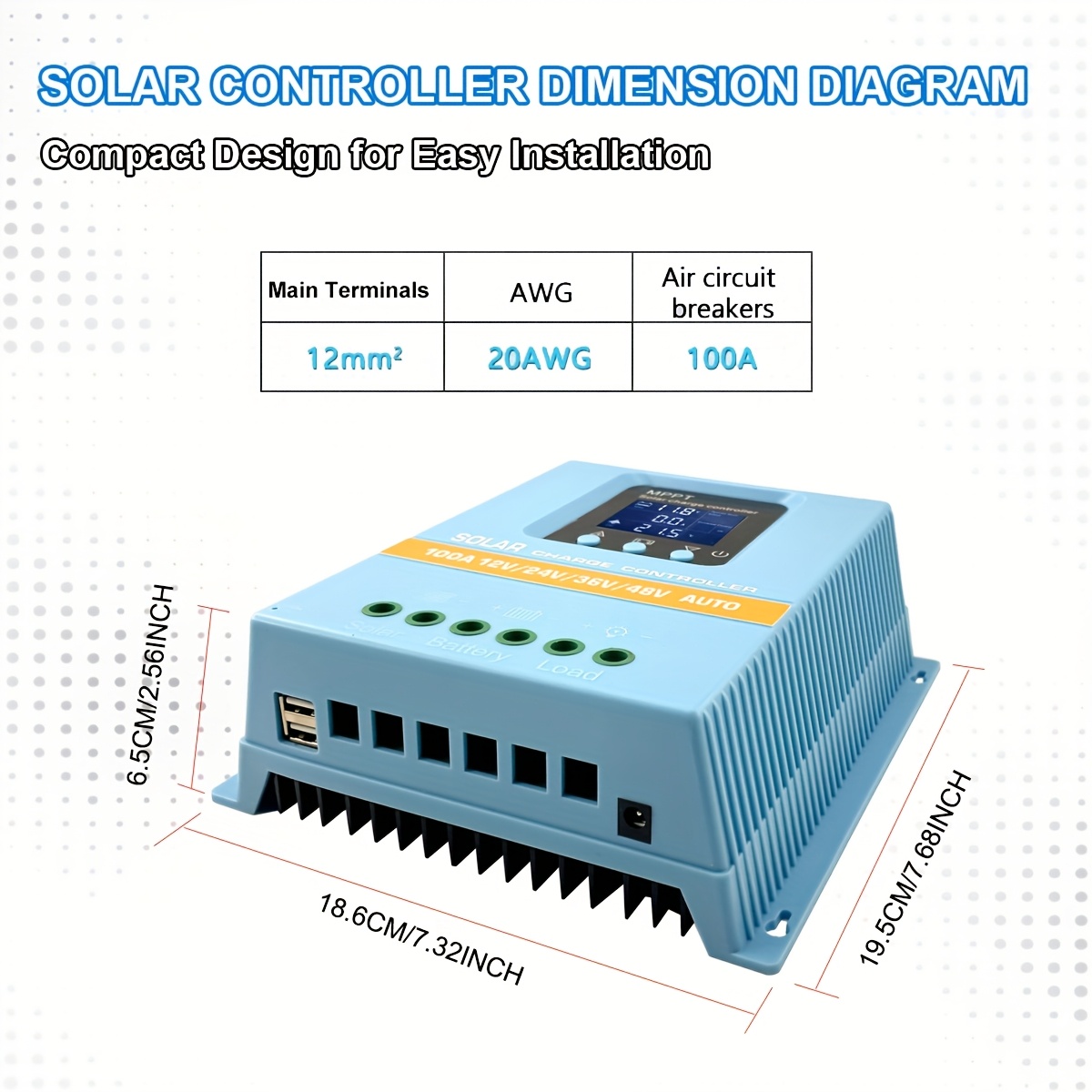

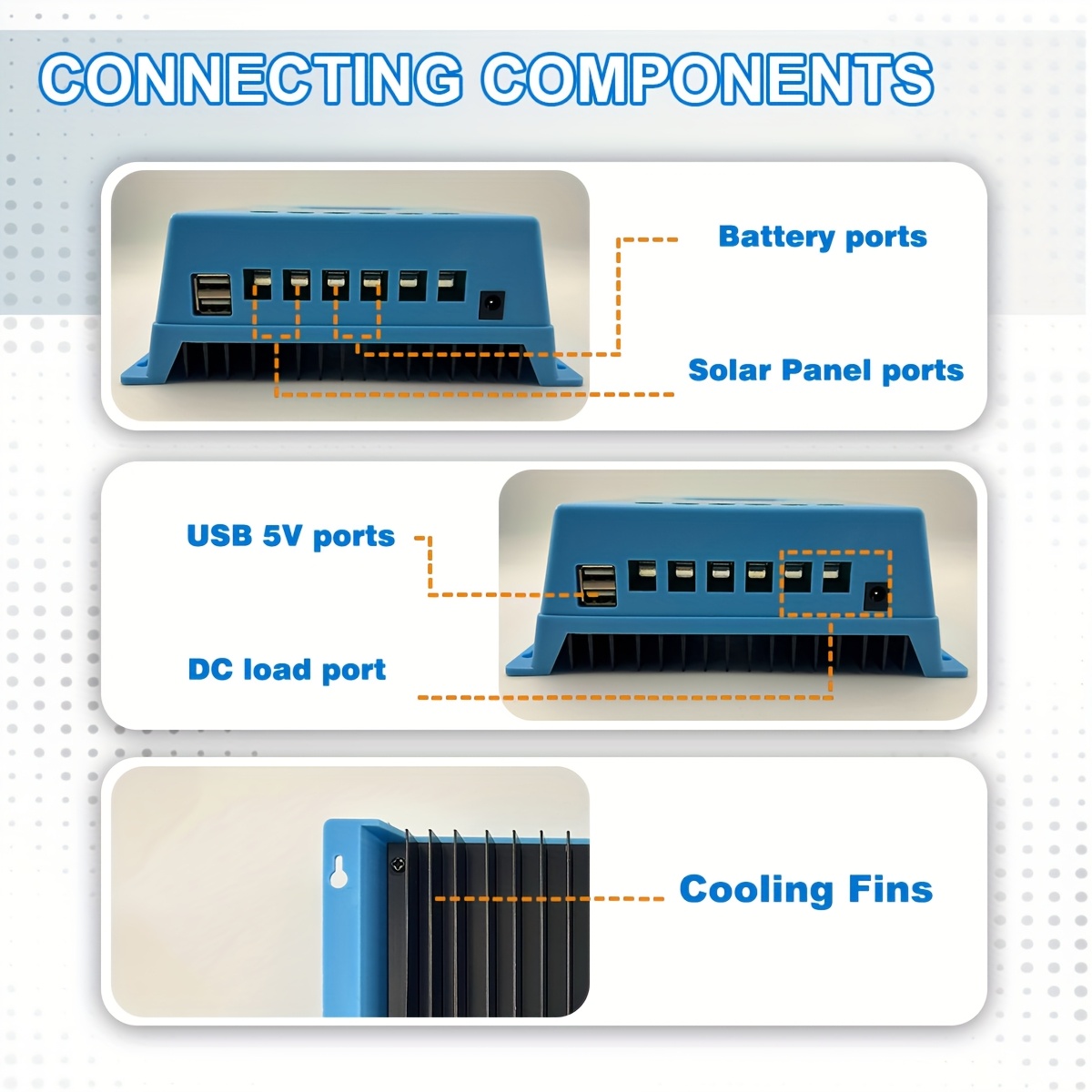

Enhand solar panel voltage visualization for real-time monitoring of PV input parameters. Improved load mode timing accuracy with an error margin redud to 1-2 seconds. Wider radiator fin spacing for better natural heat dissipation, keeping the controller at lower temperatures to boost charging efficiency.Product Information:Category: MPPT Solar Charge ControllerBrand: EOEXBYModel: SA SeriesMaterial: Plastic + Cooling FinsProduct Size: 18.5*18*6.5cm 7.8*7.2*2.8 inches

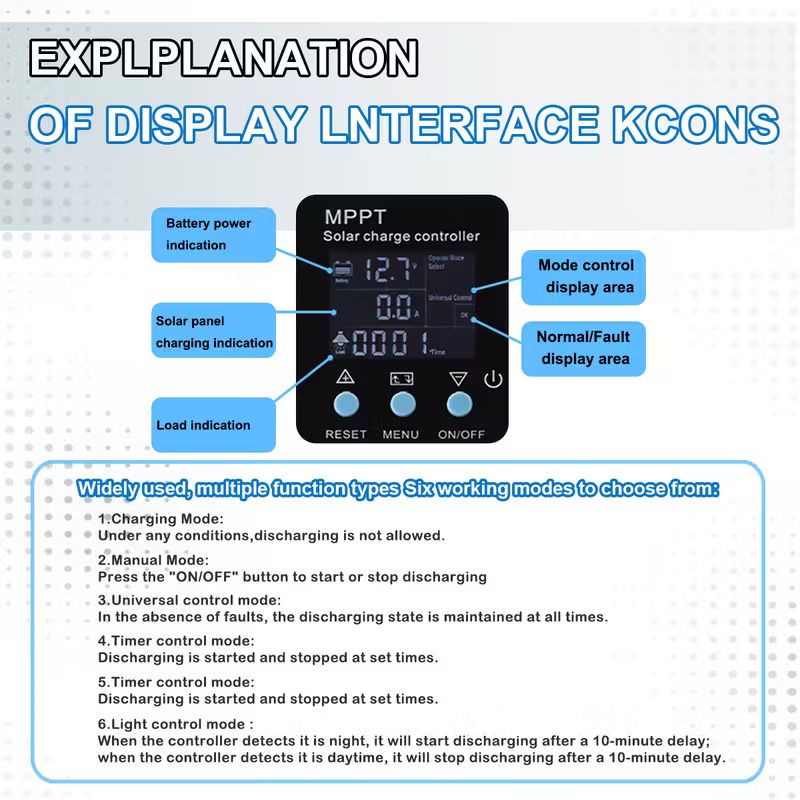

Packaging Size: 21*21*7cm 8*8*2.12 inchesNet Weight: 0.93kg 930gGross Weight: 0.95kg 950gPackage Includes: Solar Controller*1 / User Manual*1kinds of working mode selection(1) Charging current display, battery voltage display, discharge current display(2) Charging mode, discharge is not allowed under any circumstans.(3) Manual mode, press the "ON/OFF" button to start or stop discharge(4) Universal control mode, always maintain the discharge state in the absen of faults.
(5) Timing control mode, start and stop discharge according to the set time.(6) Time control + delay mode, when the controller detects night, it starts discharging after a delay of 10 minutes; when the controller detects daytime, it stops discharging according to the time set by the user.

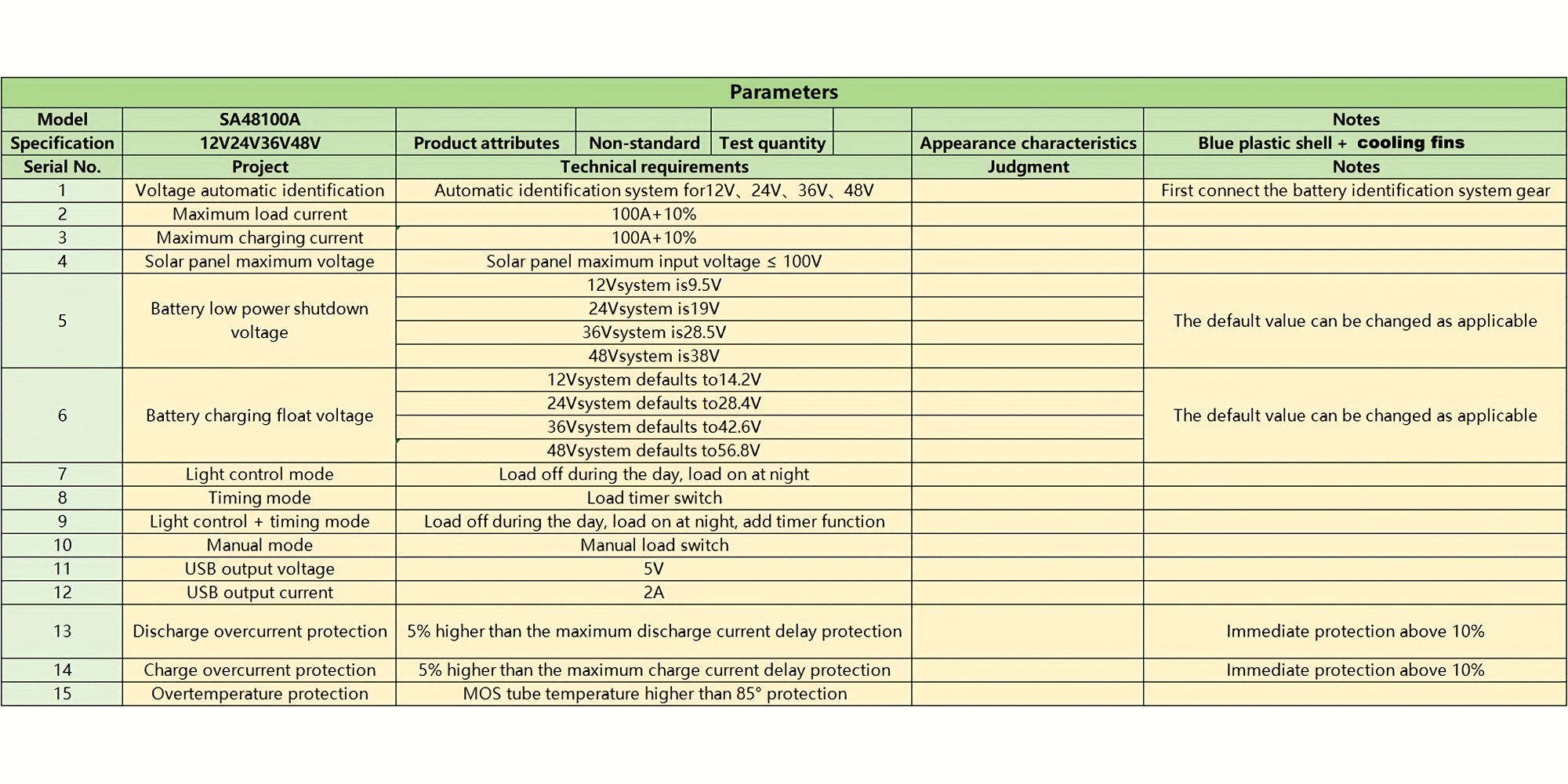

(7) Light control mode: When the controller detects that it is night, it starts discharging after a delay of 10 minutes; when the controller detects that it is daytime, it stops discharging after a delay of 10 minutes.Specifications:1~Battery Voltage 12V/24V/36V/48V Automatic2~Dual USB 5V Charging Ports3~Charging Current 60A/80A/100A4~Maximum Solar Input (Voc) 15-25V (12V Battery); 30-50V (24V Battery); 45-75V (36V Battery); 60-100V (48V Battery)5~Maximum PV Input power

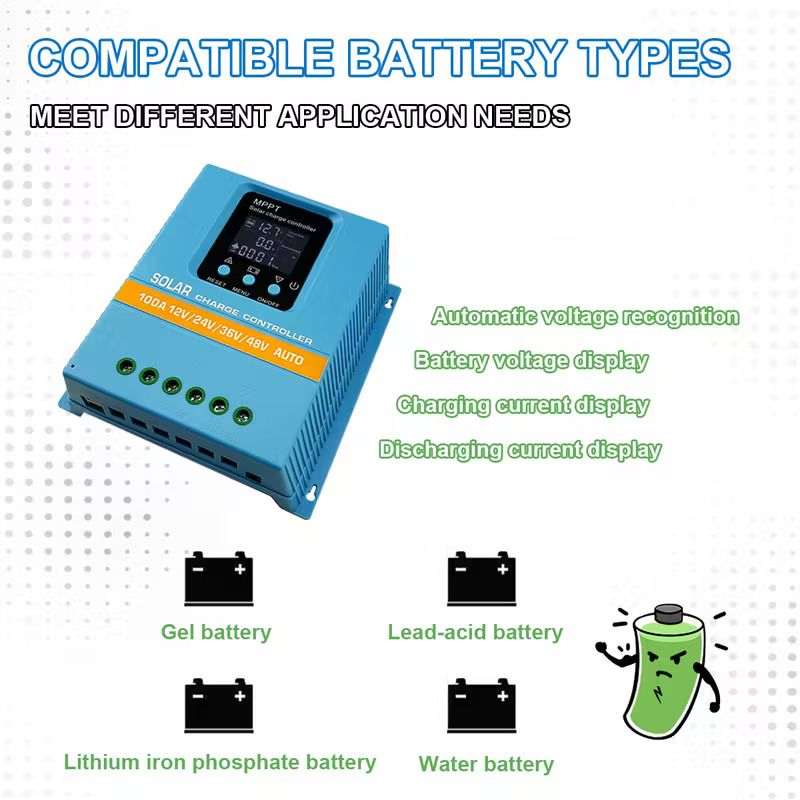

(60A)720W (12V battery); 1440W (24V battery); 2160W (36V battery); 2880W (48V battery)(80A)960W (12V battery); 1920W (24V battery); 2880W (36V battery); 3840W (48V battery)(100A)1200W (12V battery); 2400W (24V battery); 3600W (36V battery); 4800W (48V battery)6 ~ Gel battery, lead-acid battery, lithium iron phosphate battery, water battery7 ~ With multiple protection functions such as overvoltage protection, overcurrent protection and overtemperature protectionUser Noti:

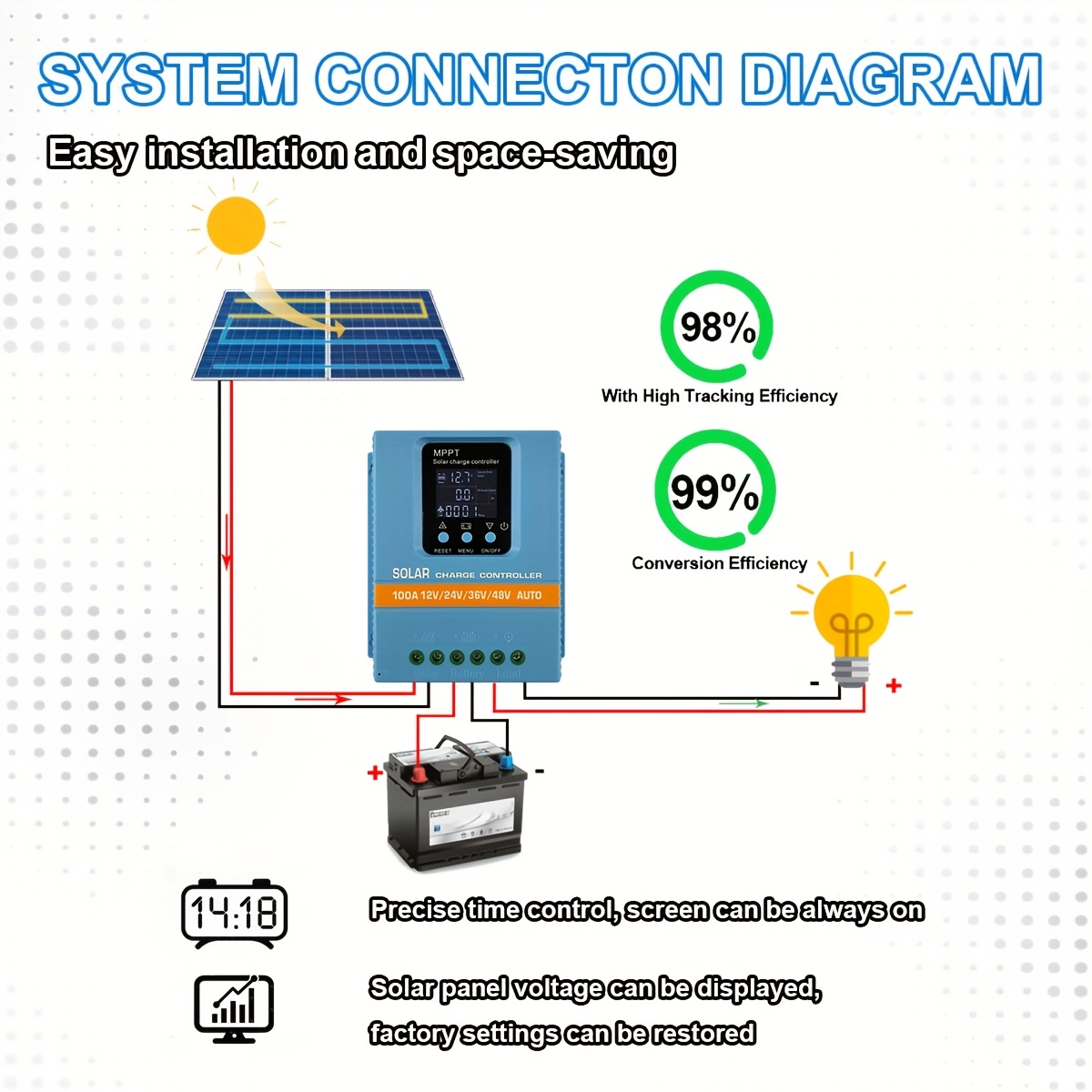

1. How to connect our controller?(1) Connect the battery to the controller. It is recommended to add an air For Switch between the controller and the battery to protect the controller and the battery. When the controller is connected to the battery, the LCD screen will display the parameters and then set the battery type.(2) If DC output is required to control the load, please set the output control mode first and then turn on the DC output disconnect For Switch.
