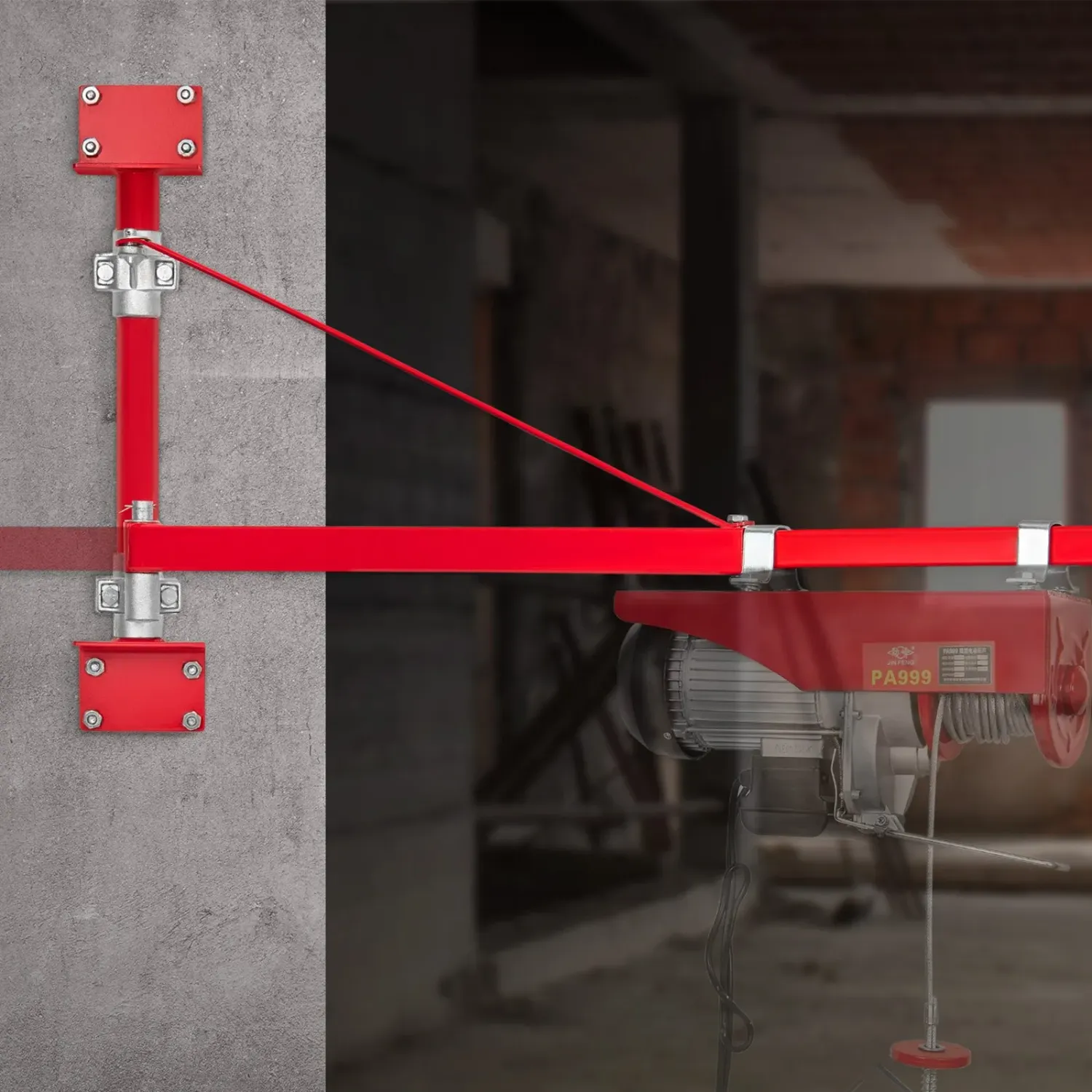

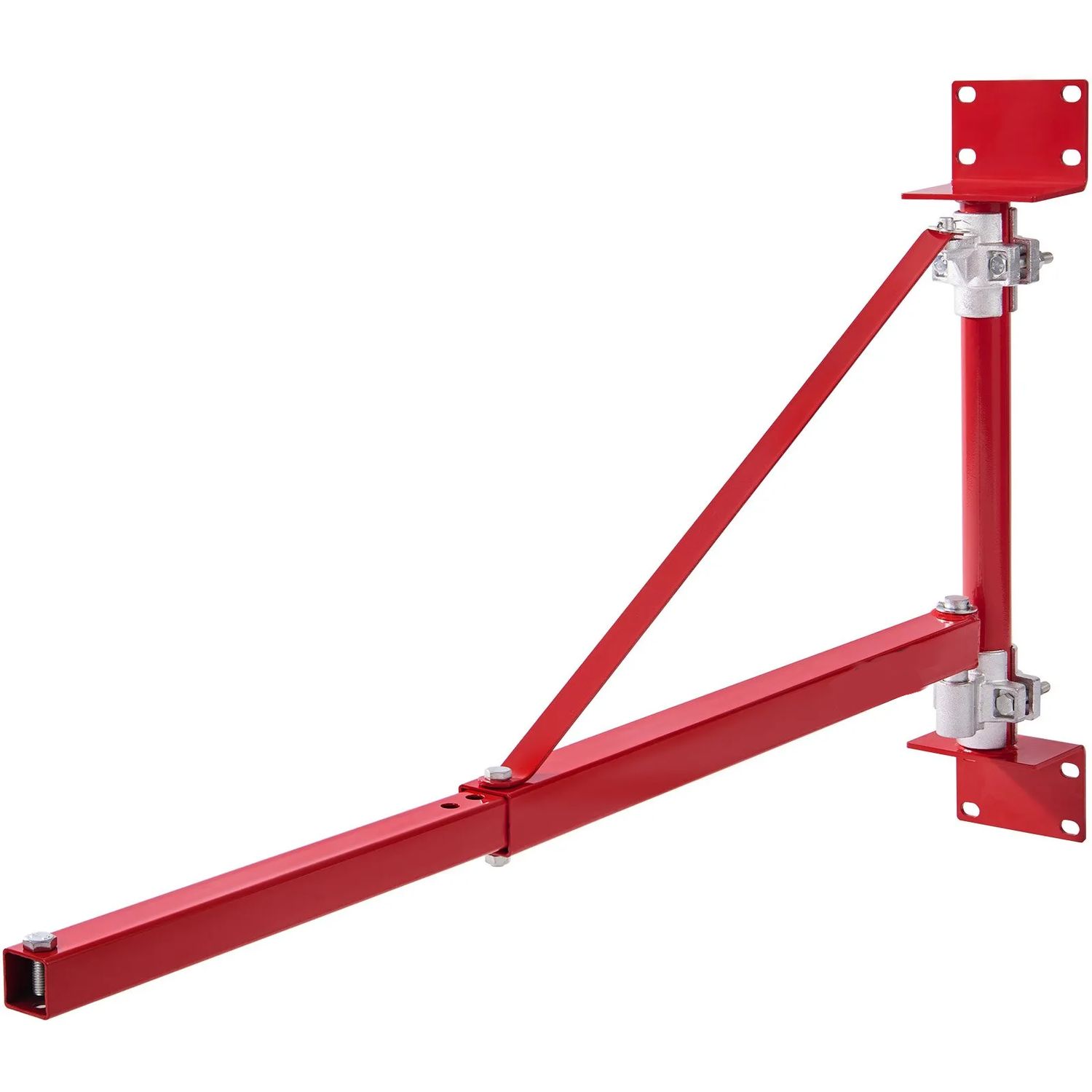

Make lifting and material handling more convenient with the Electric Hoist Support Arm, a heavy-duty steel mounting arm designed to support compatible electric hoists in workshops, garages, warehouses, factories, and maintenance areas.

Constructed from industrial-grade carbon steel, this support arm features a reinforced triangular structure, thickened steel plates, and a protective surface coating for durability in demanding working environments. Its 180-degree rotation allows the arm to swing across a wider working area, helping reduce the need to reposition equipment during lifting tasks.

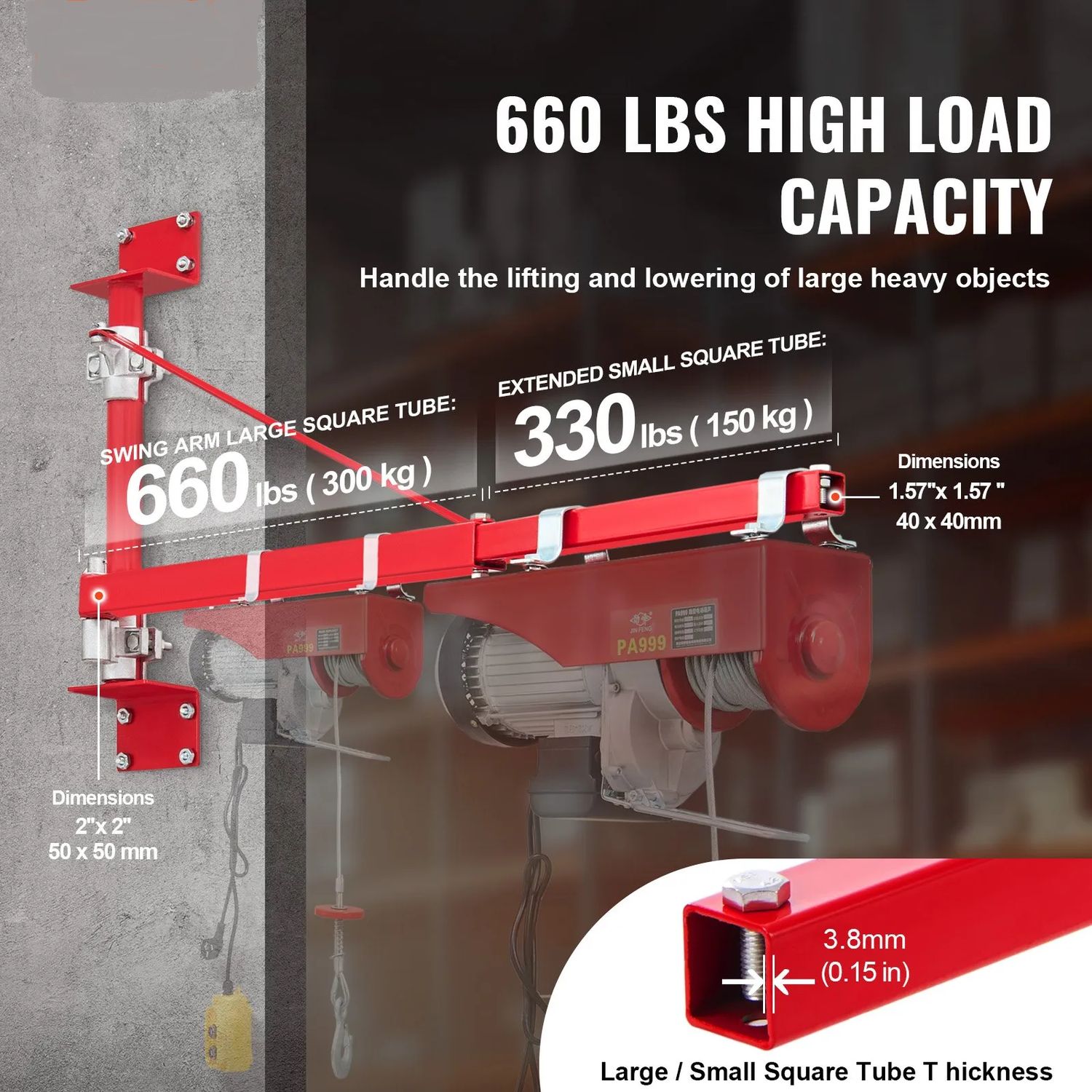

The large square-tube section has a stated load capacity of up to 300 kg, while the extended small square-tube section has a stated capacity of up to 150 kg. These are separate component ratings and should not be interpreted as a combined lifting capacity.

Designed for convenient assembly, the HST-750 offers a practical mounting solution for compatible electric hoists used in equipment maintenance, workshop lifting, and general material handling.

Features

• Heavy-Duty Load Support: The large square-tube section has a stated capacity of up to 300 kg, subject to the manufacturer's installation and load-rating conditions.

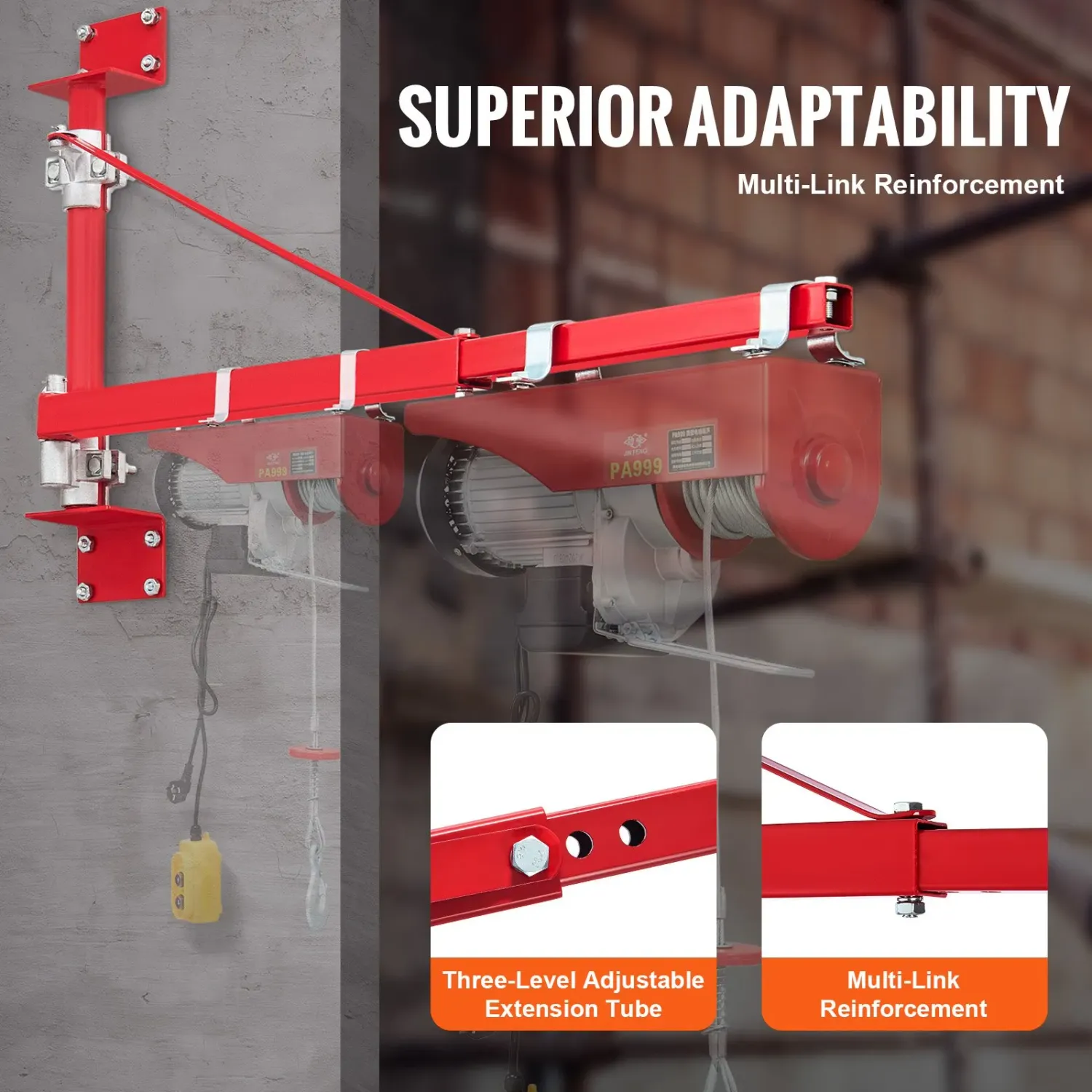

• Extended Tube Capacity: The extended small square-tube section has a stated capacity of up to 150 kg.

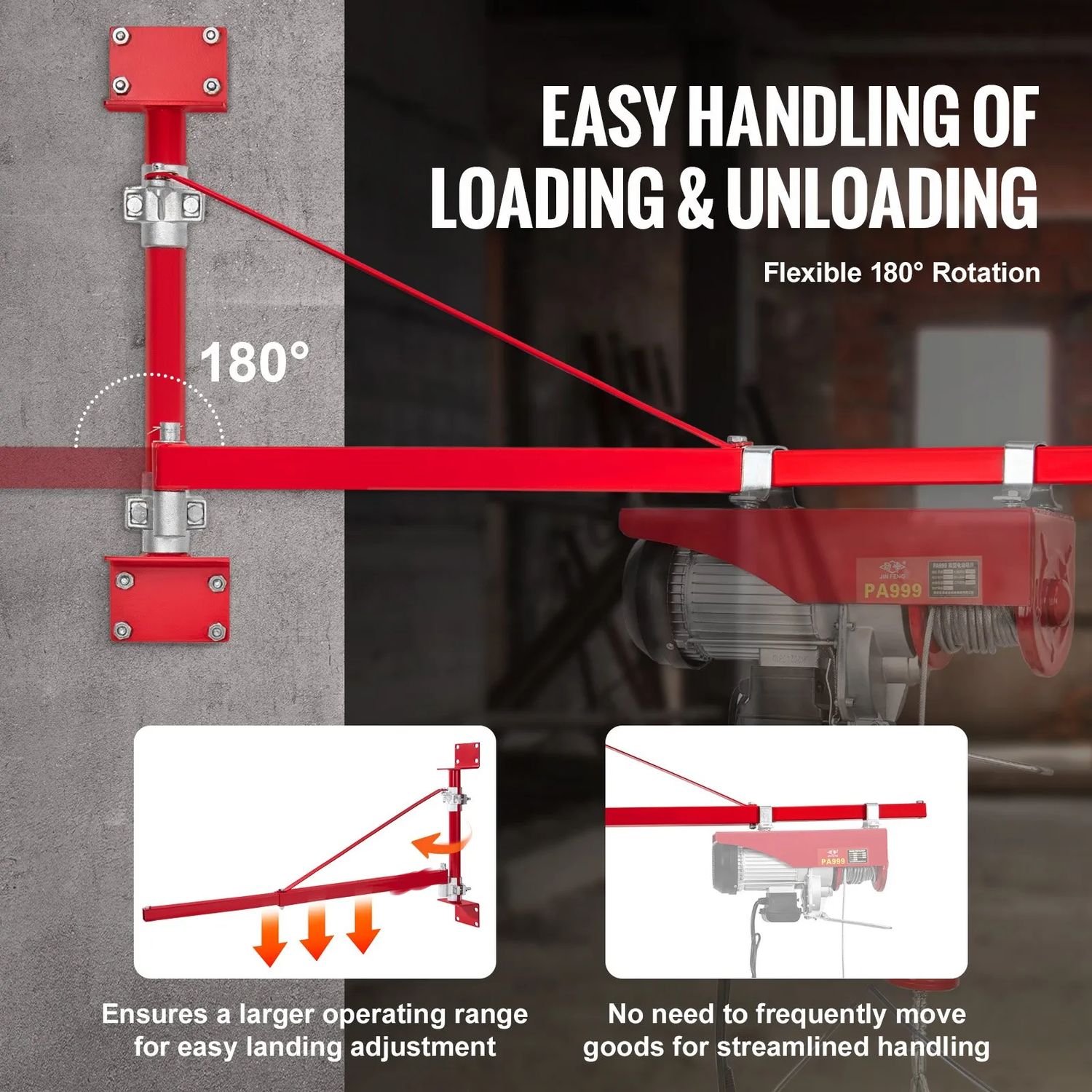

• 180° Rotating Design: Allows the support arm to swing through a wide working arc for improved lifting access.
• Industrial-Grade Carbon Steel: Built with a sturdy steel construction for demanding workshop and industrial applications.

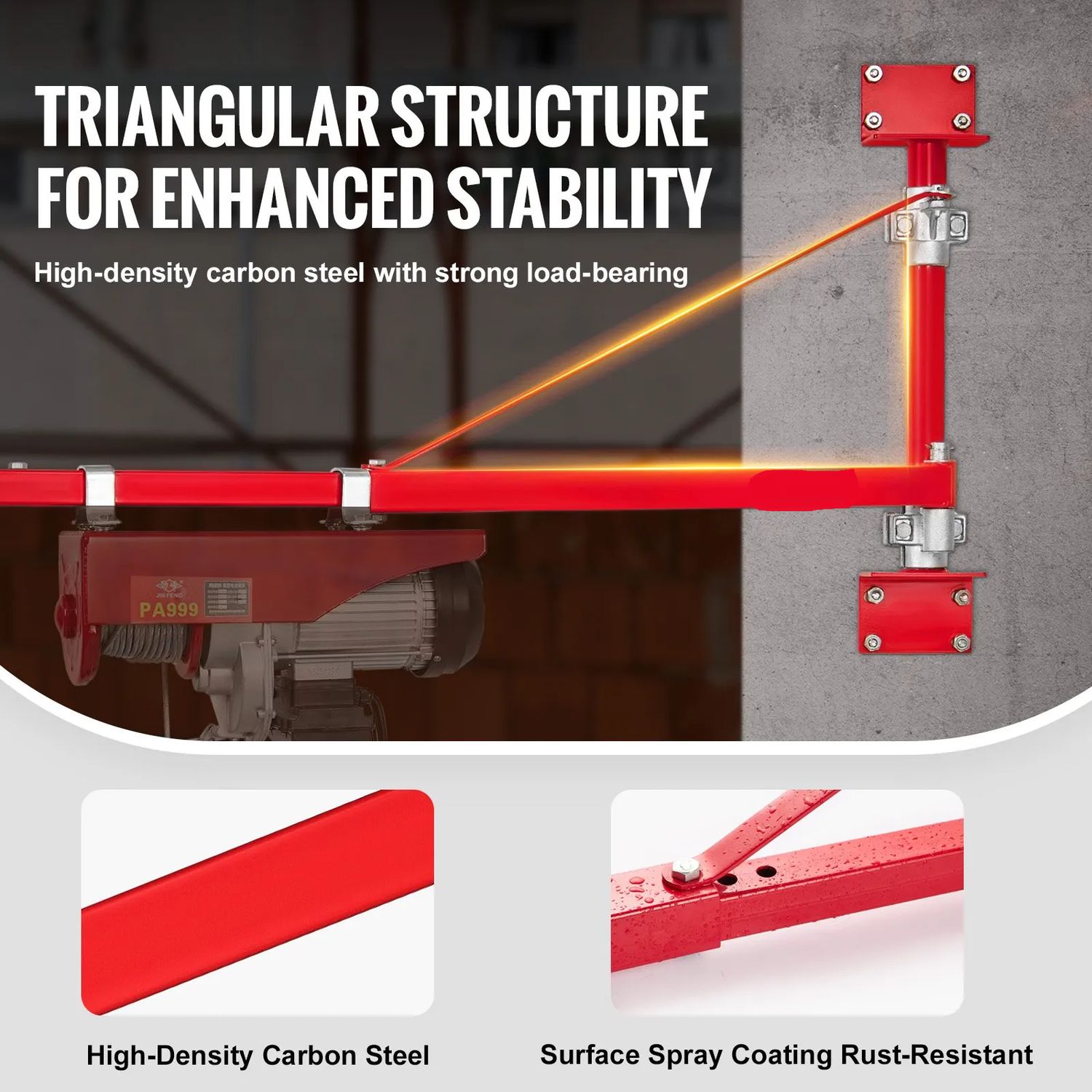

• Reinforced Triangular Structure: Designed to improve structural stability and support.
• Thickened Steel Plates: Help reduce unwanted movement when the arm is correctly installed and loaded within its rated limits.
• Protective Surface Coating: Helps resist moisture and surface corrosion.
• Security Latches: Help secure compatible components in position.

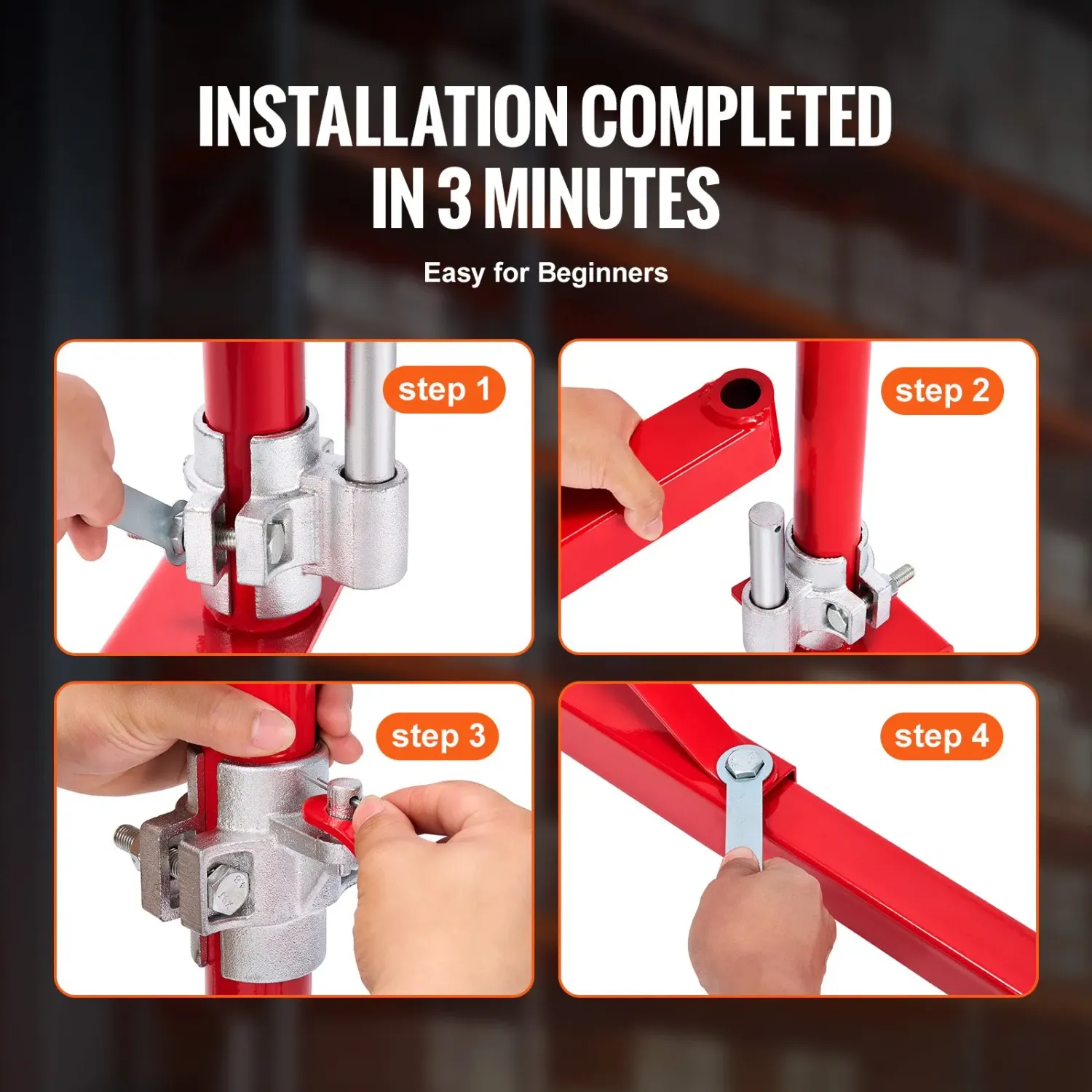

• Convenient Assembly: Designed for straightforward assembly using the manufacturer's instructions.
• Versatile Applications: Suitable for compatible lifting setups in garages, repair workshops, warehouses, factories, and renovation environments.

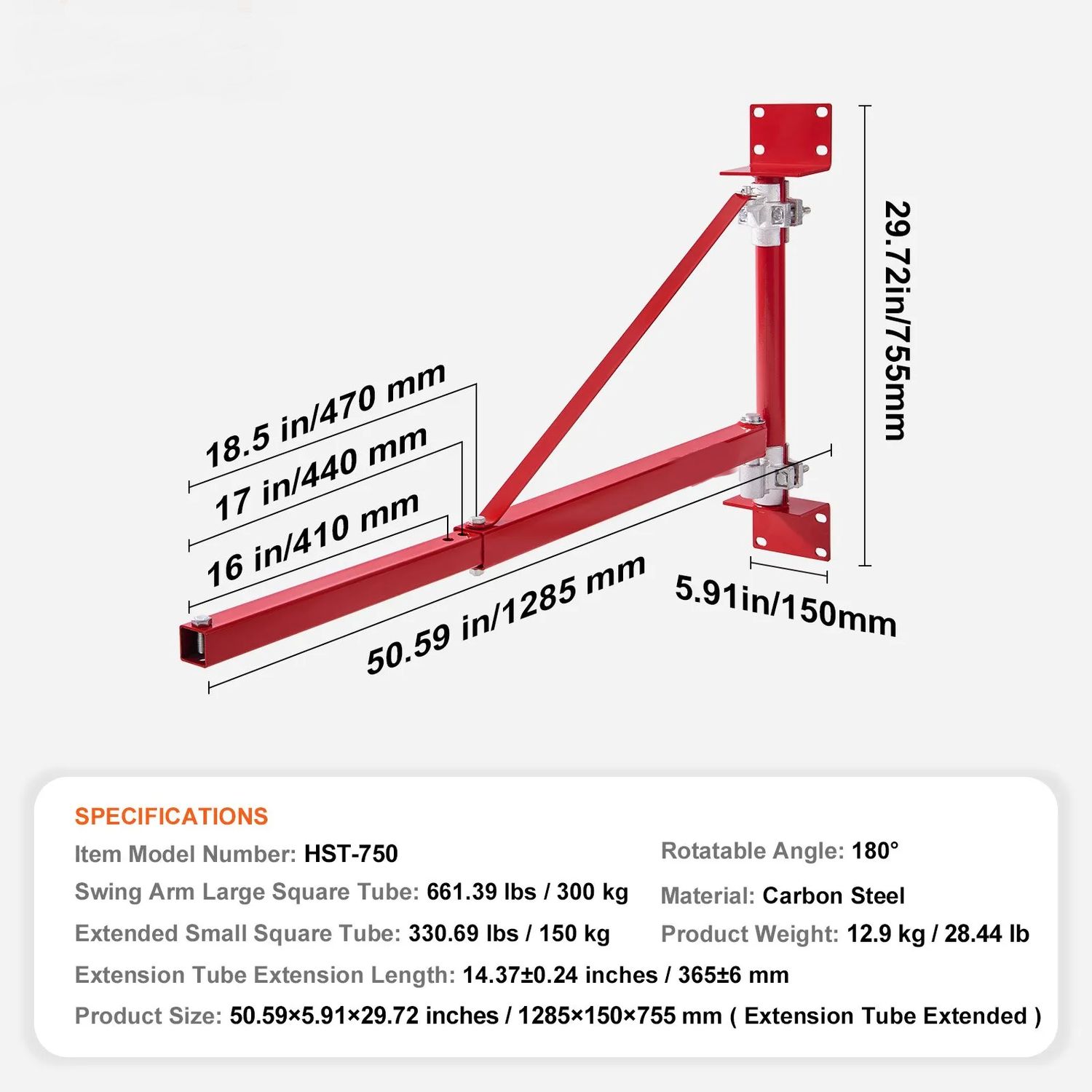

Technical Specifications

• Product Name: Electric Hoist Support Arm
• Product Type: Rotating Hoist Support Arm / Jib Arm
• Material: Carbon Steel
• Large Square-Tube Stated Capacity: 300 kg (661.39 lb)
• Extended Small Square-Tube Stated Capacity: 150 kg (330.69 lb)
• Extension Tube Length: 365 ± 6 mm (14.37 ± 0.24 inches)
• Rotatable Angle: 180°
• Structure: Reinforced triangular design
• Surface Finish: Protective coating
• Installation: Assembly required
• Intended Equipment: Compatible electric hoists, subject to mounting and load requirements
• Applications: Workshops, garages, factories, warehouses, and maintenance areas

Dimensions & Weight

• Extension Tube Length: 365 ± 6 mm
• Rotation Range: 180°

Package Includes

• 1 × HST-750 Electric Hoist Support Arm Assembly
• Mounting and assembly hardware
• Installation instructions
