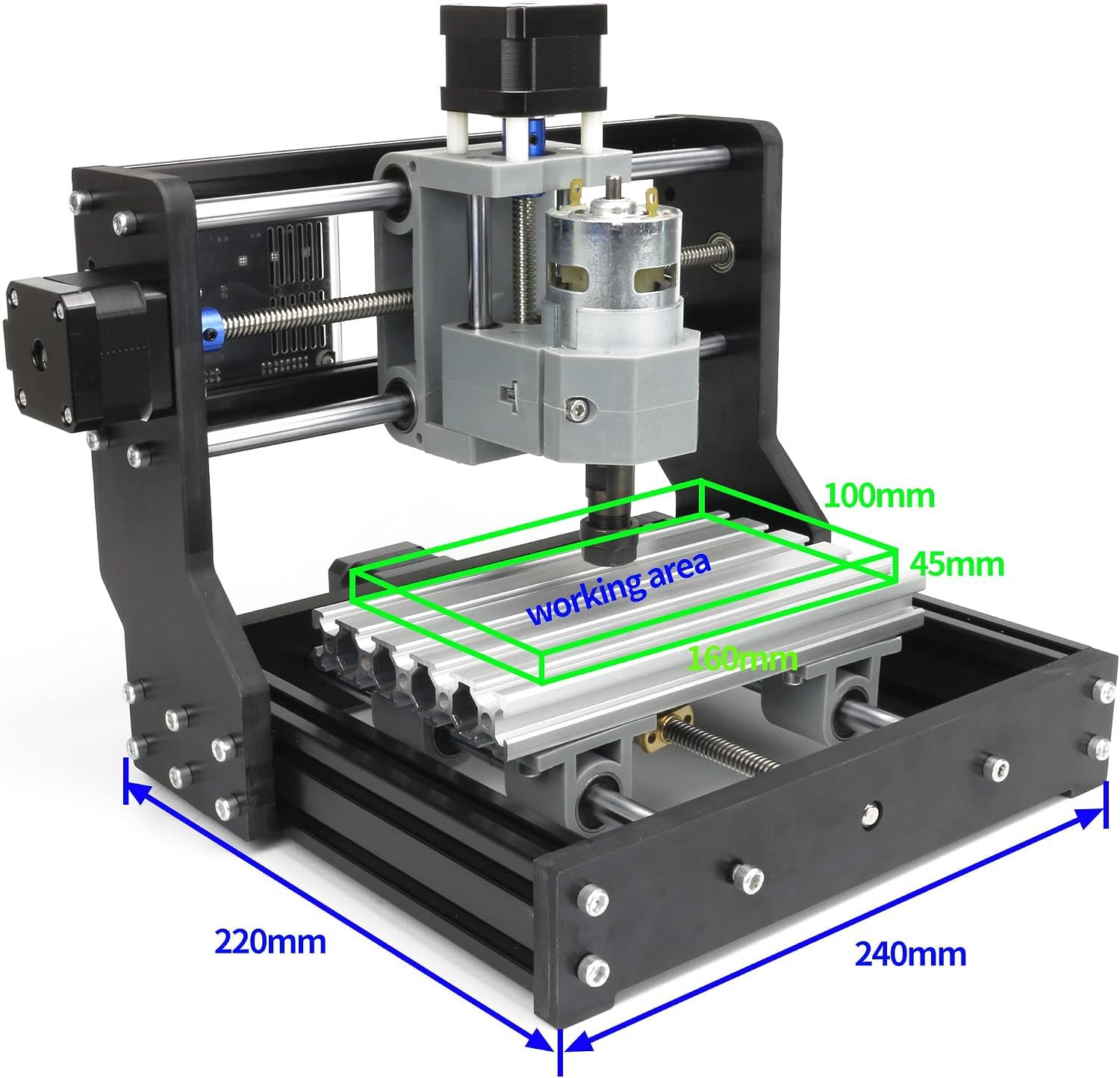

• PACKAGE INCLUDES - 1 piece 1610 per engraving machine (accessories as shown), working area 18x10x4.5cm, housing dimensions 30x26x25cm. The CNC1610 PRO machine is very easy to install and has a stable structure. Our package also contains an English instruction manual.
• BASIC PARAMETERS - Spindle motor: (12-36V) 24V, 120W, 10000U / min; 42 / Nema 17 stepper motor: nominal current 1.3A, holding torque 0.25Nm, phase resistance 2.1Ohm.
• REQUIRED SYSTEM - Engraving machine supports Windows XP, Win7, not supports Win8, Win10 (32/64). The machine cannot work with Apple products.
• OPTIMIZED VERSION - Mini CNC machine, small size, light weight, USB interface, GRBL control systems, great beginner CNC milling machine.

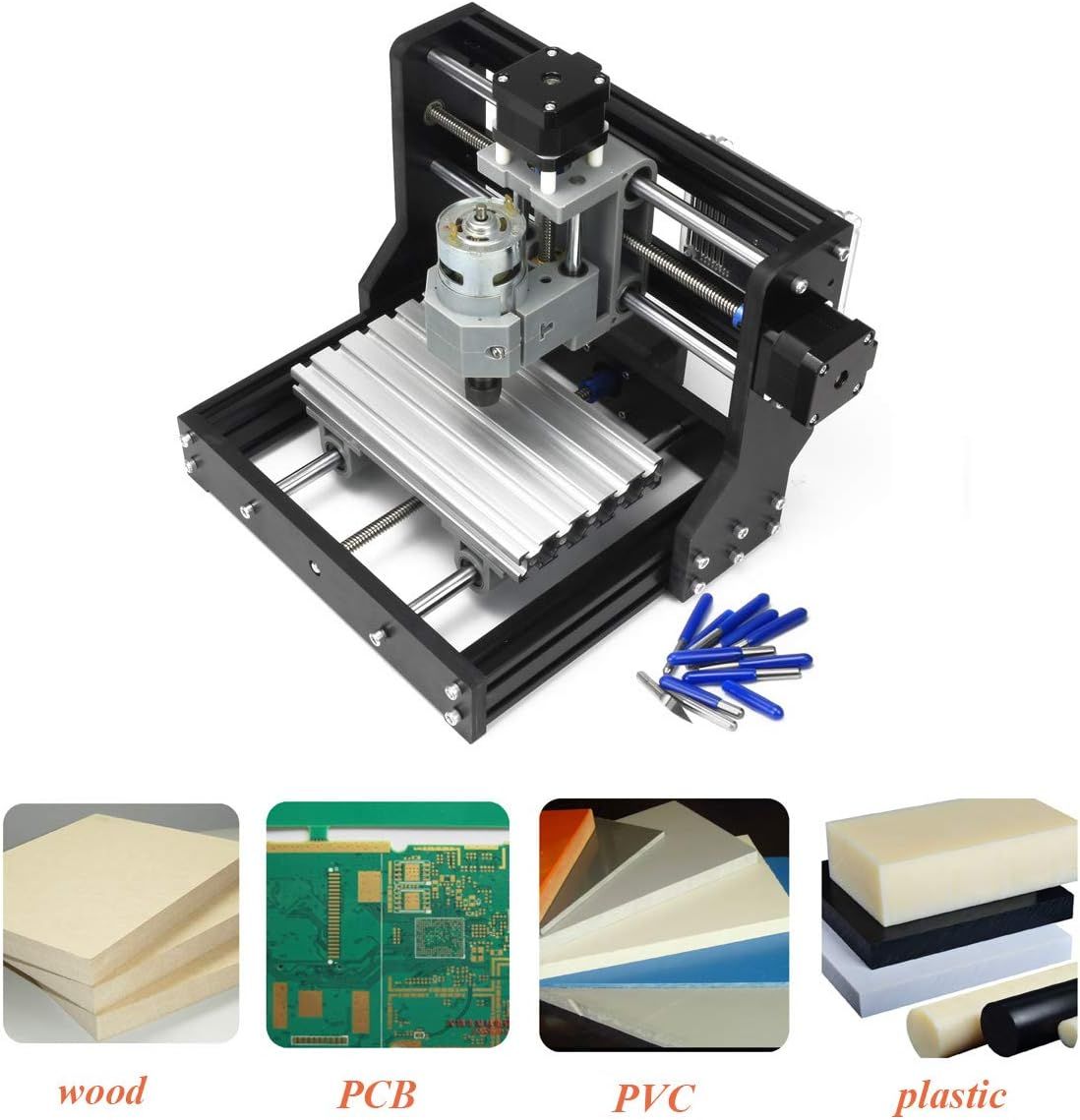

• APPLICATIONS - The 1610 Pro Engraving Machine is perfectly used for engraving PVC, PCB, wood, acrylic or soft metal such as bell and copper. Our package includes a 4G USB flash drive, user manual and GRBL software.

Product description

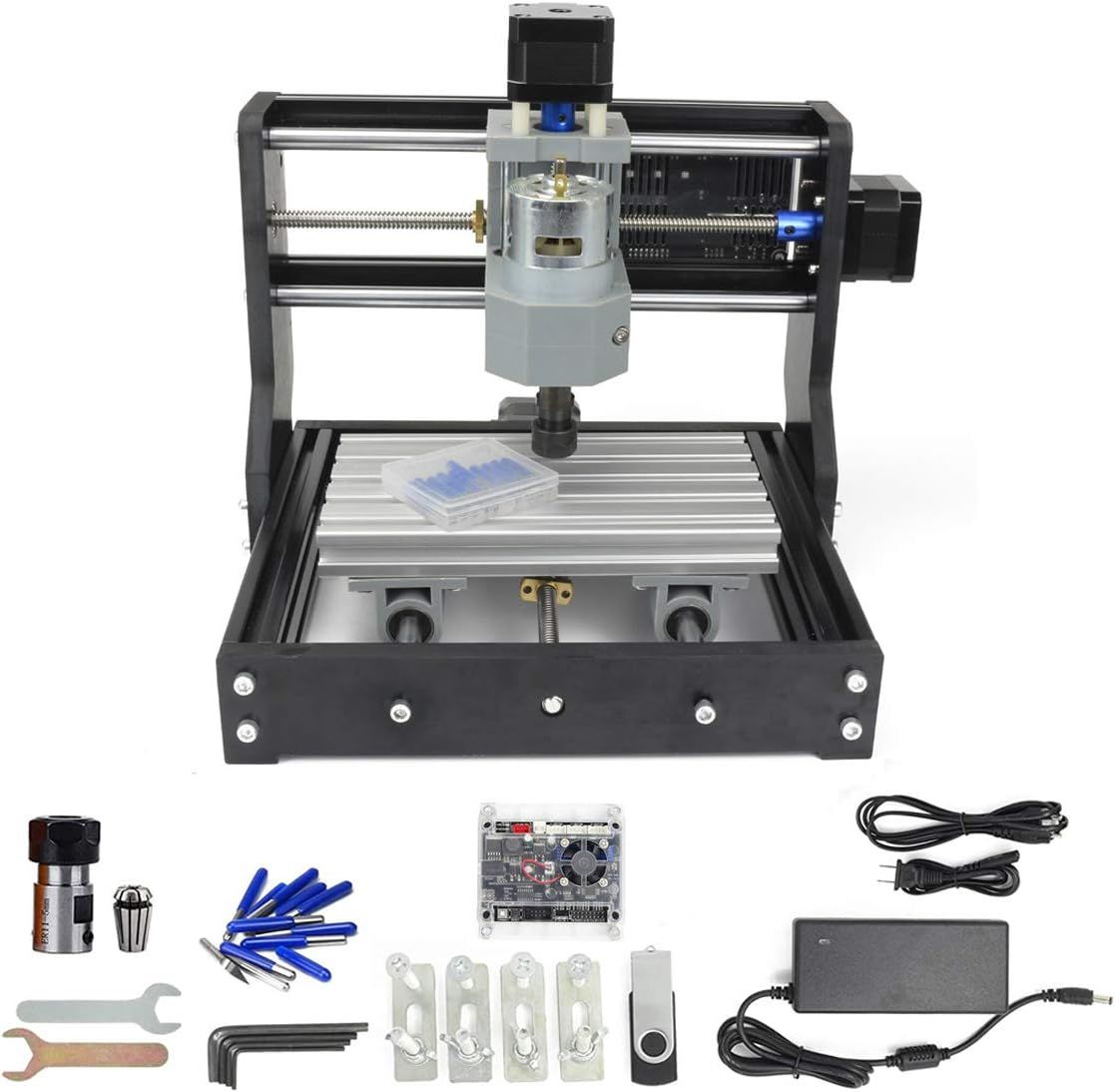

Package include:
1 set 1610 Pro CNC router with ER11 collet

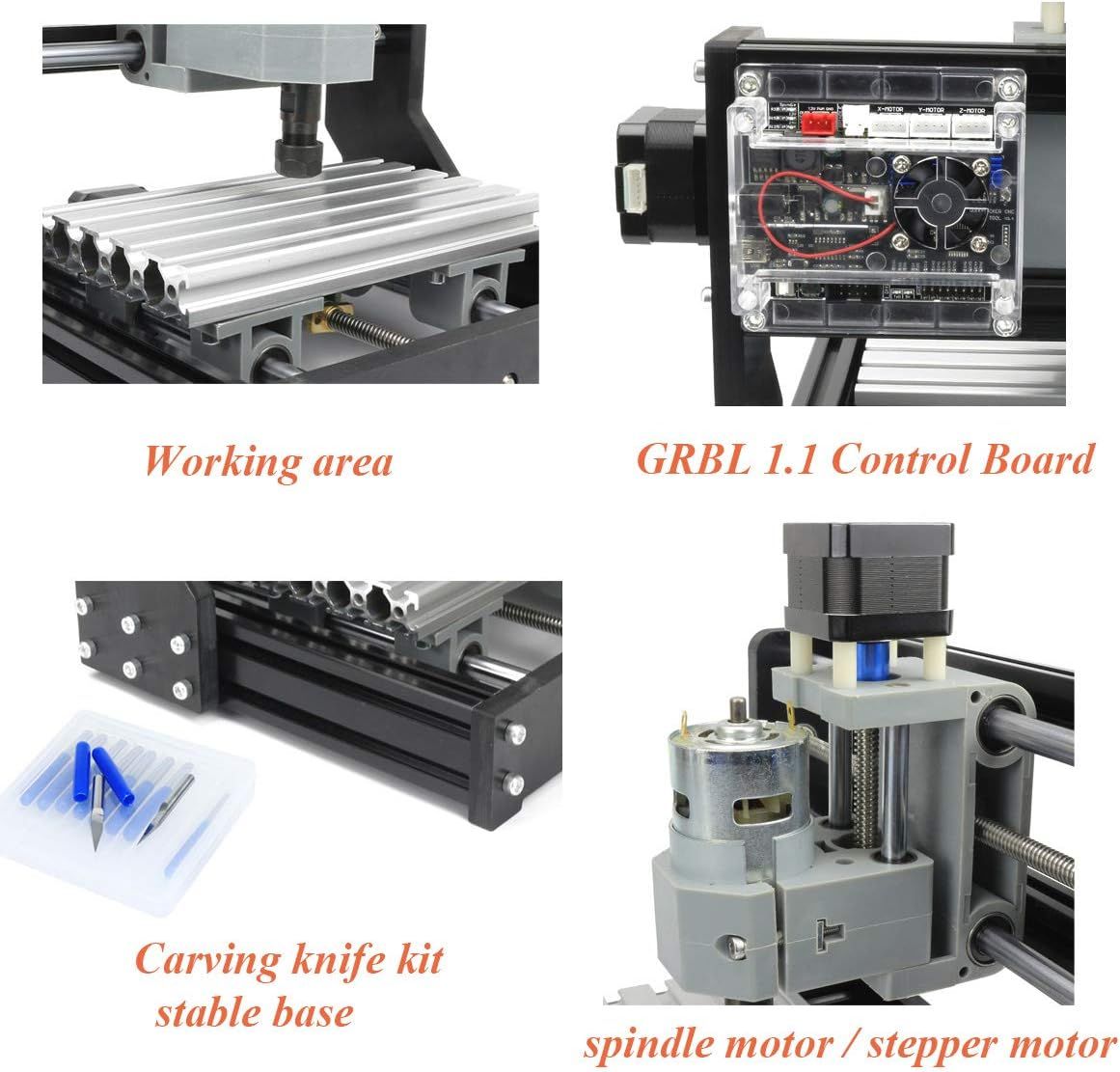

1 x GRBL 1.1 control card
v1 x power supply
10 x 20 ° 0.1 mm drill bits
Allen key
1 x 4G USB stick contains English user manual and GRBL software
√Software: GRBL controller, UniversalGcodeSender
Input voltage: 12-24VDC
Spindle PWM speed: support
Support stepper motor: 12V, maximum current of 2A (any stepper motor 42, 57)
Power interface: 5.5-2.5mm DC interface
Supporting file: G-Code (.nc / .txt / .tape / .gcode) Processing accuracy: approx. 0.2 mm
