Adjustable Speed Drive - 220V Single Phase Input to 3 Phase Output Frequency Converter, VFD for Precise Motor Control and Enhanced Efficiency in Various Applications
SKU 01549
€99.00
In Stock - Dispatched Today
Power Wattage: 220V 1 Phase Input - 3 Phases Output
Estimated delivery time
Shipping: in 3 days
In stock
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Adjustable Speed Drive - 220V Single Phase Input to 3 Phase Output Frequency Converter, VFD for Precise Motor Control and Enhanced Efficiency in Various Applications
Product Details
|

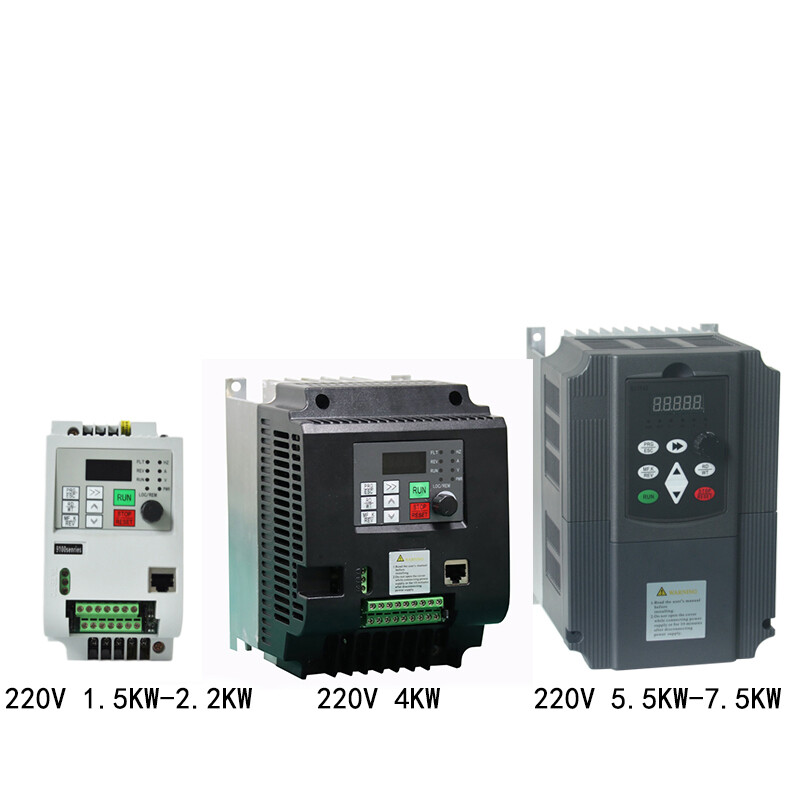

Type |

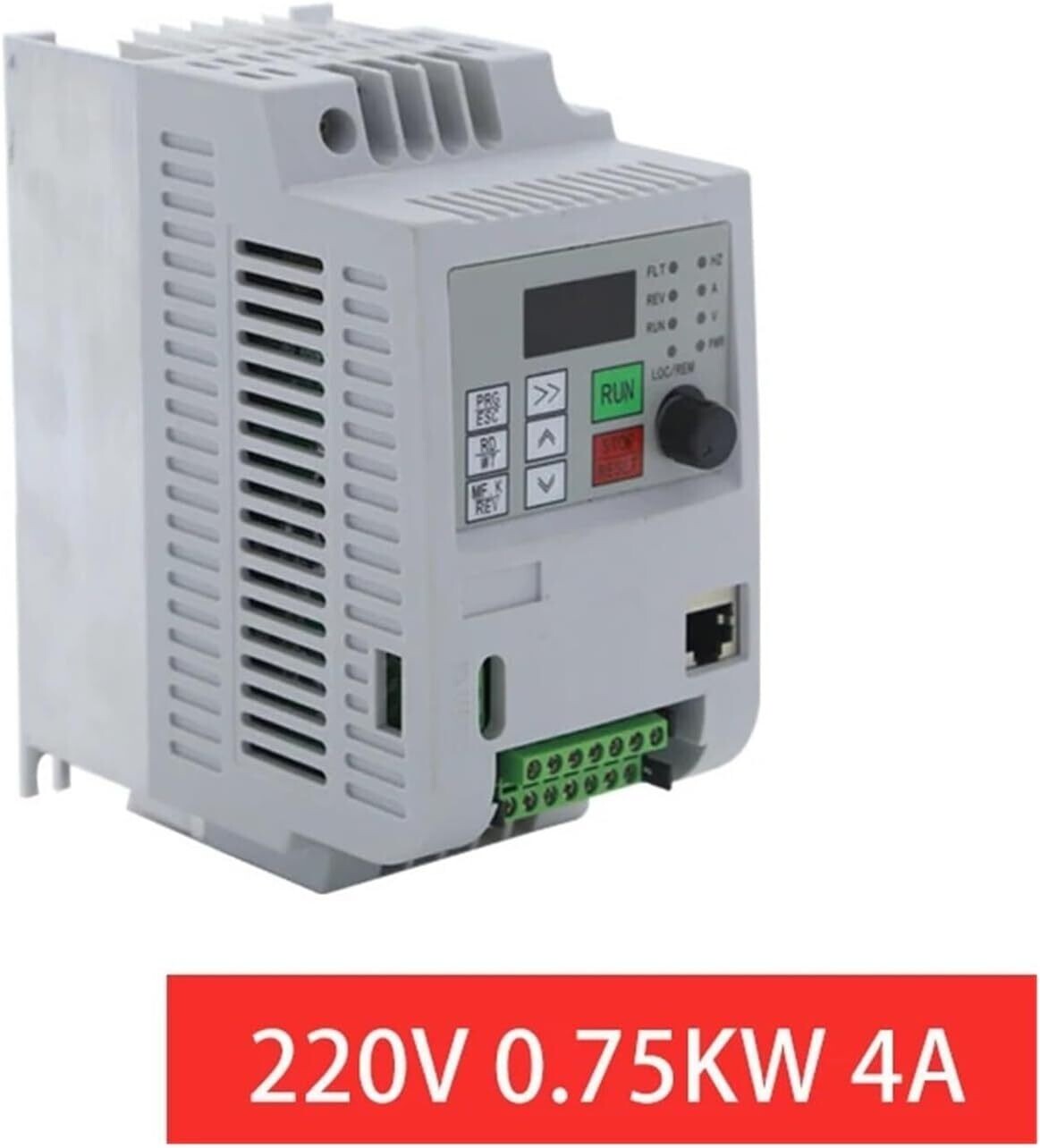

0.75kw 220v VFD |

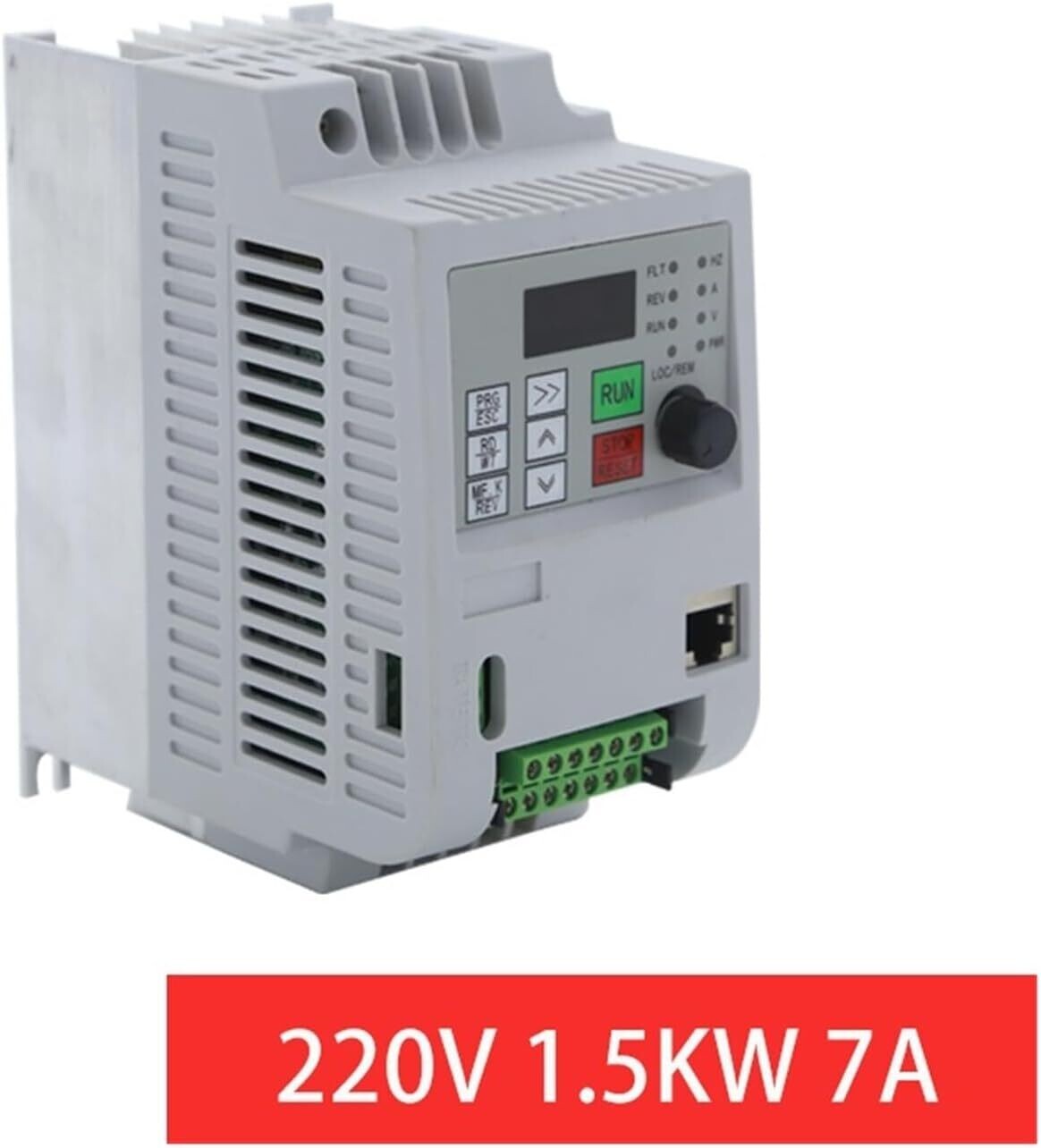

1.5kw, 220v VFD |
2.2kw, 220v VFD |

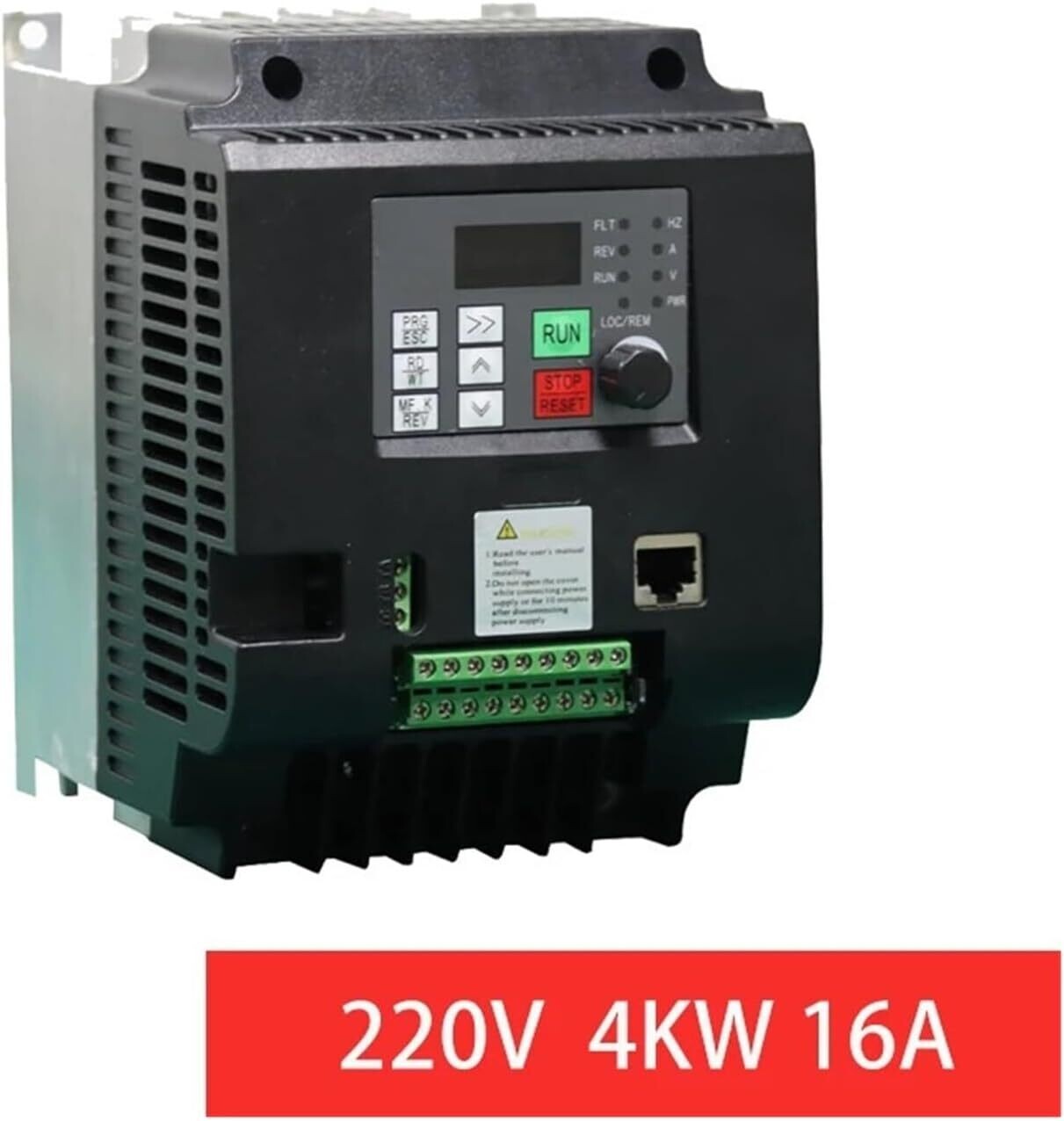

4kw,, 220v VFD |
5.5kw-7.5kw,, 220v VFD |
|
Input Voltage |
220V(+/-15%) |
220V(+/-15%) |
220V(+/-15%) |
220V(+/-15%) |
220V(+/-15%) |
|
Output Voltage |
220VAC |
220VAC |
220VAC |
220VAC |
220VAC |
|
Input Frequency |
50/60Hz |
50/60Hz |
50/60Hz |
50/60Hz |
50/60Hz |
|
Output Frequency |
0~400Hz |
0~400Hz |
0~400Hz |
0~400Hz |
0~400Hz |
|
Rated current |
4A |
7A |
10A |
16A |
20A |
|
Input Phase |
1 phase |
1 phase |
1 phase |
1 phase |
1 phase |
|
Output Phase |
3 phase |
3 phase |
3 phase |
3 phase |
3 phase |
Product Introduction
Function advantages:

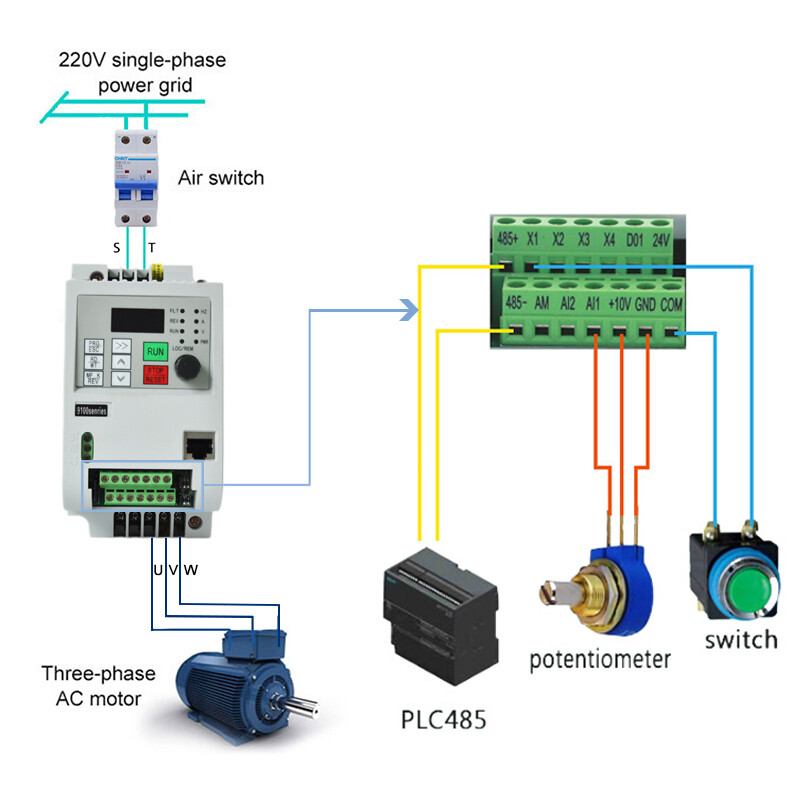

1. Forward, reverse, start and stop controlled by panel or external terminals.
2. Adjust speed by panel potentiometer or external potentiometer.
3. Built-in brake unit (for connecting brake resistance).
4. PID function (Constant pressure water supply).
5. Multi-stage run.
6. RS485 communication protocol by PLC.
7. Vector control, low frequency high torque.

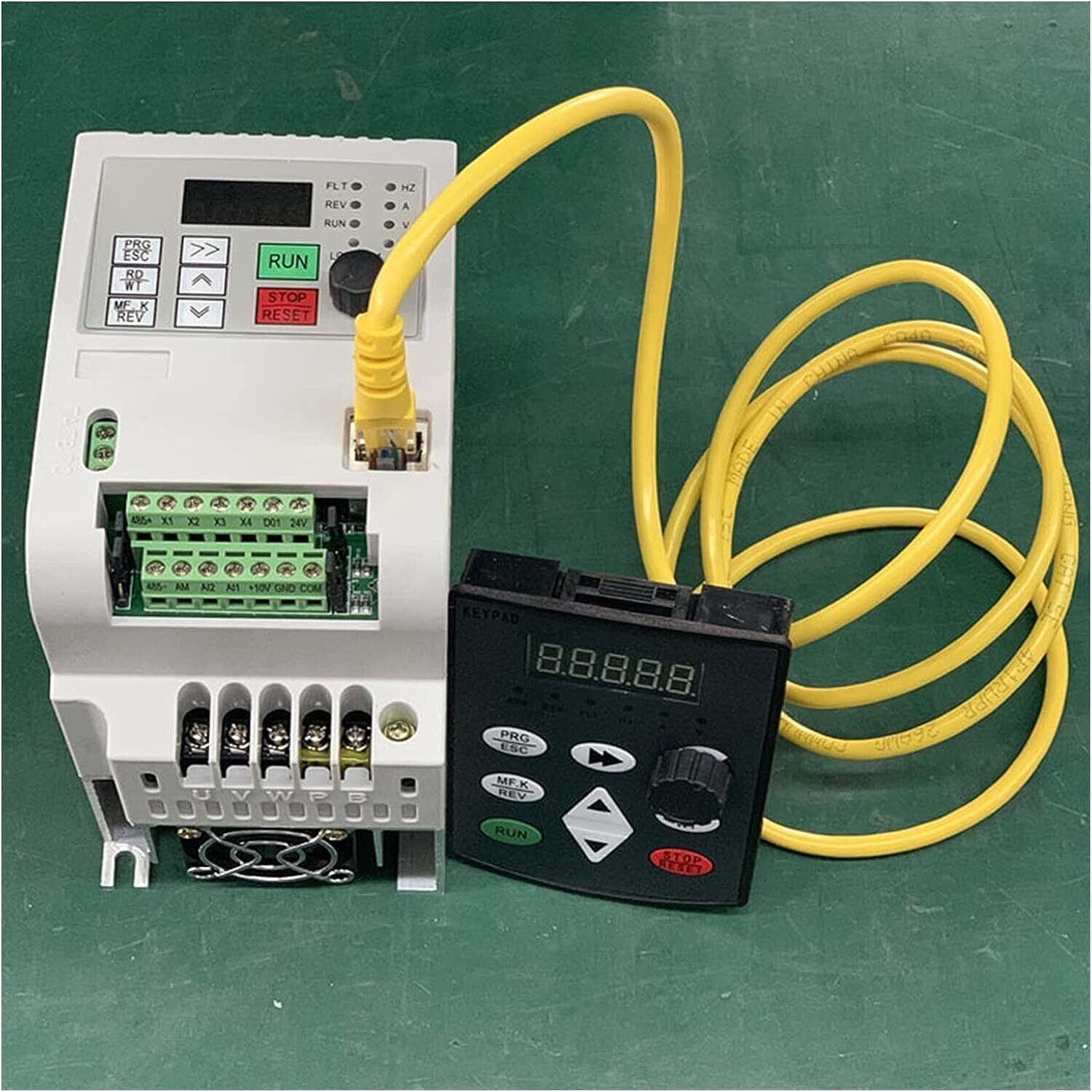

8. Optional external control panel(not included in the package).
9. Overload protection.
Specification

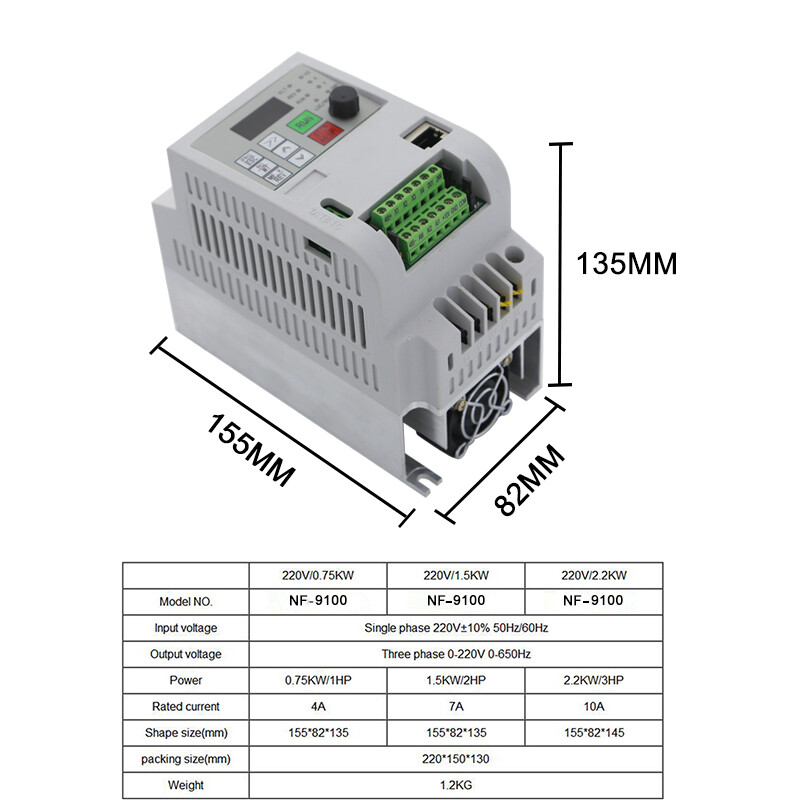

- Rated power: 0.75kw/1.5kw/2.2kw (for 220V to 220V type)Rated output current: 4A(for 0.75kw)/7A(for 1.5kw)/9.6A(for 2.2kw)Input voltage: 1 phase 220vOutput voltage: 3 phase 220vInstallation dimension: 130x73mmExternal dimension: 145x110x85mmMounting hole dimension: 61x81mmNet Weight: 1kg

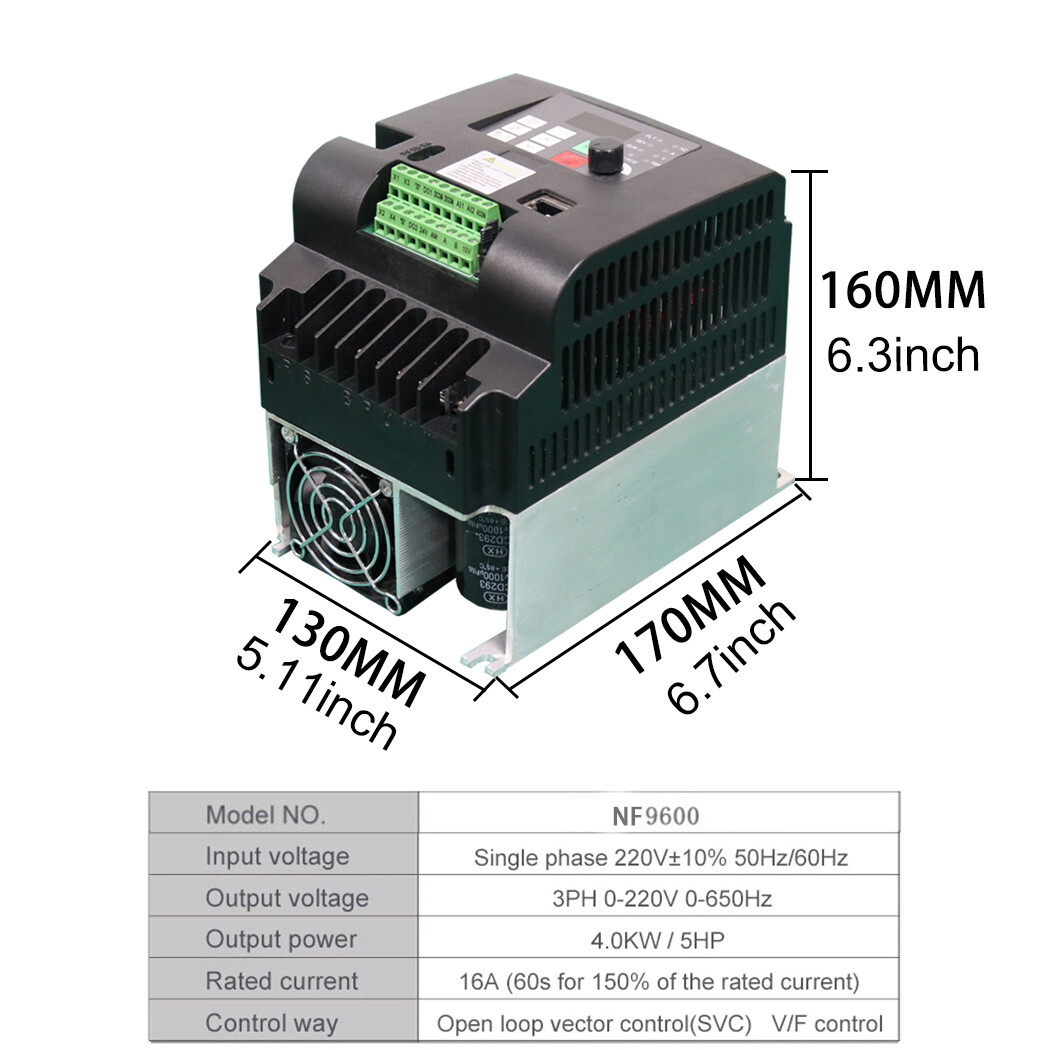

- Rated power: 3.7kw (for 220V to 220V type)Rated output current: 16AInput voltage: 1 phase 220vOutput voltage: 3 phase 220vInstallation dimension: 170x85mmExternal dimension: 180x120x95mmMounting hole dimension: 61x81mmNet Weight: 1.4kg
- Rated power: 0.75kw/1.5kw/2.2kw (for 380V to 380V type)Rated output current: 2.1A(for 0.75kw)/3.8A(for 1.5kw)/5.1A(for 2.2kw)Input voltage: 3 phase 380vOutput voltage: 3 phase 380vInstallation dimension: 130x73mmExternal dimension: 145x110x85mmMounting hole dimension: 61x81mmNet Weight: 1kg
- Rated power: 3.7kw/5.5kw (for 380V to 380V type)Rated output current: 9A(for 3.7kw)/13A(for 5.5kw)Input voltage: 3 phase 380vOutput voltage: 3 phase 380vInstallation dimension: 170x85mmExternal dimension: 180x120x95mmMounting hole dimension: 61x81mmNet Weight: 1.4kgs
- Rated power: 7.5kw/11kw (for 380V to 380V type)Rated output current: 17A(for 7.5kw)/25A(for 25kw)Input voltage: 3 phase 380vOutput voltage: 3 phase 380vExternal dimension: 240x107x154mmNet Weight: 2.5kgs / 2.6kgs Rated power: 0.75kw/1.5kw/2.2kw (for 220V to 380V type)Rated output current: 2.1A(for 0.75kw)/3.8A(for 1.5kw)/5.1A(for 2.2kw)Input voltage: 1 phase 220vOutput voltage: 3 phase 380vInstallation dimension: 130x73mmExternal dimension: 145x110x85mmMounting hole dimension: 61x81mmNet Weight: 1kg
- Rated power: 3.7kw/5.5kw (for 220V to 380V type)Rated output current: 9A(for 3.7kw)/13A(for 5.5kw)Input voltage: 1 phase 220vOutput voltage: 3 phase 380vInstallation dimension: 170x85mmExternal dimension: 180x120x95mmMounting hole dimension: 61x81mmNet Weight: 1.4kgs
Technical Details
01 V/F control, vector control and output torque control;02 Built-in RS-485 communication interface
03 Compact size, easy to install;
04 With a speed potentiometer and external panel;
05 Built-in synchronous control and proportional synchronization control;
06 16 speed control modest,Can run automatically;
07 Can choice multiple running commands or frequency channel;
08 Can be achieve Part or all of the keys locked(Analog potentiometer unlock);
09 Relay normally open or closed and two high configuration output have 100 kinds of ways optional;
10 6 digital opto-isolated inputs, 100 kinds of ways optional;
11 3 analog input, 1 analog output channel;
12 Having textile pendulum frequency function, It can be widely applications for many kinds of textile
equipment;
13 Built-in user timer / counter;
14 Built-in PID regulation function to facilitate the realization of closed loop control of the temperature,
pressure and tension.
15 At zero speed time,can be achieve output 0-100% of Adjustable torque,With zero speed brake
function,instead foreign inverter application on freight elevator and crane.Shipping: Nationwide
Condition: New
Delivery: 2 to 5 business days
