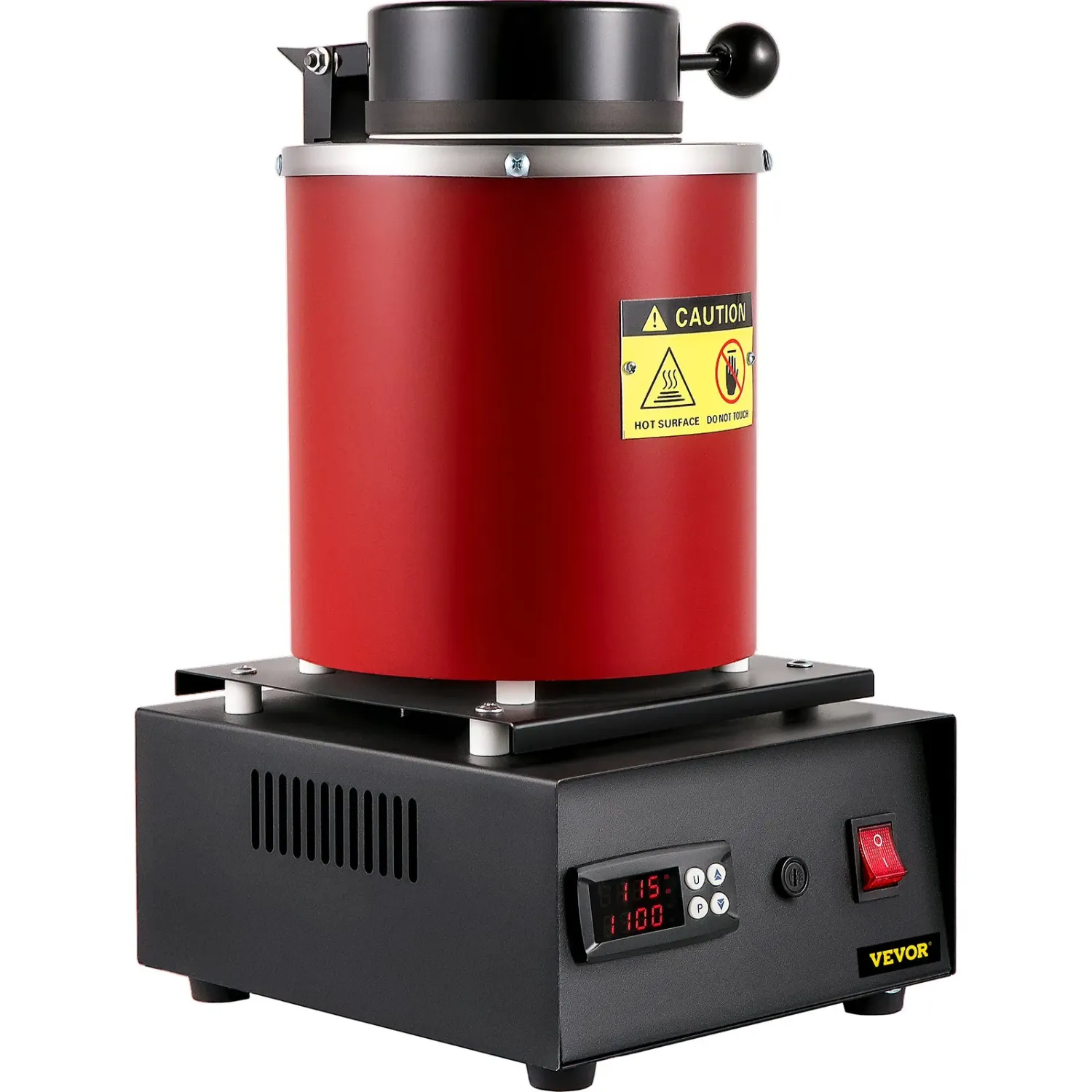

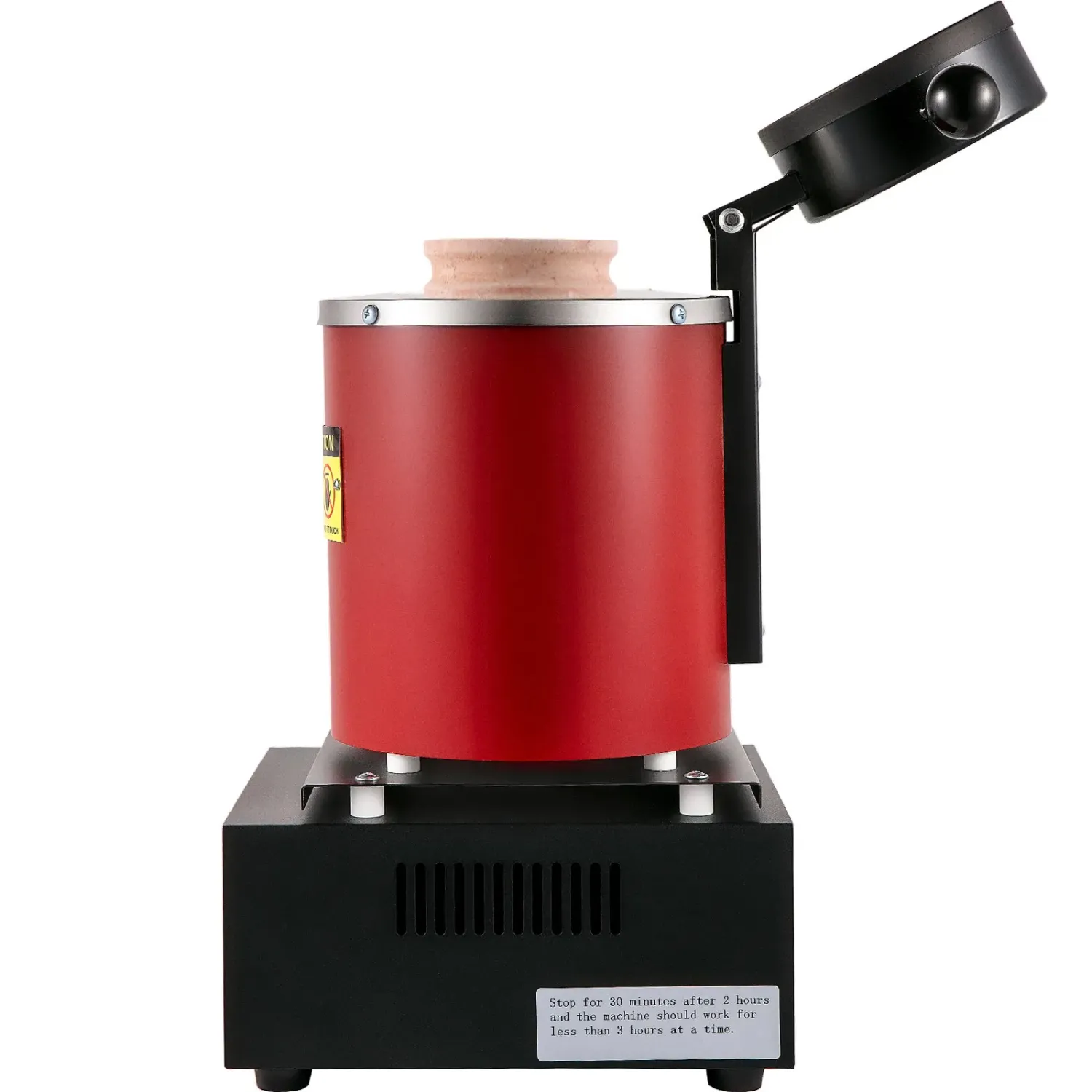

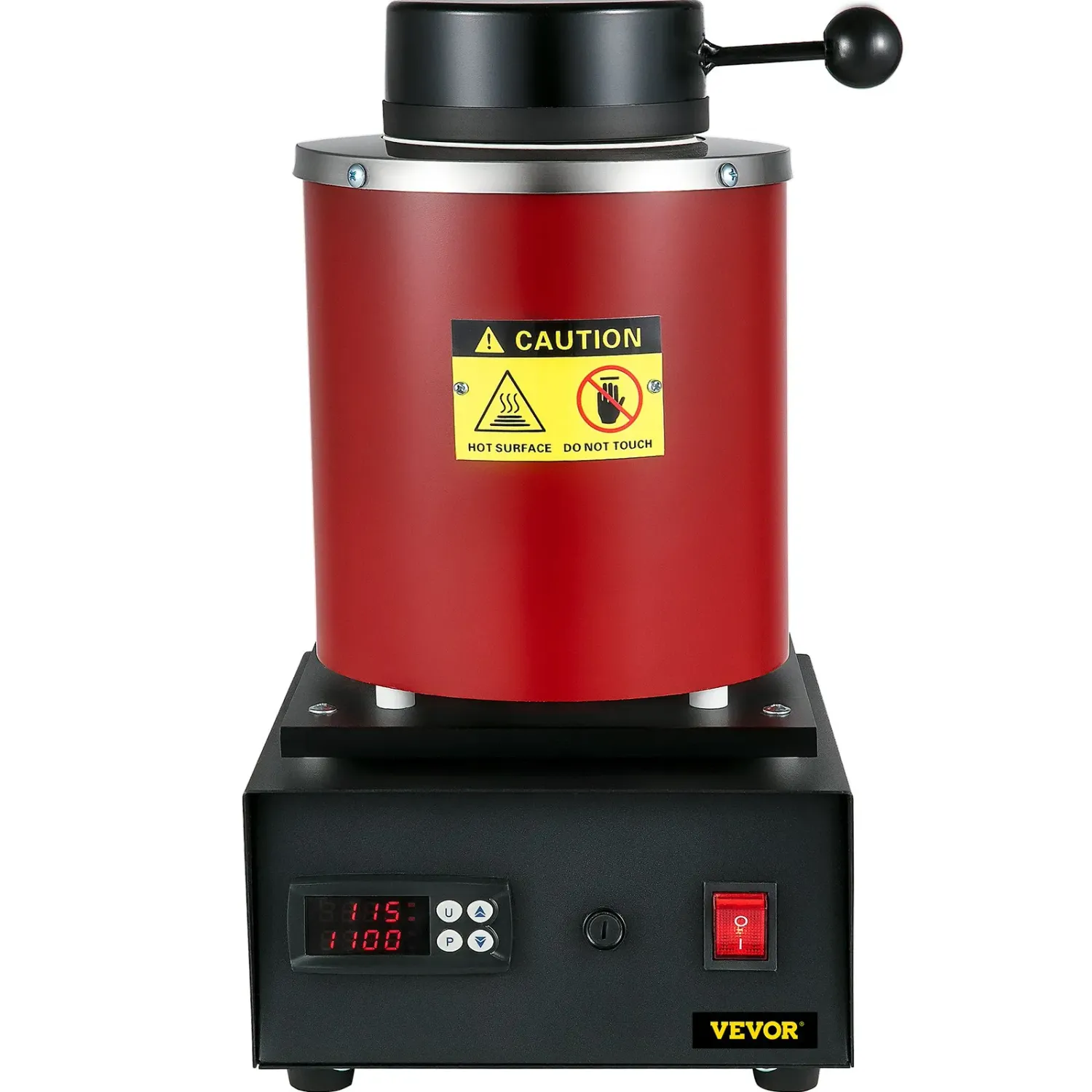

Process and melt suitable metals efficiently with this 3KG Electric Metal Melting Furnace, designed for workshop, craft and industrial applications. With a 1350W heating element and a maximum temperature of 1150°C, this digital melting furnace provides controlled high-temperature heating for suitable metal-melting applications.

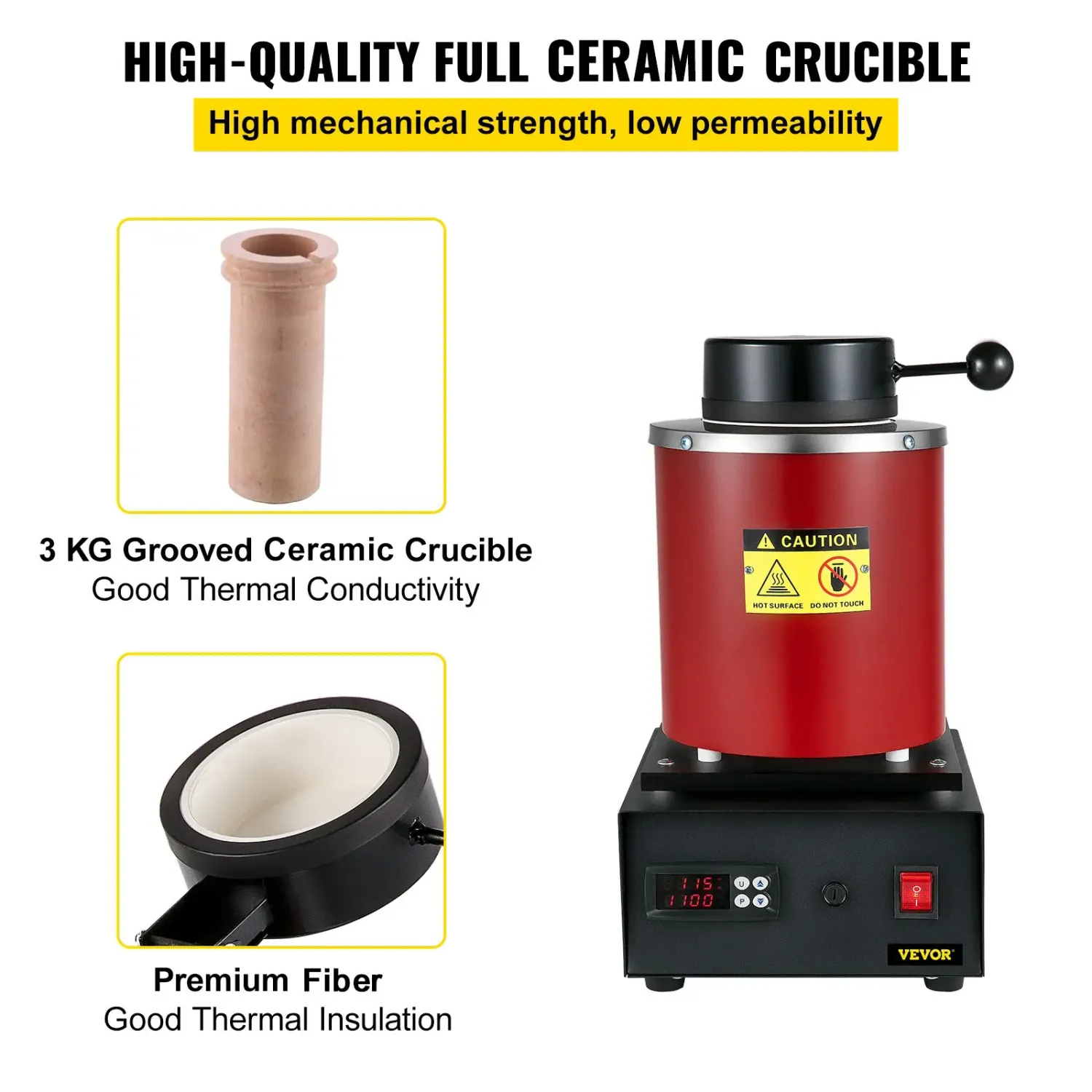

The furnace features a 3kg ceramic crucible and high-temperature ceramic chamber designed to retain heat effectively. The ceramic crucible provides good thermal conductivity and includes a grooved design to help make filling and pouring more controlled. The furnace can reach its maximum temperature of approximately 1150°C within 45 minutes, depending on operating conditions.

Temperature management is handled by an integrated digital PID control system and K-type thermocouple. The system monitors the heating temperature at regular intervals and provides precise control, with a stated heating measurement accuracy of ±1°C.

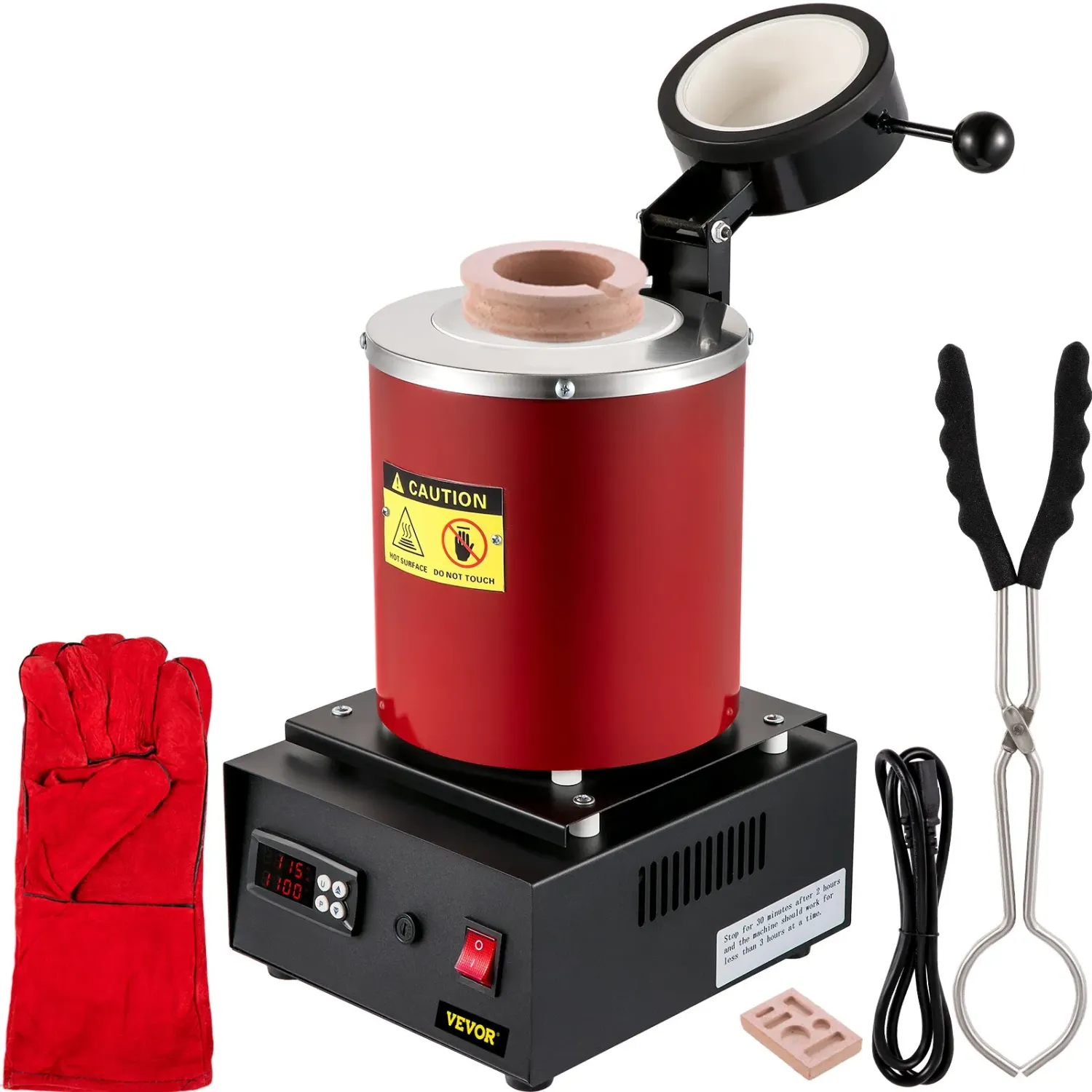

This complete melting furnace kit includes the main furnace, 3kg ceramic crucible, ingot die, crucible tongs and high-temperature gloves, providing the essential components for convenient operation. The compact design makes it suitable for workshops and other appropriate high-temperature metal-processing environments.

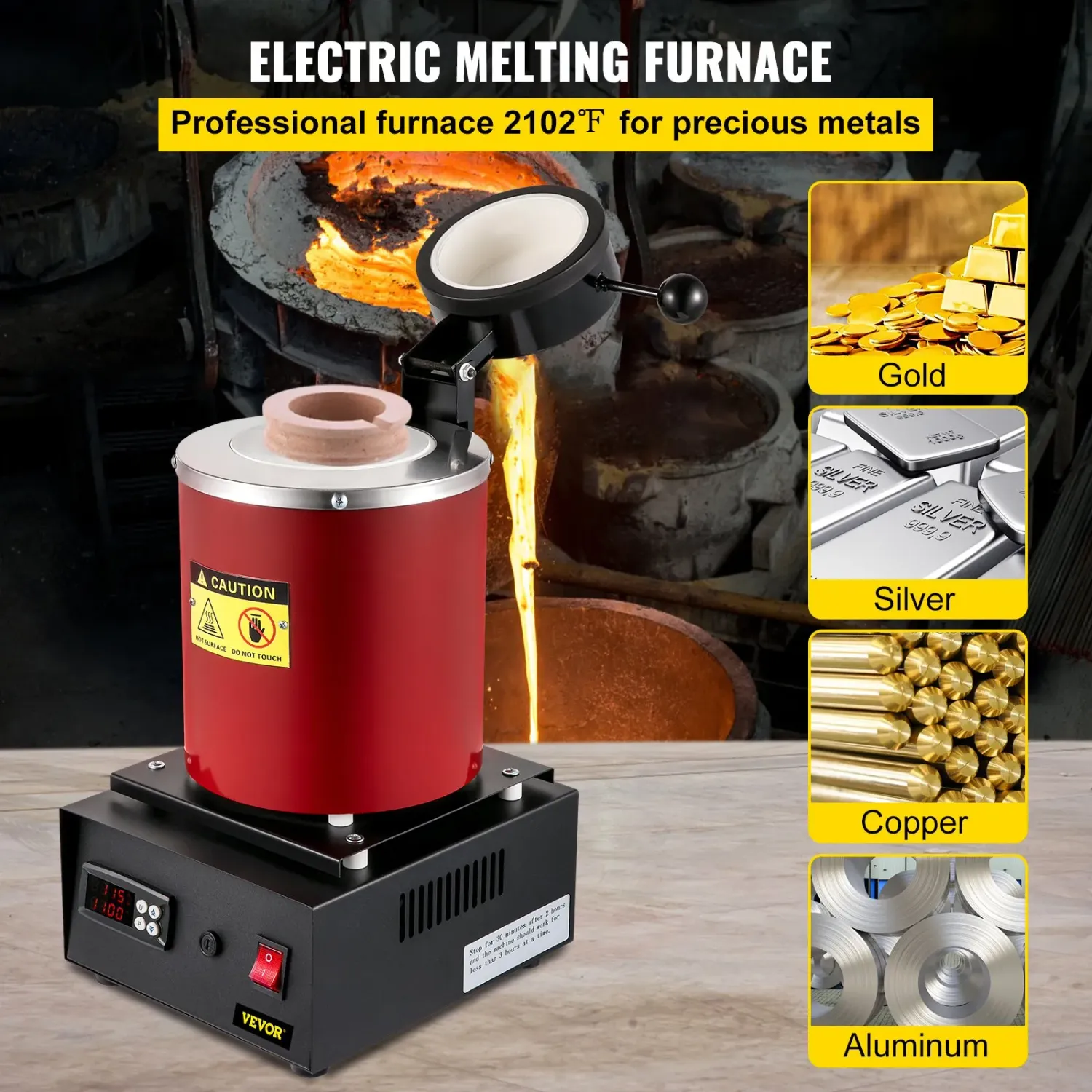

The furnace can be used for suitable applications involving gold, silver, copper, aluminium and other compatible metals, provided the material's melting temperature and the furnace's operating specifications are appropriate.

Features

• 3KG Melting Capacity – Includes a ceramic crucible with a capacity of up to 3kg for suitable metal-melting applications.
• 1150°C Maximum Temperature – High-temperature heating suitable for processing metals within the furnace's rated temperature range.
• 1350W Heating Power – Provides efficient electric heating for controlled metal-melting applications.
• Digital PID Temperature Control – Allows precise adjustment and monitoring of the furnace temperature.
• K-Type Thermocouple – Provides continuous temperature measurement for improved heating control.
• ±1°C Measuring Accuracy – Designed for accurate monitoring across the specified heating range.
• Ceramic Crucible – High-temperature ceramic construction provides effective heat transfer and durability during suitable applications.
• Complete Melting Kit – Includes the furnace, crucible, ingot die, tongs, power cable and high-temperature gloves.
• Wide Metal Applications – Suitable for appropriate processing of metals such as gold, silver, copper and aluminium when their melting temperatures are within the furnace's capabilities.

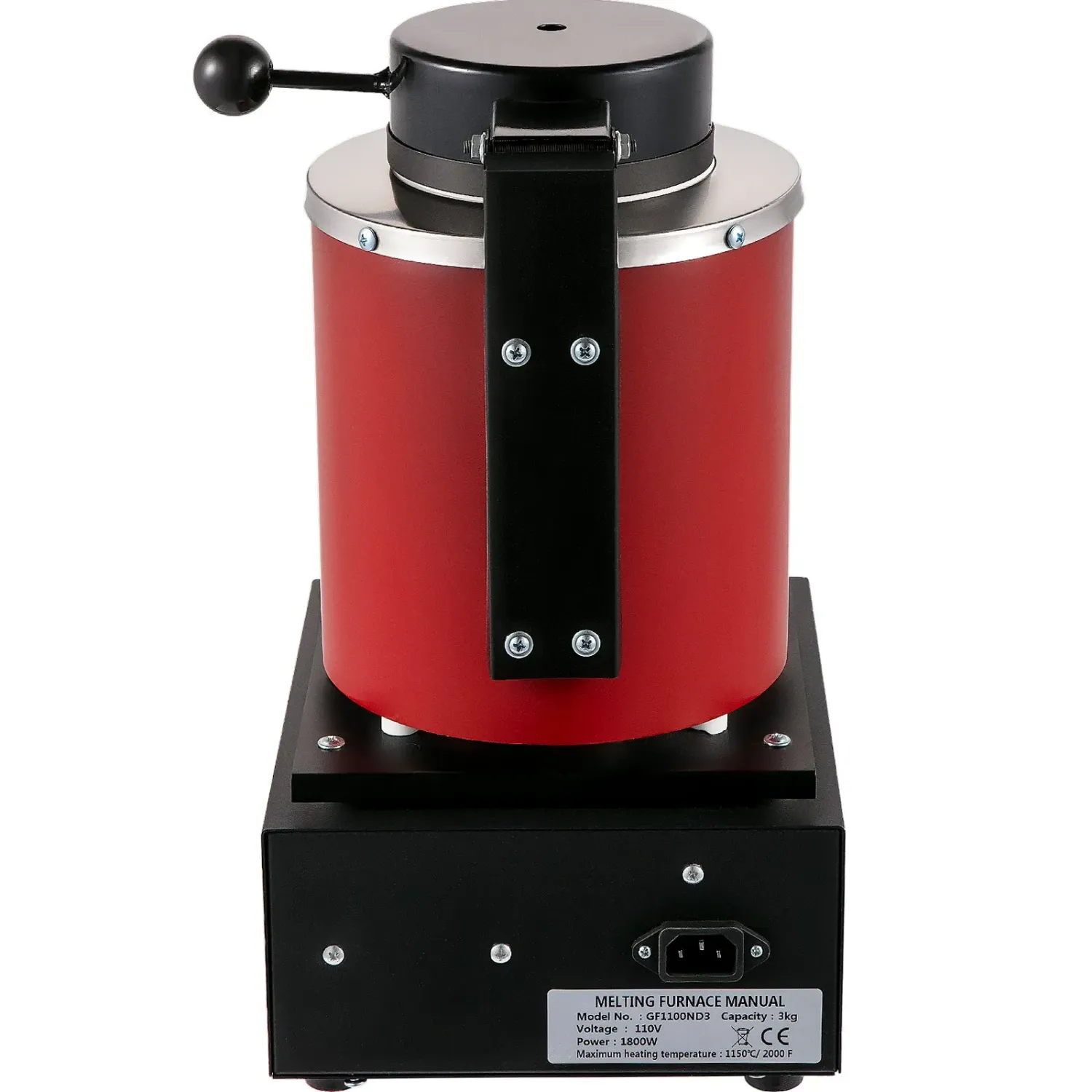

Product Specifications

• Product Type: Electric Metal Melting Furnace
• Model: GF1100ND3-3KG
• Power Input: 1350W
• Maximum Temperature: 1150°C / 2102°F
• Crucible Capacity: 3kg / 6.6lb
• Temperature Measuring Accuracy: ±1°C
• Crucible Material: Ceramic
• Crucible Internal Dimensions: 5 × 16cm (Diameter × Height)
• Temperature Control: Digital PID
• Temperature Sensor: K-Type Thermocouple
• Heating Time: Approximately 45 minutes to reach 1150°C, depending on conditions
• Suitable Materials: Gold, silver, copper, aluminium and other compatible metals

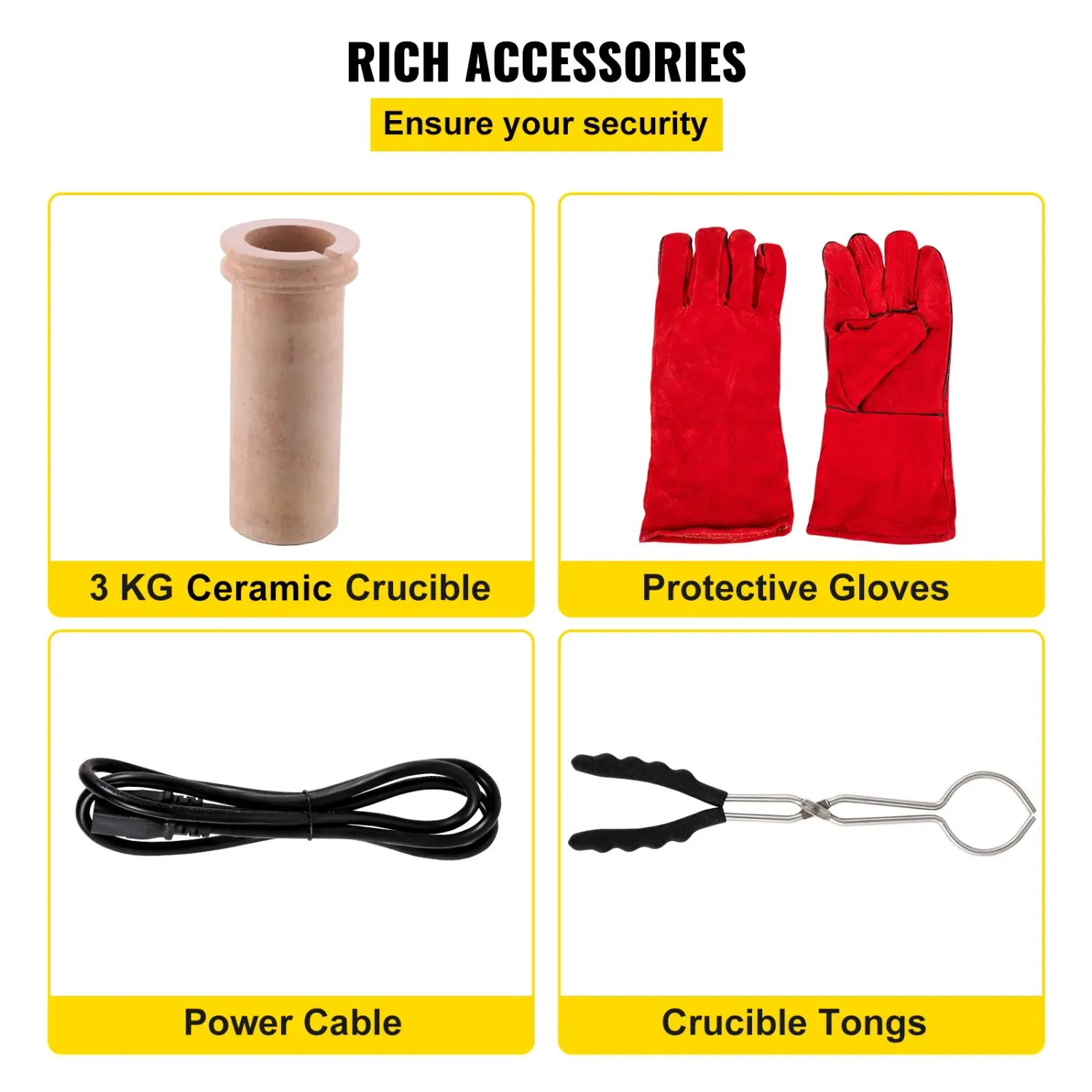

Package Includes

• 1 × Electric Metal Melting Furnace
• 1 × 3KG Ceramic Crucible
• 1 × Ingot Die
• 1 × Crucible Tongs
• 1 × Power Cable
• 1 × High-Temperature Gloves
