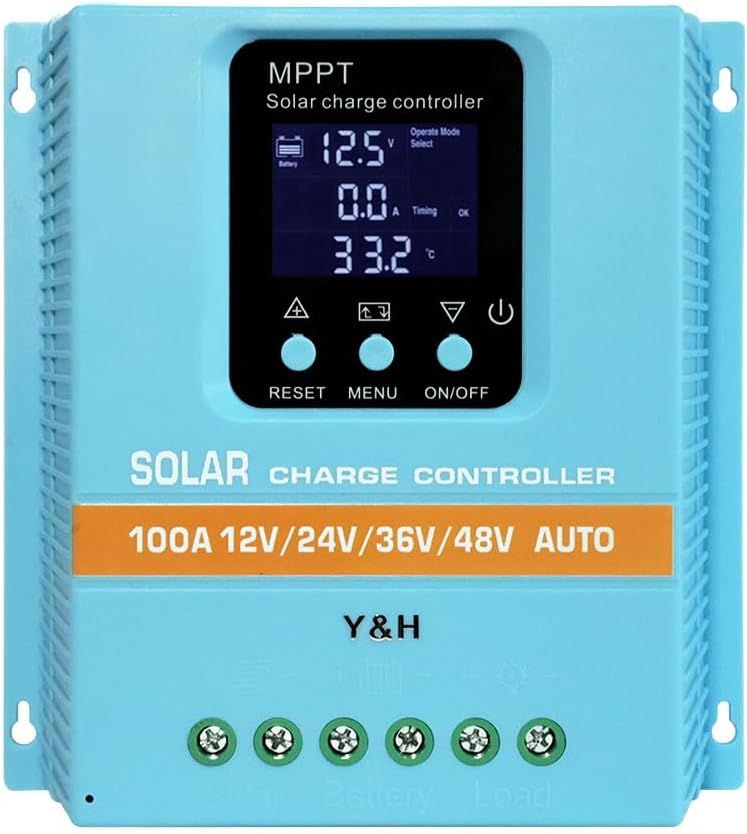

Improve your solar power system efficiency with this 100A MPPT solar charge controller, designed for 12V, 24V, 36V, and 48V battery systems. Using advanced MPPT technology, it automatically tracks the maximum power point of solar panels to improve charging performance and energy utilisation.

Featuring an LCD display, multiple charging modes, and support for different battery types including lead-acid and lithium batteries, this controller is suitable for off-grid solar systems, RVs, boats, cabins, and home solar applications.

Features:

• Advanced MPPT charging technology with up to 99.5% tracking efficiency
• Supports 12V / 24V / 36V / 48V solar battery systems
• Maximum charging current: 100A
• Compatible with sealed, gel, flooded, and LiFePO4 batteries

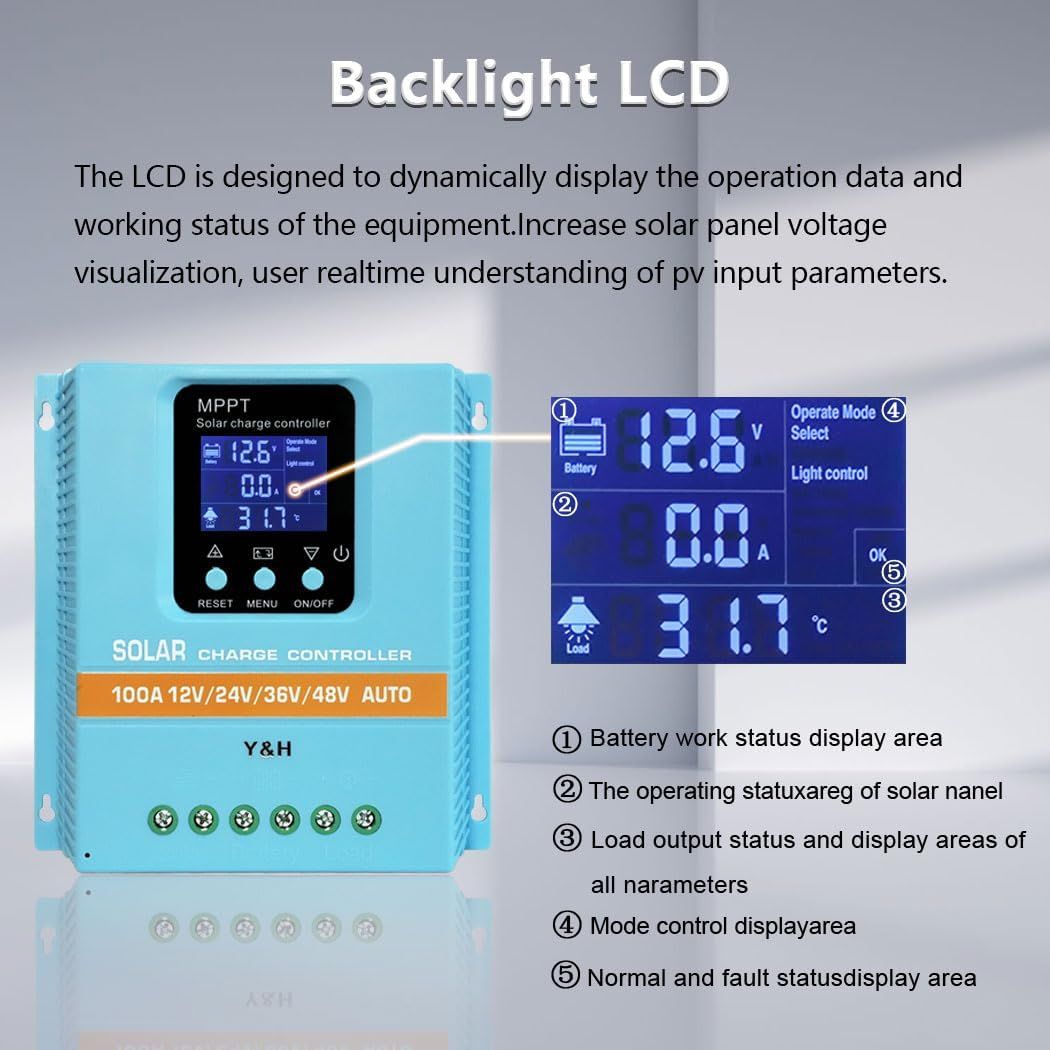

• Built-in LCD display with backlight for easy monitoring
• Displays battery voltage, charging current, solar voltage, temperature, operating mode, and more
• 7 selectable working modes for different applications
• Dual USB 5V charging ports for convenient device charging
• Intelligent protection system for safer operation

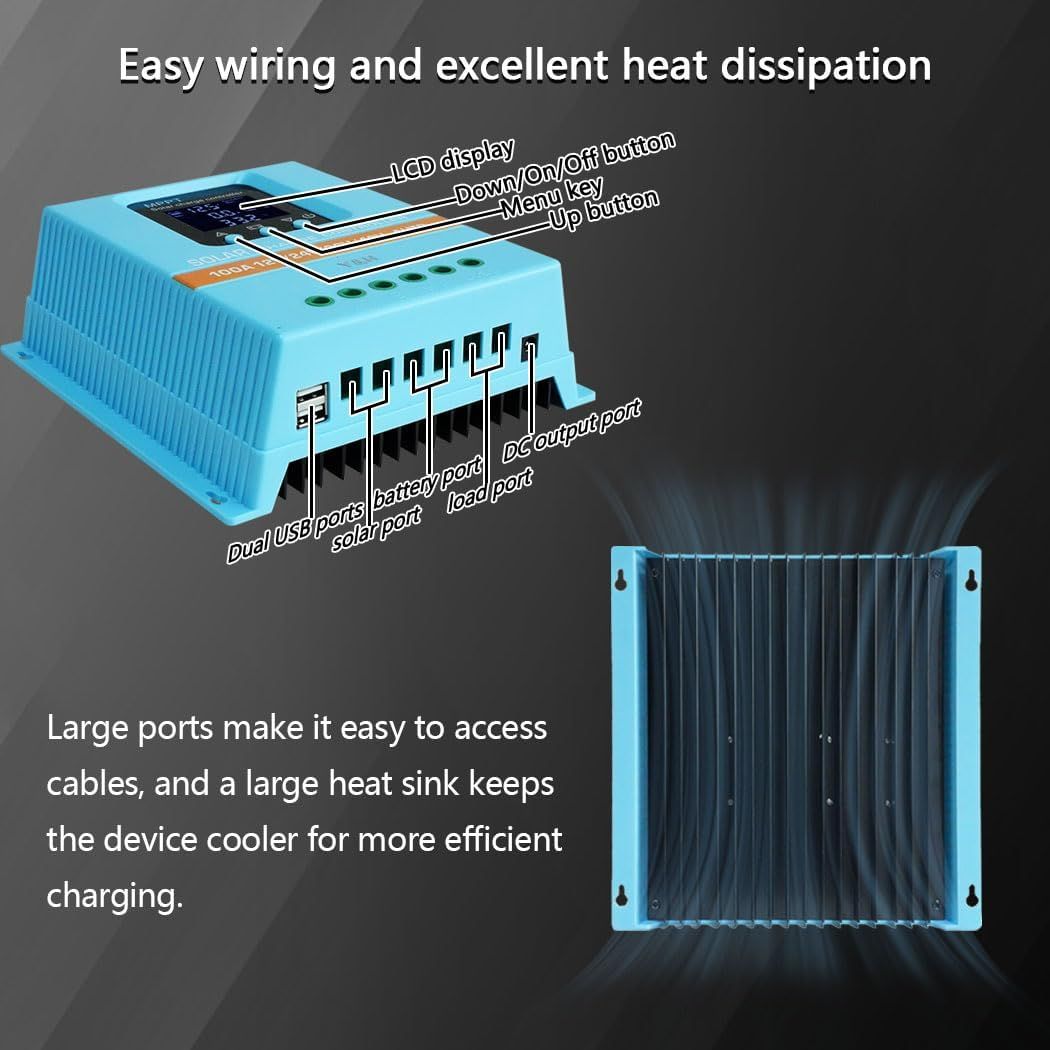

• Metal housing for improved durability and heat dissipation

Specifications:

• Product Type: MPPT Solar Charge Controller
• Maximum Current: 100A
• System Voltage: 12V / 24V / 36V / 48V Automatic Recognition
• Maximum Solar Input Voltage: 100V
• Charging Technology: MPPT
• USB Output: Dual 5V USB Ports
• Battery Compatibility: Lead-Acid & Lithium (LiFePO4)
• Display: LCD with Backlight
• Material: Metal
• Colour: Royal Blue
• Dimensions: 20.4 × 20 × 7.3 cm

Working Modes:

• Charging Mode
• Light Control Mode
• Light Control + Delay Mode
• Universal Control Mode
• Manual Control Mode
• Timing Control Mode
• Additional programmable settings

Package Includes:

• 1 × 100A MPPT Solar Charge Controller
• 1 × User Manual
• 1 × Installation Accessories Set
